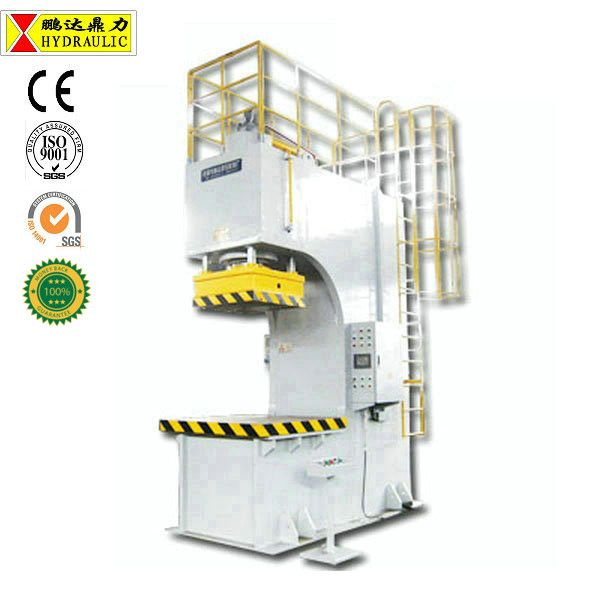

Pengda C Frame Hydraulic Press Feature
Characteristics:
1. C Frame high strength structure design with three sides open for easy material loading and product unloading as well as easy connecting with other corollary equipment.
2. Attractive and neat appearance, with driving system inside the fame.
3. Manual directional control valve is adopted in hydraulic system for easy speed regulation.
4. Handle operation or pedal operation at operators choice.
5. Stroke and pressure can be adusted within specificed scope.
Application:
Straightening process for shaft parts and profiled bar; press-in process for shaft and sleeve parts; drawing, benidng, coining, forming and stamping processes for sheet parts; forming process for powder and plastic prodcts, etc.
Main Technical Parameters
|
Type |
unit |
|
40T |
63T |
100T |
160T |
200T |
250T |
315T |
||
|
Nominal force |
KN |
|
400 |
630 |
1000 |
1600 |
2000 |
2500 |
3150 |
||
|
Maximum working pressure of the fluid |
MPa |
|
22.6 |
24.7 |
26.3 |
26 |
25 |
26 |
25 |
||
|
Maximum opening |
mm |
A |
700 |
800 |
800 |
900 |
900 |
900 |
900 |
||
|
Maximum stroke of the slider |
mm |
B |
400 |
500 |
500 |
500 |
500 |
500 |
500 |
||
|
Slider speed |
down |
Mm/s |
|
33 |
37 |
40 |
24 |
19 |
20 |
15 |
|
|
return |
Mm/s |
|
73 |
72 |
120 |
93 |
80 |
76 |
55 |
||
|
Throat depth |
mm |
C |
|
||||||||
