Pipe making machine

详情

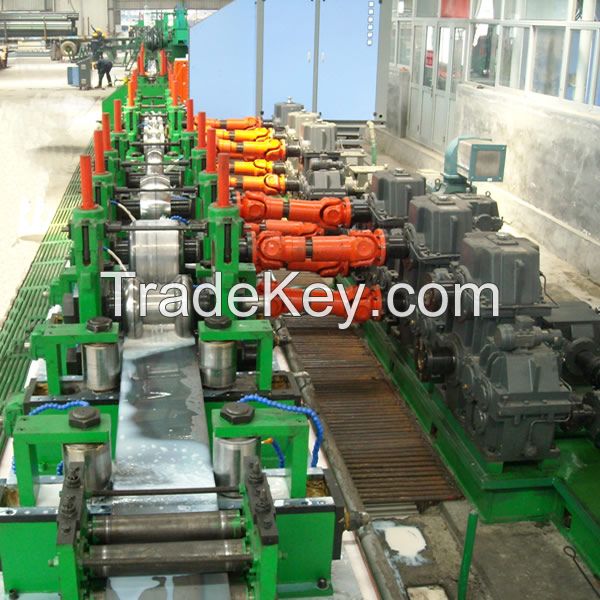

The Φ**7 Pipe making machine is designed by FF type or cage forming or rolling type forming method to manufacture round, rectangular and square tube from cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths.
Composition(Used Tube Mill, Top Tubing Mill Process)
Raw materials - uncoiler →coil peeler and leveler→shear and welder →horizontal accumulator →forming and sizing mill → high frequency welder→ cutoff machine →run-out table→collector
Specification(Used Tube Mill, Top Tubing Mill Process):
Raw material: Q**5, Q**5, Q**5
Round pipe OD: φ*8mm~φ**7mm
Round pipe thickness: 1.0mm~4.0mm
Rectangular hollow pipe:*5×*0mm~*0×**0mm
Square hollow pipe size:□*0mm~□**0mm
Rectangular and square pipe thickness: 0.8~3.*5mm
Mill Speed: *0 ~ *0m/min
Motor: **0kW×2
Solid state H.F.: **0KW
Forming and sizing mill:
1. Forming Machine
2. Roller System of Forming
3. Seam Guide
4. High Frequency Induction Welding Machine
5. Roller System for Moving
6. Burr Removing Frame
7. Water Cooling System
8. Sizing Machine
9. Roller System of Leveling
*0. Speed Testing Wheel
*1. Turkish Frame
