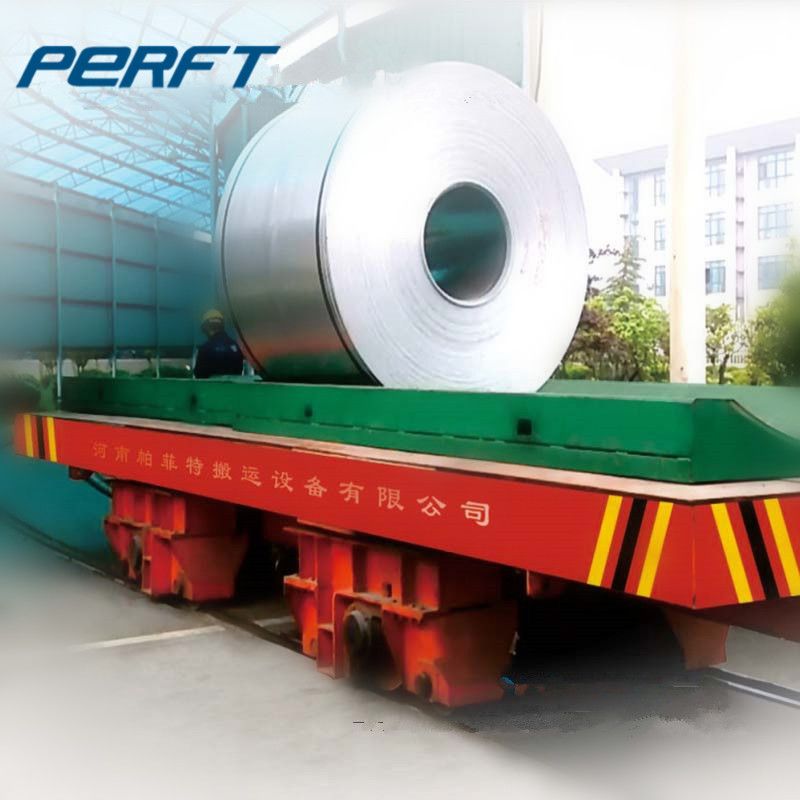

â��30 ton electric battery operated four wheel Coil Transfer Trolley for aluminium steel coils transportation

离岸价格

获取最新报价

4000 ~ 8000 USD / Set ( Negotiable )

1 Set Minimum Order

国家:

China

型号:

离岸价格:

4000 ~ 8000 USD / Set ( Negotiable )（面議）获取最新报价

位置:

Henan xinxiang,China

最小订单价格:

4000 per Set

最小订单:

1 Set

包装细节:

Packing with tarp and wooden case

交货时间:

Shipped in 30 days after payment

供应能力:

50 Set per Month

付款方式:

T/T, L/C

產品組 :

Coil transfer trolley

现在联系

Henan Perfect Handling Equipment Co., Ltd

China

1333 信任点

联系人 Ms. yolanda

Rm. 701, Internet Building, Northwest of Crossing Of Jinsui Road and Xinzhong Road Xinxiang, China,, Xinxiang, Henan

现在联系

产品规格

Product Name:30 ton electric battery operated four wheel Coil Transfer Tr
Type:Coil Transfer Trolley
Ground Clearance(mm):50-75
Motor Power:1-15
Wheel Base(mm):1200-7000
Wheel Quantity:4

详情

30 ton electric battery operated four wheel Coil Transfer Trolley for aluminium steel coils transportation

The 30 ton electric battery operated four wheel Coil Transfer Trolley for aluminium steel coils transportation This powered 30 ton electric battery operated four wheel Coil Transfer Trolley are used to handle any type of load, also very big and heavy, on a run time constrained.The 30 ton electric battery operated four wheel Coil Transfer Trolley is a represent, therefore, the best solution in case of regular production cycle.Further, the cost of the 30 ton electric battery operated four wheel Coil Transfer Trolley, for the same dimensions and capacity load, 30 ton electric battery operated four wheel Coil Transfer Trolley is lower than tired self-propelled trailers which must dispose of steering systems and greater powers.

Advantage and functions of the 30 ton electric battery operated four wheel Coil Transfer Trolley for aluminium steel coils transportation

The Coil Transfer Trolley running stable and durable;
The Coil Transfer Trolley has the advantages of Stable start, big starting power, small impact on the gear reducer, low voltage, and long lifetime;
With Safe device of Automatic stop ;
So Flexible that can spin around 360 degrees;
Running distance of the Coil Transfer Trolley is Unlimited;
The Coil Transfer Trolley has no strict requirement for the construction of the railway
The Coil Transfer Trolley can running on the straight railways or on the S and arc-shaped railways;

Main Componences of the 30 ton electric battery operated four wheel Coil Transfer Trolley for aluminium steel coils transportation

30 ton electric battery operated four wheel Coil Transfer Trolley for aluminium steel coils transportation

Technical Table of the 30 ton electric battery operated four wheel Coil Transfer Trolley for aluminium steel coils transportation

Model		2t	20t	50t	100t	150t
Rated Load(t)		2	20	50	100	150
Table Size(mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Heigth(H)	450	550	650	900	1200
Wheel Base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	2000	2000
Wheel Diameter(mm)		270	350	500	600	600
Wheel Quantity		4	4	4	4	8
Ground Clearance(mm)		50	50	50	75	75
Running Speed(min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		1	2.2	5	10	15
Running time When Full Load		4.32	4	3.3	3.2	2.9
Running Distance for Once Charge(KM)		6.5	4.8	4	3.8	3.2
Reference Weight(t)		2.8	5.9	8	14.6	26.8
Recommended Rail Model		P15	P24	P43	QU100	QU100
Max Wheel Load(KN)		14.4	77.7	174	343.8	265.2
Battery Voltage(v)		24	48	48	72	72
Battery Capacity(Ah)		180	180	330	440	600

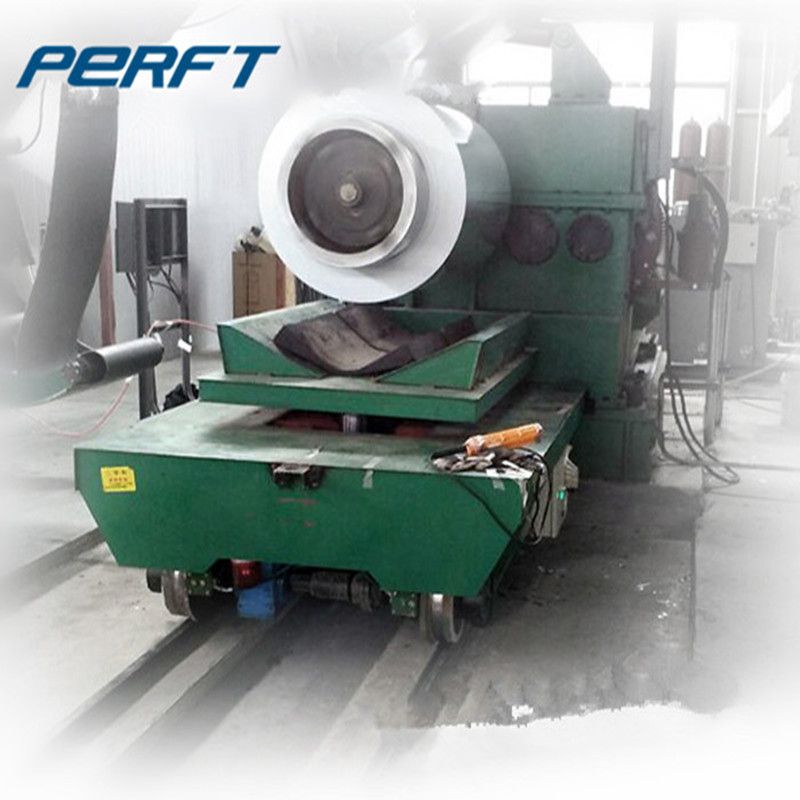

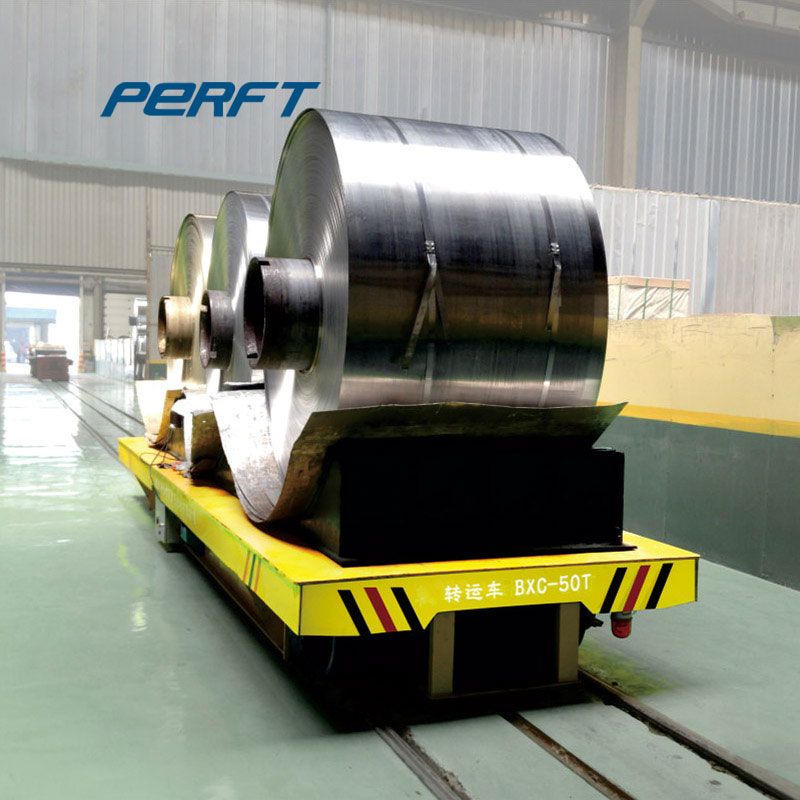

Application and Usage of the 30 ton electric battery operated four wheel Coil Transfer Trolley for aluminium steel coils transportation

30 ton electric battery operated four wheel Coil Transfer Trolley for aluminium steel coils transportation
