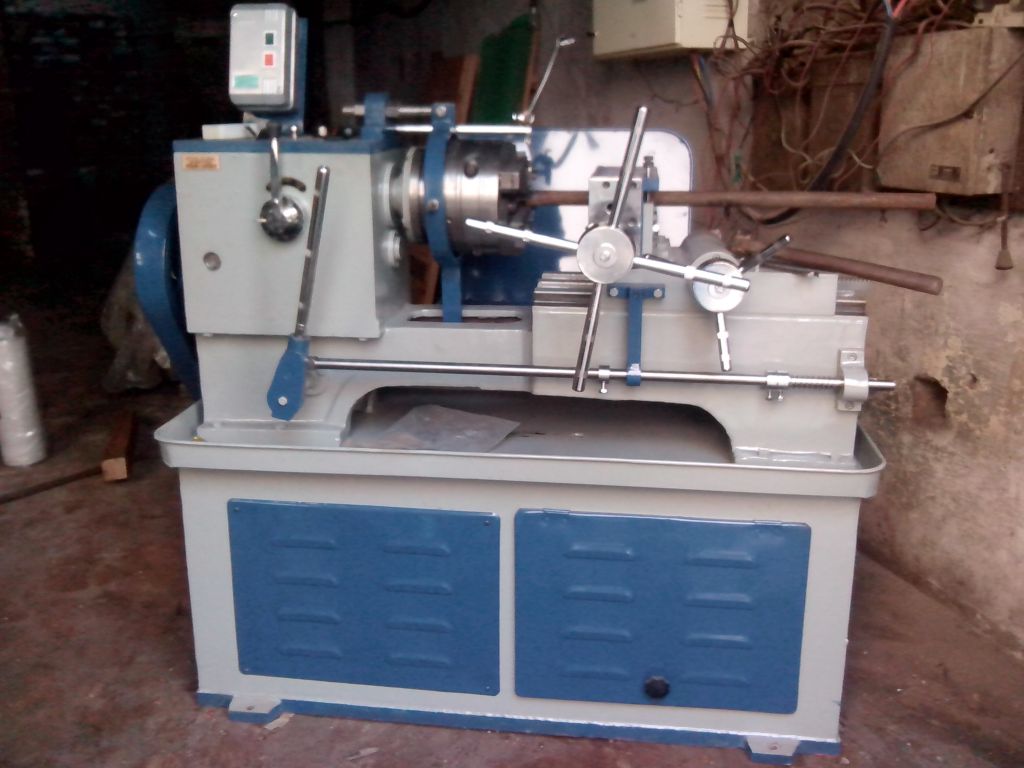

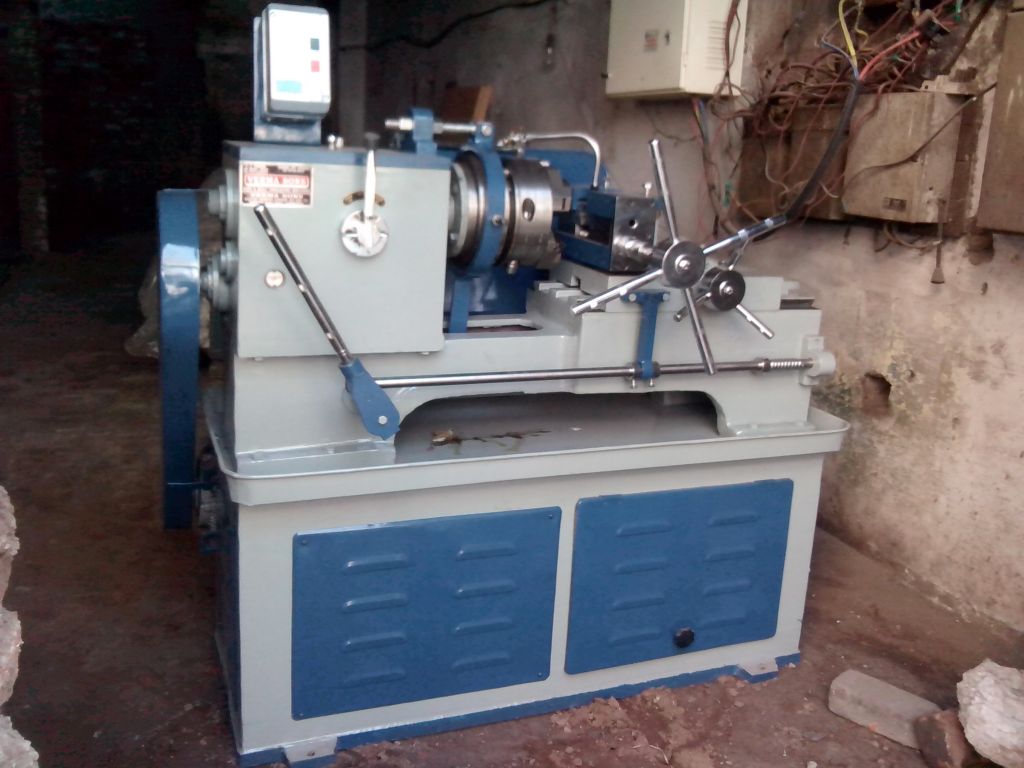

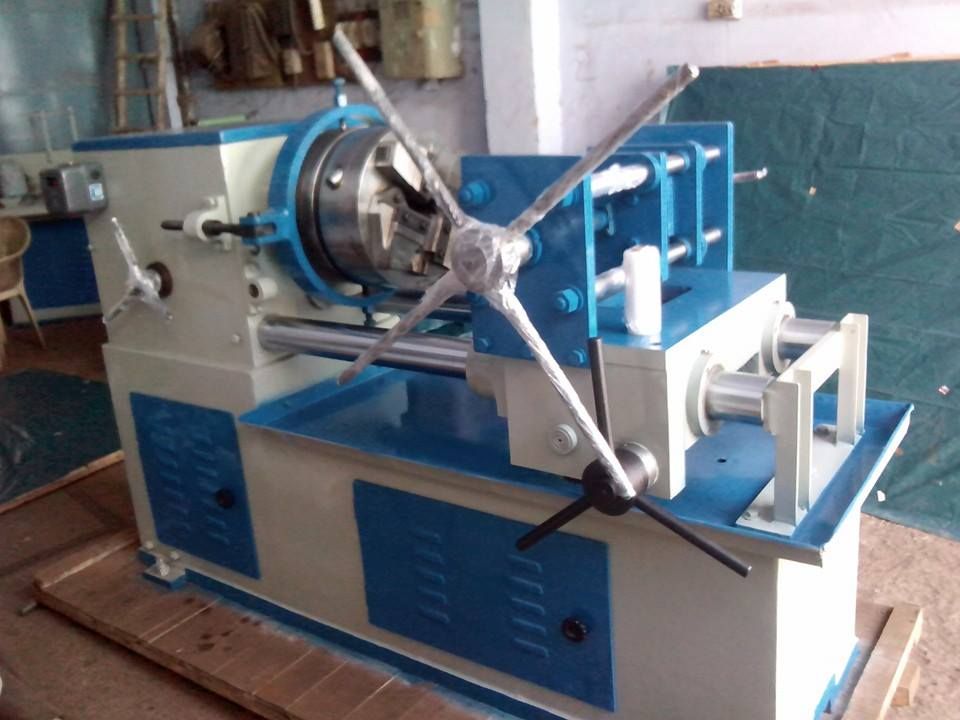

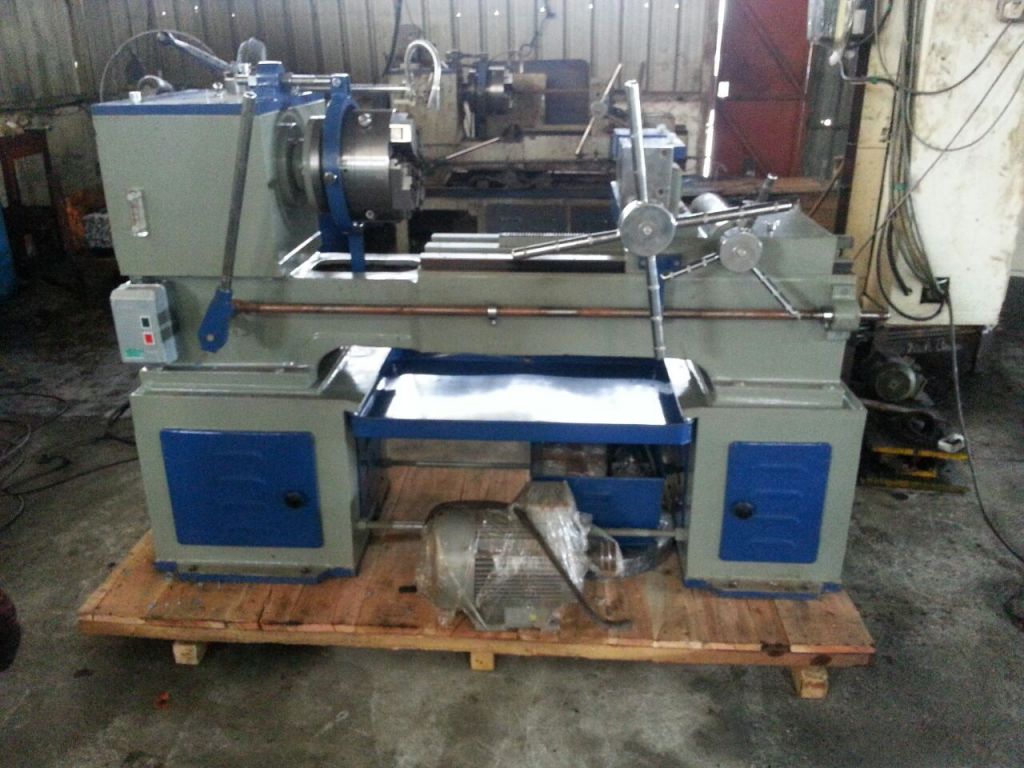

Pipe Threading Machine

离岸价格

获取最新报价

( Negotiable )

1 Unit Minimum Order

国家:

India

型号:

M63

离岸价格:

( Negotiable )（面議）获取最新报价

位置:

india

最小订单价格:

最小订单:

1 Unit

包装细节:

wooden box

交货时间:

15 to 20 days

供应能力:

5 Unit per Month

付款方式:

T/T, L/C

產品組 :

现在联系

True Works Machinery & Tools

India

免费会员

联系人 Raju

现在联系

产品规格

White & Blue:Blue

详情

Pipe Threading Machine is used for Cutting External Thread on component by Chasing method. HSS Tangential Chasers are used as cutters. Component remains stationery and Die Head rotates. Matric, BSP, BSPT, NPT, UNF,UNC, BSW, Acme Threads B.S.F etc. threads can be cut on this machine depending upon the type of Chasers. The machine mainly consists the following:-

Base
Head-Stock
Saddle
Bed Or Pillar Type Clamping Vice
Die-Head
BAR THREADING MACHINES are designed to give maximum efficiency and reliable performance under the most severe conditions of service with minimum maintenance cost. All the necessary requirements are combined in this model to from the basic fundamentals of correct threading. All the gears are made of case hardened steel with extra large face with and tooth thickness and cut on hobbing machine for noiseless operation even at high speed. Naturally the are built with high standards of workmanship, material and quality so closely associated with COMPANY TRADITION.

DESIGN & WORKMANSHIP: The TRUE WORKS MACHINERY & TOOLS, thread cutting machines are designed to produce quality threads within the tolerance for which they were intended.

HEAD STOCK: A heavy duty geared Head Box is of best quality casting providing support to the spindle bearings. The box is of gear type, lubricated, fitted with three extra heavy duty bearings.

THE BED: The bed is pillar type having two pillars made of best quality steel nicely finished & duly hard chrome plated in the most modern hard chrome plating unit.

THE SADDLE: The Saddle is fitted on two pillars very precisely. It runs on pillars very smoothly and accurately to the Head Stock alignment.

THE APRON:The apron gives movement to the saddle with head transfer along with pillars through steel rack and pinion arrangements. It's all gears are made of best quality steel.

VICE JAWS: The vice jaws made from the best quality alloy steel are fitted on the saddle well aligned with the head stock center fitted in a heavy duty box type vice. The jaws are heat treated. The movements of jaws are controlled by a screw on the saddle.

Model	1/4" to 1" (Bed Type)	3/8" to 1.1/2" (Bed Type)	1/2" to 2.1/2" (Bed type)	1" to 4" (Pillar Type)
Saddle Movement	*0"	0" - 2"	2" - 6"	0" - 2"
Spindle Speed Range	****0	****0	********0	********5
Number of Spindle Speed	2	2	3	3
Capacity	1/4" to 1"	3/8" to 1.1/2"	1/2" to 2.1/2"	1" to 4"
Production per Hour	****0	****0	****0	****0
H.P. Required	3 H.P.	3 H.P.	7.5 H.P.	2.5 H.P. *0
Lead Screw	Optional	Optional	Optional	Provided
Weight (KG) Aprox.	**0	**0	**0	***0
