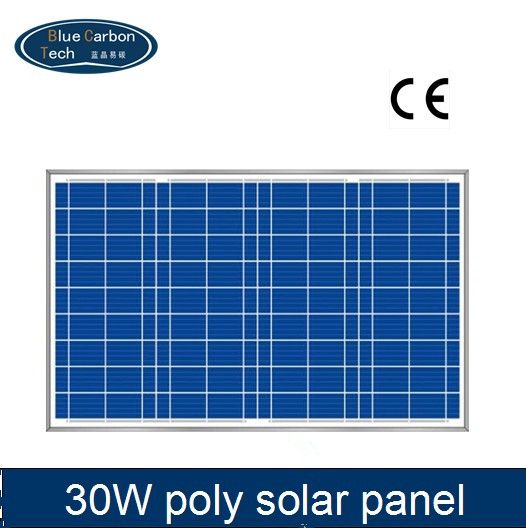

poly pv module 30w solar
panel
Specifications
|
Cell Type |
polycrystalline silicon |
|
No.of Cell & Connections |
36(4×9) |
|
Dimension(mm) |
670×377×35 |
|
Weight(KG) |
3.5 |
Applications
Electrical Characteristics
|
Model NO. |
BCT30-12 |
|
Maximum Power at STC(Pm) |
30W |
|
Open circuit voltage(Voc) |
21.6V |
|
Short circuit current(Isc) |
1.93A |
|
Voltage at Pmaxt (Vmp) |
17.2V |
|
Current at Pmaxt (Imp) |
1.74A |
|
(STC:Irradiance 1000W/m2,Module temperature 25°C, AM=1.5) |
|
Construction
|
Front |
High-transmission low-iron tempered glass |
|
Back |
TPT |
|
Encapsulant |
EVA |
|
Frame |
Aluminium |
|
Certification |
IEC,ISO |
|
Warranty |
25 Years module output warranty |
|
Packing method |
Carton, pallet,waterproofing membrane |
Temperature Coefficients
|
NOCT |
47±2°C |
|
Temperature Coefficient of Isc |
(0.065±0.015)%/°C |
|
Temperature Coefficient of Voc |
-(80±10)mV/°C |
|
Temperature Coefficient of Power |
-(0.5±0.05)%/°C |
|
Power tolerance |
±3% |
|
Maximum System Voltage |
600VDC |
|
Operating Temperature |
-40°C to 85°C |
| 国家: | China |
| 型号: | - |
| 离岸价格: | 0.5 ~ 0.7 / Watt 获取最新报价 |
| 位置: | - |
| 最小订单价格: | 0.5 per Watt |
| 最小订单: | 100 Piece |
| 包装细节: | cartons with pallet |
| 交货时间: | 15 days after deposit |
| 供应能力: | 100000 Kilowatt per Year |
| 付款方式: | T/T, L/C |
| 產品組 : | solar panel |
