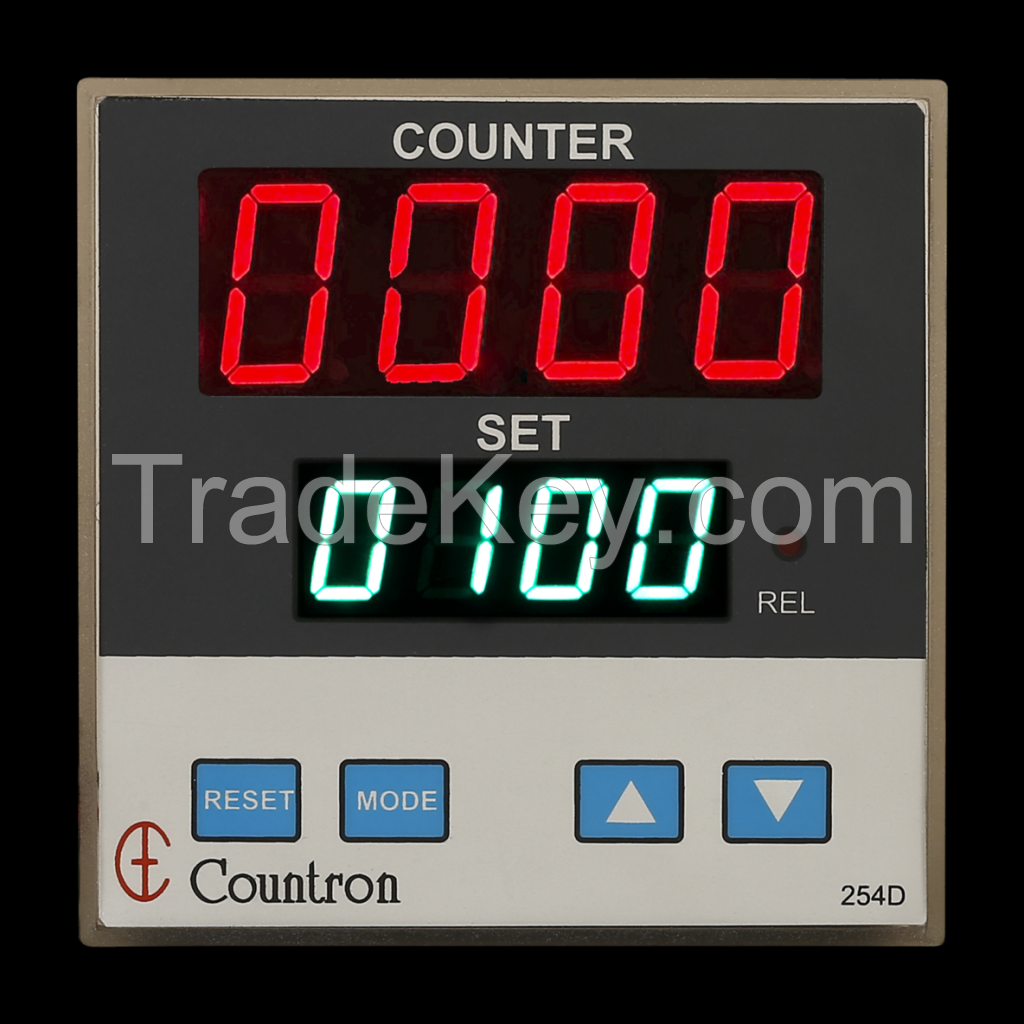

Model **4D
- CMOS/LSI Design For High Reliability & Accuracy.
- Auto & Single Cycle Operation.
- Counting by Contact, Pulse, Proximity & Photo Sensor
Input.
- *2V/*0 mA DC Output for Proximity Detector/Photo Sensor.
- Built-in Ni-Cd, Rechargeable Battery Backup if required.
Specification
Display : 4 Digit, 7 segment LED display (0.8 height) for
Count
4 Digit, 7 segment LED display (0.*6 height) for Limit
Range : Maximum Count of ***9
Set Points : Single set points programmable from *****9
Batch Limit : Batch limit setting from 0 to **9
Operating Modes : a. Auto Mode (Time Settable) b. Manual Mode
(Delay set to Zero)
Count Inputs : a. Voltage Pulse : 3V to *0V DC amplitude from
proximity switch
b. Potential free contact from
limit switch, relay or micro switch
Input Frequency : 0 to 1 KHz
Sensor Supply : *0V DC, short circuit protected
Multiplying Factor: Programmable from ***9
Division Factor : Programmable from 1 to *9
Reset Input : a. Front Panel b. Remote reset by rear
terminals
Relay Outputs : NO-Pole-NC contact rated at 5Amp @ **0 V AC
Memory Retention: *0 years
Configuration Lock: By Password
Mounting : Panel Mounting
Size : *6mm x *6mm. Depth *0mm
Weight : Approx. **5 gms.
Operating Temp. : ***0 ̊C
Humidity : *5% RH
|
Display
|
: 4 Digit(0.5 inch Char Height Red 7 Seg)
|
|
Range
|
: ***9
|
|
Size(Front Facia)
|
: *6 mm x *6 mm OR *2mm x *2 mm
|
|
Count Mode
|
: UP
|
|
Output
|
: 1 NO-P-NC Change over Contact 5A/**0V AC
|
|
Reset
|
: Push Button / Contact (Pulse Operation available against
Request)
|
|
Output Mode
|
: Auto Repetitive or Single Cycle
|
|
Power Supply
|
: **0 V AC +/- *0% or *2 V DC
|
|
Operating Temperature
|
: 0 - *0°C
|
|
Storage Temperature
|
: - *0 to + *0°C
|
