QFT4 block making machine/QFT4 block machine

Equipment feature and application

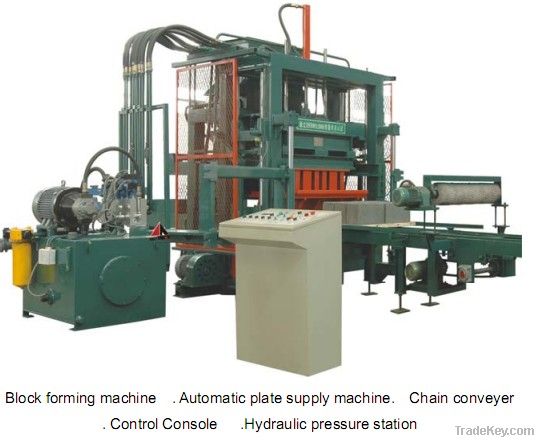

QFT4 block making machine system composed by block making machine, pallet feeding machine, Hydraulic Station and electrical control panel, it has automatic control for making block via machinery, hydraulic pressure, electrical systems.
Equipment controlled by PC, driven by hydraulic pressure, operation reliable, Steady performance, product has high strength, beautiful shape, size accurately etc.
This equipment can produce concrete block, fly ash block, slag block, coal gangue block etc.
It can produce different block, pave block and other block via change mold, fill some color paint when mix, it can produce various color block and different shape and color pave block can be produce via second material feeding system.


Main specification

Forming PCS                                         4pcs/time
Stand block size                                    **0×**0×**0(mm)(length×width×height)
Forming height                                       *0—**0(mm)
Pallet size                                                **0×**0×*5(mm)
Vibration frequency                                *0HZ
Vibration power                                      4 kw×2
Hydraulic System pressure                  8 MPa
Hydraulic System max flow rate           **8 L/min
Production capacity（**0***0***0mm）    **0—**0pcs/h
Total power                                              *8 kw



For the production capacity:
QFT4 block making machine can produce 4pcs blocks (**0***0***0mm) each time, it works three times in one minute, the output in 8 hours is about ***0 pcs(4pcs*3times**0 minutes*8 hours).
Similarly, for **0***0***0mm , the output of QFT4 block machine in 8 hours is about ****0pcs (7pcs*3times**0 minutes*8 hours), for **0***0***0mm , the output of QFT4 block machine in 8 hours is about ***0pcs (5pcs*3times**0 minutes*8 hours), for wave type block mode, the output of QFT4 block machine in 8 hours is about ****0pcs (*2pcs*3times**0 minutes*8 hours),   for Octagon type block mode, the output of QFT4 block machine in 8 hours is about ****0pcs (8pcs*3times**0 minutes*8 hours) ,if you want to produce other different size of brick, you only need to change the mould.  For more information , please send your demand to our mailbox: *@********************v>

Feature
1) This is a kind of specialized equipment for production of concrete blocks. It can produce various wall blocks and paving blocks by replacing different molds.
2) Raw materials such as gravel, river sand, tailings, coal gangue, fly fish, slag, and volcanic ash can are extensively used to produce all kinds of blocks.
3) It is designed in reasonable structure and adopted with advanced technology. The machine is equipped with powerful vibrating motor on the upper mold and with dual-axis synchronous mechanical vibration box on its lower mold, and the axes make machine vibrate oriented-vertically.
4) Blocks produced by this model are in average intensity and in high strength.
5) Block raw materials are of environmental protection.
6) The machine is easy to operate and flexible and molds are conveniently replaced without strict technical training, and its performance is comparable with the large-scale equipment.
7) All blocks produced by the machine can be cured naturally and it helps you save energy.
8) Simple production line can help you reduce operators and its ideal equipment for small factories. and can use different moulds to produce various blocks & bricks.
9) This is the cheapest equipment for concrete blocks which is ideal for small amount of investment.
*0) The blocks can be stacked Immediately.
*1) Low noise, superior steel as raw materials and long service time.

Superiority of the Model:

Low noise, save power.

Got professional design structure and advanced technology
Blocks produced are of good quality, high density and high strength

All the raw materials of the machine are National Standard.

Various solid, hollow, curbstone & paving blocks in sizes, shapes can be produced by replacing matched moulds.
Full automatic block making machine.Technical superiority: Adopt the most advanced computer-controlled technology

Productivity: *0% higher productivity than the similar products

Operating characteristics: Be easy and flexible to operate, and be easy to load and unload the moulds, and can use different moulds to produce various blocks & bricks.

国家:	China
型号:	QFT4 block making machine/QFT4 block machine
离岸价格:	40000 ~ 227000 / Unit （面議） 获取最新报价
位置:	xi'an city ,Shaanxi Province,China
最小订单价格:	40000 per Unit
最小订单:	1 Unit
包装细节:	-
交货时间:	6 weeks
供应能力:	-
付款方式:	T/T, L/C, PayPal
產品組 :	Block machine
