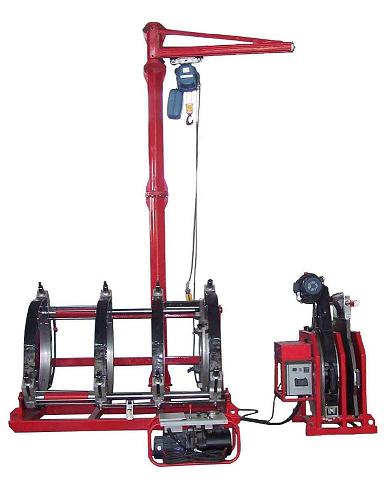

SHD1200 field butt fusion welding machine

详情

Application and features:
*Suitable for butt welding of plastic pipes and/or fittings made of PE, PP, PVDF and PPR in worksite or workshop.
*Consists of basic frame, hydraulic unit, planing tool, separate heating plate, support for planing tool&heating plate.
*Removable PTFE coated heating plate with high accurate temperature control system.
*Electric planing tool with safety limit switch enables to start it only when it is locked in operation position.
*Made of lightweight and high strength material. Specially designed with a clamp opening angle of *5 degrees.
*Low starting pressure and high reliable seal structure.
*Changeable welding position brings more convenience while welding various fittings.
*Separate two-channel timer records times in soaking and cooling phases.
*High-accurate and shockproof pressure meter indicates clearer readings.
*Labor saving and high efficient crane is available to lift planing tool and heating plate.

Optional parts:
*Stub end device for flange stub.
*Data logger.

Technical parameters:
Type: SHD***0
Pipe size (mm): **0, **0, **0, **0, ***0, ***0
Heating plate max. temp.: **0 oC
Temp. deviation in surface (******0 oC): ≤�7 oC
Pressure adjustable ranges: 0~*5 MPa
Working voltage: **0V, *0Hz
Heating plate power: *0 KW
Planing tool power: 2.2 KW
Hydraulic unit power: 3.0 KW
Crane power: 1 KW
Total power: *6.2 KW
Total weight: ***3 KGS

Packing list
1. Basic frame: ***0X***0X***0
2. Support: ***0X***0X***0
3. Hydraulic unit: **0X**0X**0
4. Electric crane: **0X**0X**0
5. Crane pillar: ***0X**0X**0
