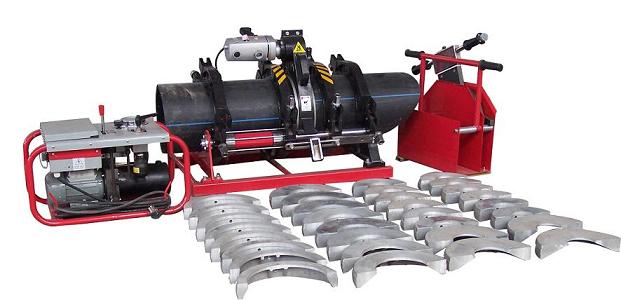

SHD315/90 HDPE pipe welding machine

详情

Application and features:
*Suitable for butt welding of plastic pipes and/or fittings made of PE, PP and PVDF in worksite or workshop.
*Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool&heating plate, and optional parts.
*Removable PTFE coated heating plate with high accurate temperature control system.
*Electrical planing tool.
*Be made of lightweight and high strength material; Simple structure, small and delicate, user friendly.
*Low starting pressure ensures reliable welding quality of small pipes.
*Changeable welding position enables to weld various fittings more easily.
*Separate two-channel timer records time in soaking and cooling phases.
*High-accurate and shockproof pressure meter indicates clearer readings.

Optional parts:
*Stub end device for flange stub.
*Data logger.

Technical parameters:
Type: SHD**5
Pipe size (mm):*0, **0, **5, **0, **0, **0, **0, **5, **0, **0, **5
Heating plate max. temp.: **0 oC
Temp. deviation in surface (**0~**0oC): ≤�7 oC
Pressure adjustable ranges: 0~6.3 MPa
Working voltage: **0V, *0Hz
Heating plate power: 3.1 KW
Planing tool power: 1.1 KW
Hydraulic unit power: 0.*5 KW
Total power: 4.*5 KW
Total weight: **6 KGS
