SMALL SIZE TFT LCD MODULE

国家:

China

型号:

SAT-630-BZ035D-PO-N

离岸价格:

9 ~ 28 / Piece ( Negotiable ) （面議）获取最新报价

位置:

最小订单价格:

9 per Piece

最小订单:

1000 Piece

包装细节:

carton

交货时间:

Within one week after received the payment

供应能力:

6000 Piece per Day

付款方式:

T/T

產品組 :

现在联系

产品规格

RGB : RED&GREEN&BLUE

详情

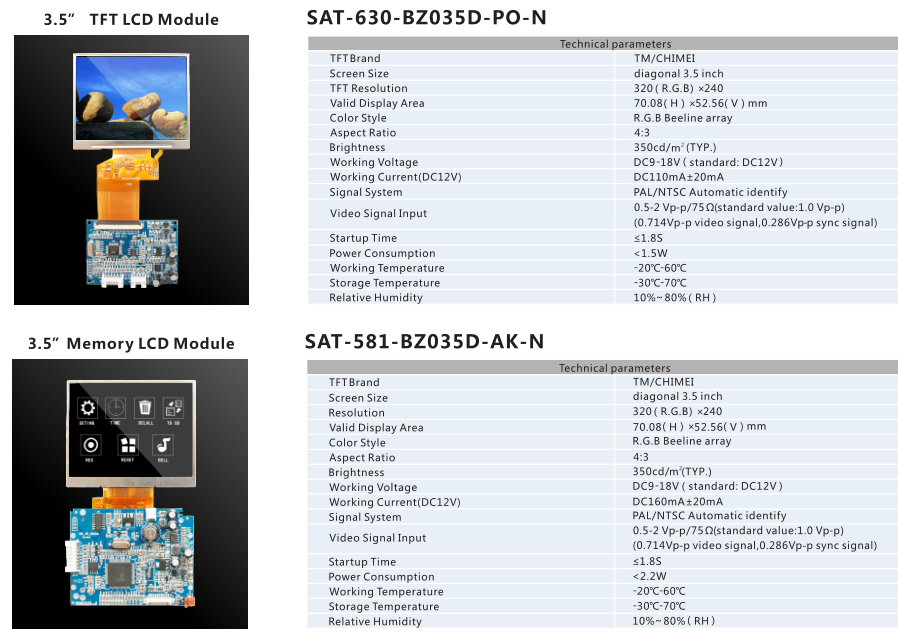

3.5 inch module:SAT-630-BZ035D-PO-N
TFT Brand:TM/CMO;
Screen Size:Diagonal 3.5 inch;
TFT resolution: 320(R.G.B)x240;
Active area :70.08(H) X 52.56(V) mm;
Outline dimensions:76.9(H) X 63.9(V) X 3.0(D) mm;
Color arrangement: RGB-stripe;
Interface: RGB/CCIR656/601;
Operation Temperature:-20 degree~ 70 degree;
Storage Temperature :-30 degree~80 degree;

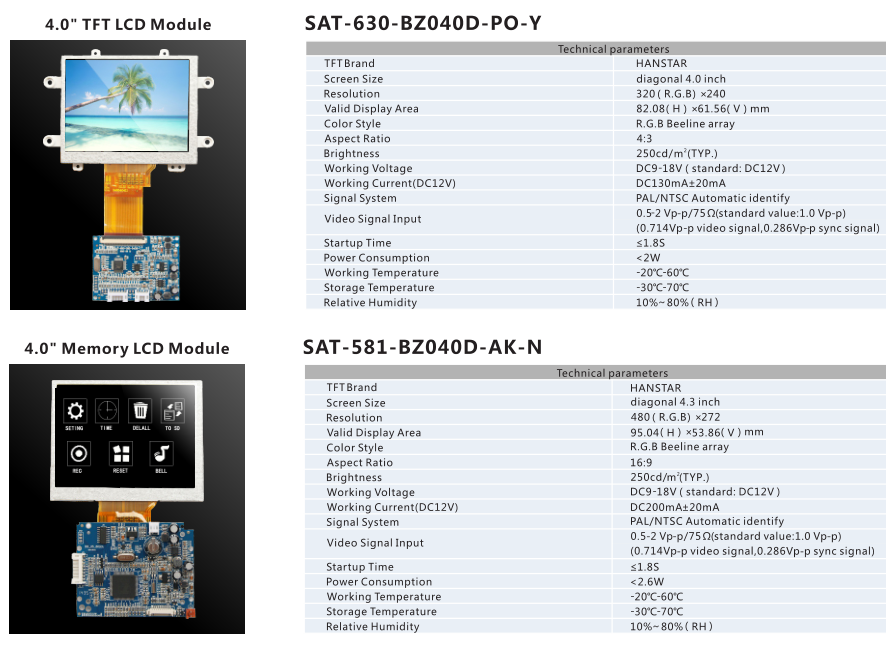

4 inch module:SAT-630-BZ040D-PO-Y
TFT Brand:HANSTAR;
Screen Size:Diagonal 4 inch;
TFT resolution: 320(R.G.B)x240;
Active area :82.08(H) X 61.56(V) mm;
Outline dimensions:96.0(H) X 76.0(V) X 3.2(D) mm;
Color arrangement: RGB-stripe;
Interface: RGB/CCIR656/601;
Operation Temperature:-60 degree~ 60degree;
Storage Temperature :-30 degree~70 degree;

4.3 inch OSD touch module:SAT-582-BZ043D-CC-N
TFT Brand: CMO/HANSTAR;
Screen Size:Diagonal 4.3 inch;
TFT resolution: 480(R.G.B)x272;
Active area :95.04(H) X 53.86(V) mm;
Outline dimensions:105.5(H) X 67.1(V) X 3.0(D) mm;
Color arrangement: RGB-stripe;
Interface: RGB/CCIR656/601;
Operation Temperature:-60 degree~ 60degree;
Storage Temperature :-30 degree~70 degree;

5 inch high resolution module:SAT-630-BZ050DH-PO-N
TFT Brand: Innolux;
Screen Size:Diagonal 5 inch;
TFT resolution: 800(R.G.B)x480;
Active area :108(W) X 3(RGB) X 64.8(H) mm;
Outline dimensions:120.7(H) X 76.3(V) X 3.0(D) mm;
Color arrangement: RGB-stripe;
Interface: RGB/CCIR656/601;
Operation Temperature:-60 degree~ 60degree;
Storage Temperature :-30 degree~70 degree;
