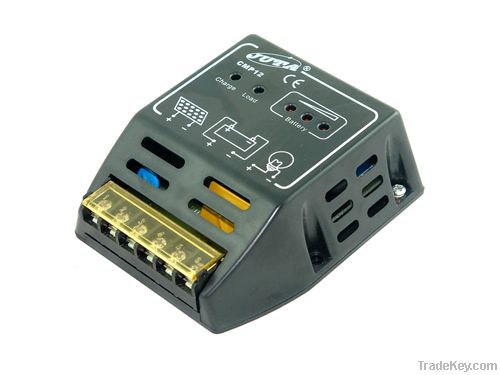

solar controller

离岸价格

获取最新报价

12 USD / Piece

200 Piece Minimum Order

国家:

China

型号:

SC-12A

离岸价格:

12 USD / Piece （面議）获取最新报价

位置:

China

最小订单价格:

12 per Piece

最小订单:

200 Piece

包装细节:

48pcs/ctns

交货时间:

20 Days

供应能力:

100 Piece per Day

付款方式:

T/T, L/C

產品組 :

Solar controller

现在联系

Shine Industry Co., Ltd

China

免费会员

联系人 Richard

No.202 jiefang Road, Ningbo, Zhejiang

现在联系

产品规格

详情

Connection：

according to indication in the picture：

1. Connect“+” and “-” poles of battery with the correct ports on the Controller (the third and fourth wires from the left).

2. Connect “+” and “-”poles of solar panels with the correct ports on the controller (the first and second wires from the left).

3. Connect “+” and “-” poles of load with the correct ports on the controller (the fifth and sixth wires from the left).

Indicator light：

1. Three red LEDs. They indicate the voltage of battery. It indicates the voltage enough that three red LEDs are all illumining,and the voltage not enough that there is only one red light LEDs illumining.

2. One green LED. The battery is strongly charged when this light is illumining, the battery is floatingly charged when this LED is flickering, and the battery has stopped charging when the LED unlighted.

3. The voltage of battery is little low when one red LEDs or two red LEDs are illumining, maybe the load can’t naturally work. But when the voltage of battery reaches *2.6v, the load will be allowed automatically to start work.

Attention：

1. Please check the rated voltage of solar panels, battery, and load before connection.

Their rated voltage should be *2v.

2. Pay more attention to “+” and “-” poles of solar panels, battery, controller and loads during the process of connection.

3. The rated current of solar panels and loads are kept lower than the one of controller.

rated voltage	2 or 4V	Voltage of stop power supply	*0.8V or 1.6V
rated charging current	*2A	Voltage of resume power supply	*2.6V or 5.2V
Rated loading current	*2A	Voltage of stop charge	*4V or 8V
Working temperature	0 ~ 0℃	N.W.	**6g
Size（LWH）/PC	536mm	PCS/ CNT	*8

Function：

According to the voltage of battery, controller will adjust the charging current and decide if to supply power to the loads.

1. Generally keep the battery on full voltage condition.

2. Prevent the battery from over-charging.

3.Prevent the battery from over-discharging.

4. Prevent the battery from supplying power to solar panels during nights.
