Zhejiang Ganghang Solar Technology Co., Ltd

No. 741 Pong Xin Road ,Hangzhou,Zhejiang,China

查看电话号码

免费会员

Solar Panel

China

GH-0246

1.18 / Watt 获取最新报价

china

1.18 per Watt

1 Watt

2pcs per carton with inner carton each piece. 600pcs in one 40ft container

7 days

980000 Watt per Day

PayPal, D/P, D/A, L/C, T/T

-

现在联系

详情


1).180-185w mono Solar Panel
2).fit for on-grid solar system
3).CE and ISO approved
4).high efficiency
5).fit 24V battery

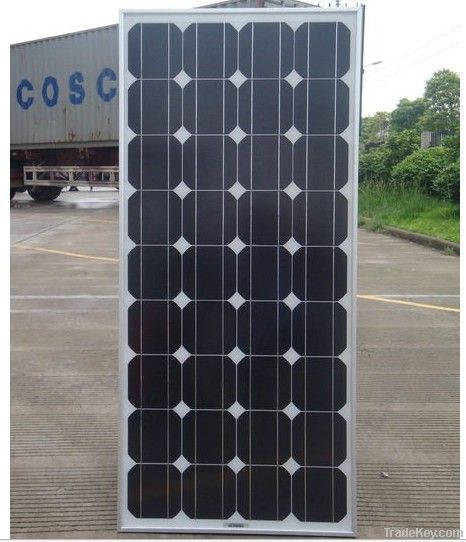

180-185W Monocrystalline Solar Panel





TEM NO            185/24V
MONO or POLY                   Mono
Maximum power (Wp)                  185wp
Maximum power voltage (V)  36.42
Maximum power current (A)  5.09
Open circuit voltage (V)  45.26
Short circuit current (A)  5.43
Number of cells (Pcs)  72
Size of module (mm)  1580*808*40mm( 125x125mm cell)
Maximum system voltage (V)   1000
Temperature coefficients of Isc (%)  + 0.1/
Temperature coefficients of Voc (%) -0.38/
Temperature coefficients of Pm (%) -0.47/
Temperature coefficients of Im (%) +0.1/
Temperature coefficients of Vm (%) -0.38/
Temperature Range  -40~+80
Tolerance Wattage (e.g. +/-5%)                 +/-5%
Surface Maximum Load Capacity           60m/s(200kg/sq.m)
Allowable Hail Load  256g steel ball fall down from 1m height
Weight per piece (kg)  16
Junction Box Type  PV-RH0301( TUV )
Connectors and Cables Type
Length of Cables (mm)                 900mm
Cell Efficiency (%)                 16.8%
Module Efficiency (%)                 14.49%
Output tolerance (%)                 +/-5%
Frame (Material, Corners, etc.)                 Aluminum
Backing (Brand, type)
Standard Test Conditions AM1.5  100mW/cm2  25C
Warranty  2 years product warranty and 25 years 80% of power
FF (%)  73%
Packing 2PCS/CTN ,600PCS/300CTN/40 FCL
Packing Dimension 1630*855*140mm
