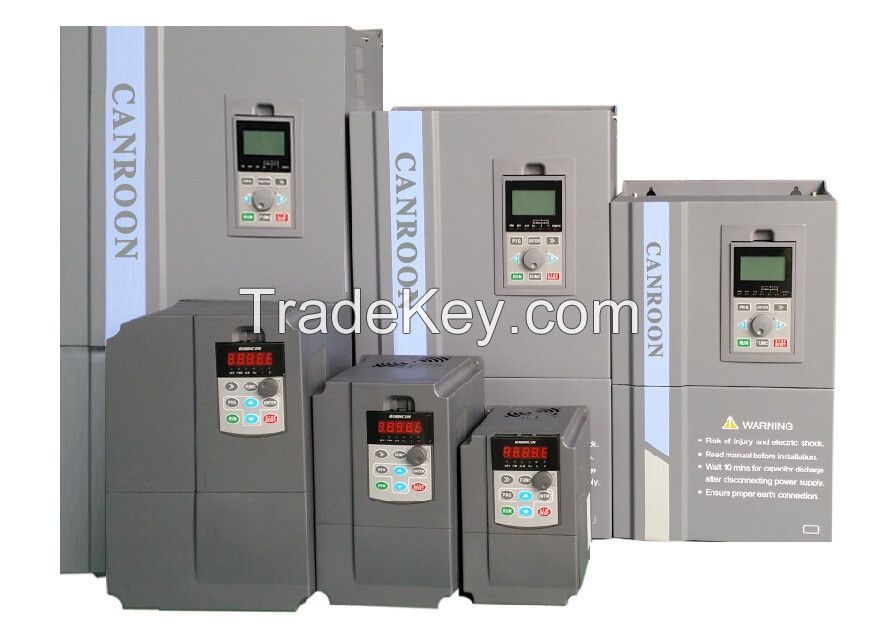

VFD Series Type
| Voltage Classes | Rated Power(KW) | Rated Output Current(A) | Adapted Motor(KW) |
| **0V *-phase | 0.*5 | 4.5 | 0.*5 |
| 1.5 | 7 | 1.5 | |
| 2.2 | *0 | 2.2 | |
| **0V *-phase | 0.*5 | 2.5 | 0.*5 |
| 1.5 | 3.7 | 1.5 | |
| 2.2 | 5.0 |
2.2 |
| Input | Rated Voltage, Frequency |
*-phase(4T#sereis)**0V;*0/*0HZ *-phase(2S#series)**0V;*0/*0HZ |
| Allowed Voltage Range |
*-phase(4T#series)**0V~**0V *-phase(2S#series)**0V~**0V |
|
| Output | Voltage |
4T#series; 0~**0V 2S#series; 0~**0V |
| frequency | Low frequency mode: 0~**0HZ ; High frequency mode: 0~***0HZ | |
| Overload Capacity |
G type: **0% for long-term, **0% for 1 min, **0% for 5s P type: **5% for long-term, **0% for 1 min, **0% for 1s |
|
| Control Mode | V/F control, advanced V/F control, V/F separation control, electric current vector control | |
| Control Character | Frequency Setting Resolution | Analog Input | 0.1% of maximum output frequency |
| Digital Setting | 0.*1 Hz | ||
| Frequency Precision | Analog Input | Within 0.2% of maximum output frequency | |
| Digital Setting | Within 0.*1% of set output frequency | ||
| V/F Control | V/F Curve (voltage frequency character) | Reference frequency setting 5~**0 Hz, multipoint V/F curve setting, or fixed curve of constant torque, low decreasing torque 1, low decreasing torque 2, square torque | |
| Torque Compensation |
Manual setting: 0.0~*0% of rated output Automatic compensation: according to output current and motor parameter |
||
| Automatic Current-limiting and Voltage-limiting | During acceleration, deceleration or steady running, detect automatically the current and voltage of motor stator, and control it within bounds based on unique algorithm, minimize fault-trip chance | ||
| Senseless Vector Control | Voltage Frequency Character | Adjust pressure/frequency ratio according to motor parameter and unique algorithm | |
| Torque Character |
Starting torque: 3.0 Hz **0% rated torque (VF control) 0.5 Hz **0% rated torque (SVC, FVC) 0.*5 Hz **0% rated torque (VC) Operating speed precision in steady state: ≤±0.5% rated synchronous speed Torque response: ≤*0ms VC, SVC, FVC ≤*0ms |
||
| Motor Parameter Self-measurement | Being able to detect parameter automatically under static state and dynamic state of motor, thus guarantee an optimum control. | ||
| Current and Voltage Restrain | Current closed-loop control, free from current impact, perfect restrain function of overcurrent and overvoltage | ||
| Undervoltage Restrain during Running | Specially for users with a low or unsteady voltage power grid: even lower than the allowable voltage range, the system can maintain the longest possible operating time based on its unique algorithm and residual energy allocation strategy | ||
|
PIDControl RS**5 Communication |
Built-in PID controller (able to preset frequency). Standard
configuration RS**5 communication function, multiple
communication protocol for choice, synchronizing control
function. |
| 国家: | China |
| 型号: | CV900 |
| 离岸价格: | 0.01 ~ 500 / Unit ( Negotiable ) 获取最新报价 |
| 位置: | - |
| 最小订单价格: | 0.01 per Unit |
| 最小订单: | 1 |
| 包装细节: | carton depends on you |
| 交货时间: | 2~20 days |
| 供应能力: | 500 Unit per Month |
| 付款方式: | T/T |
| 產品組 : | - |
