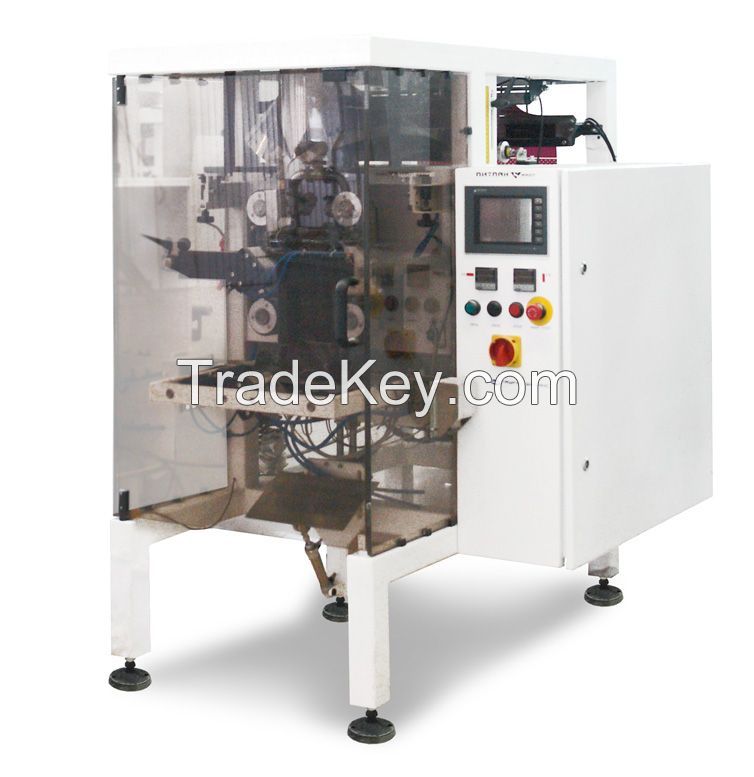

VFFS machine PITPACK Smart

详情

Products to be packaged:

сereals, salt, beans, sugar, macaroni, dragee, milk powder, starch, cacao powder, soda, candies, spicy cakes, frozen fruits and vegetables, dried crust, sea food, milk, ravioli, bath salt, dried fruit, detergents, etc.



Appointment:

The vertical filling& packaging automatic packaging machine Pitpack Smart is designed to package a wide range of dust, free-flowing, granulated, small-piece products (including frozen) food and non-food products in three-seamed bags, formed from heat shrink film in rolls.

Standard accessories:

• Bag forming unit
• Film pulling unit
• Longitudinal and cross sealing units
• Control system (fit to work with any filler)
• Date coder in a cross sealer
• Photo mark sensing unit (photo-cell)
• Film stopping by photo mark system
• Film unwinding device
• Seam blower

Options:

• Two-flow weigher
• Three-flow weigher
• Auger filler
• Feeding bucket conveyor
• Discharge belt conveyor
• Flat bottom forming unit
• Thermal printer
• Inert gas injection system
• Dust exhausting system
• Static charge killer
• Volumetric rotor filler (frictional or valve)
• Multi-head fillers MP 210 and MP 214
• Hole puncturing device EURO SLOT

Performance specification:
Kinematical capacity, max, pcs/min:	50
Bags sizes, max, mm:
length:	300
width:	200
flat bottom perimeter:	400
Longitudinal joint:	butt/overlapped
Film roll dimensions, max, mm:
diameter:	400
width:	420
Film roll weight, max, kg:	40
Working air pressure, MPa:	0.6
Air flow, l/min:	400
Power supply:	380 V; 3-ph; 50 Hz
Power consumption:	2 kW
Overall dimensions of the machine:
length:	1500 mm
width:	1090 mm
height:	1435 mm
Weight of machine, kg:	430
Types of packaging:
