Vision Measuring Machine

详情

Product Introduction:

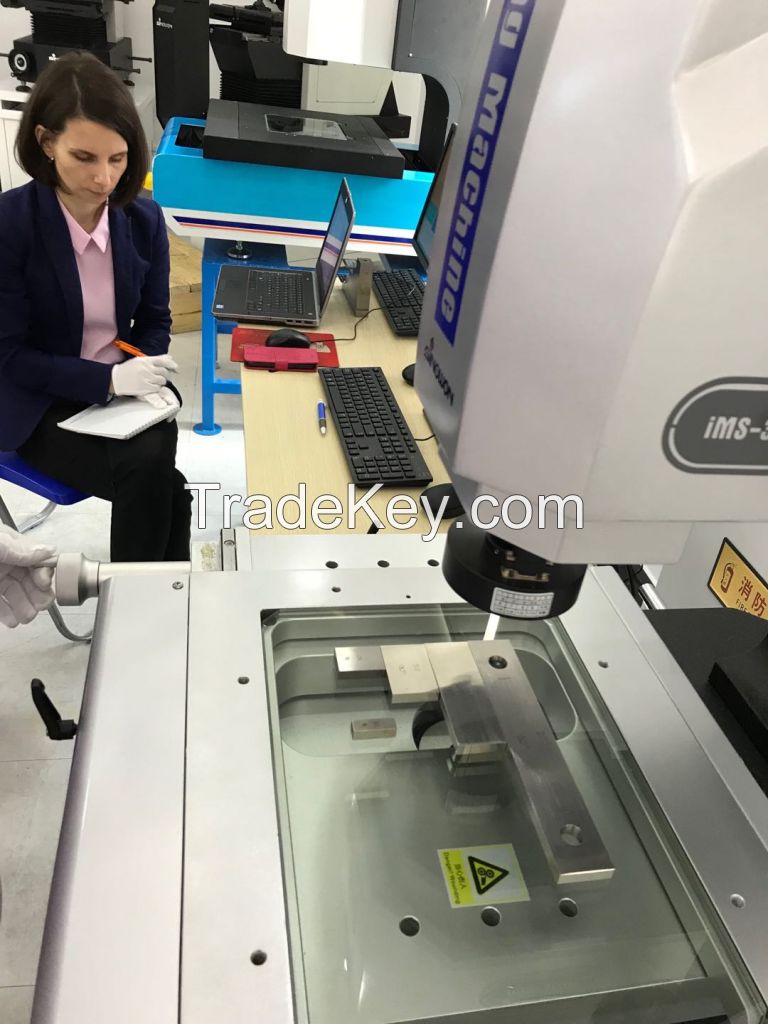

3D MVA is a classical Fully Auto Vision Measuring Machine, it is equipped with four-axis motorized control and auto zoom lens and probe, powerful function, simple operation, widely application.



Product Characteristics:


1. Four-axis CNC fully auto close loop control, auto measurement;
2. "*0" grade "JINANQING"marble base and pillar, stable and reliable;
3. Precision linear guide, grinding ball screw and AC servo motor, ensure accuracy stability of system  position;
4. High precision linear scale, resolution is 0.5um, high accuracy, great stability;
5. Imported high definition color industry digital camera, ensure clear observation and stable measurement requirement;

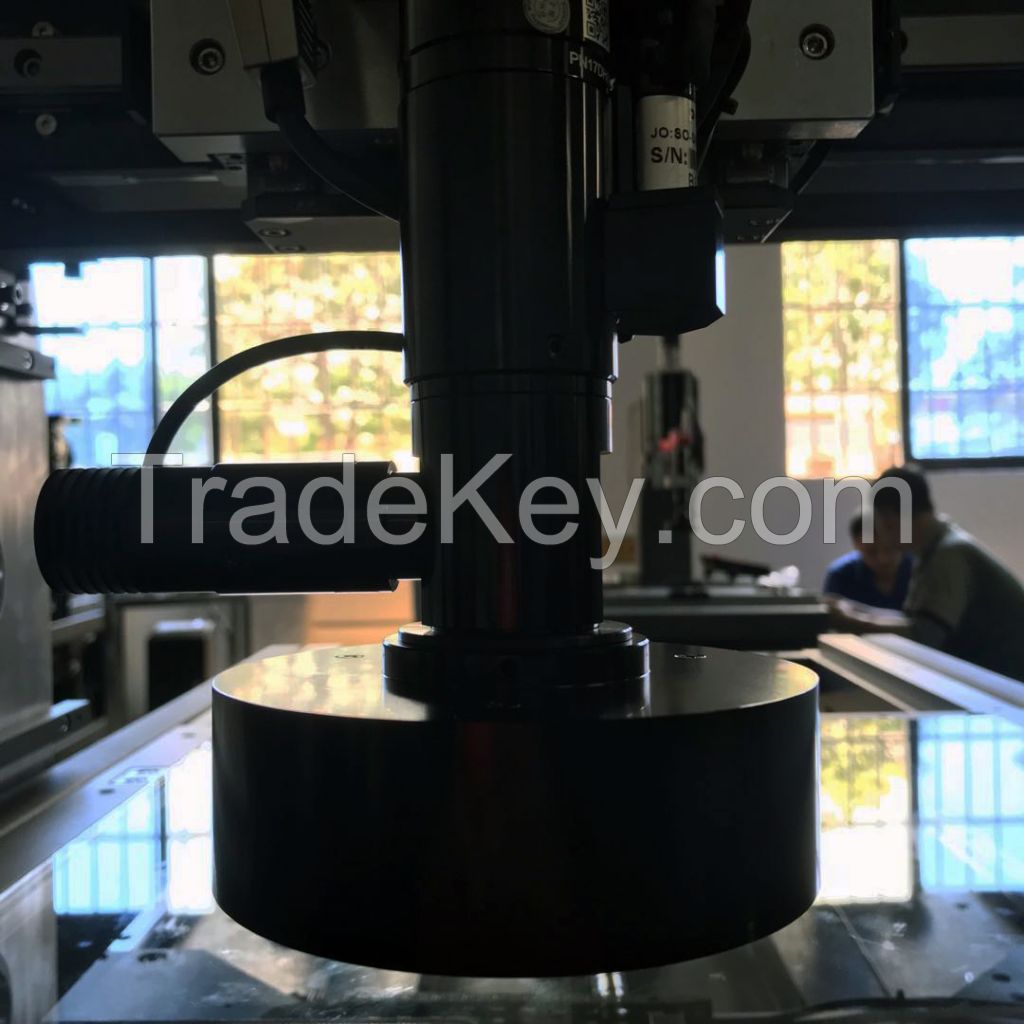

6. 6.5X continue auto zoom lens, precision auto zoom, only need to make pixel calibration once time;
7. Programmable *-ring *-division LED surface illumination, contour parallel LED illumination, can realize **6 grade brightness adjustment intelligently;
8. With proprietary powerful function fully auto measuring software iMeasuring 4.2;

1. With imported touch probe, realize 3D measurement;
2. Can set auto measurement, and finish batch measurement with high efficient;
3. Laser, coaxial illumination and other parts are optional;

1. Optional FexQMS Measuring Data Analysis and Real-time monitoring software which enhance program control and reduce material consumption.
