wire tracker and cable tester for RJ45 RJ11 BNC

China

NF-268

30 ~ 35 / Piece ( Negotiable ) 获取最新报价

SHN,CN

30 per Piece

30 Piece

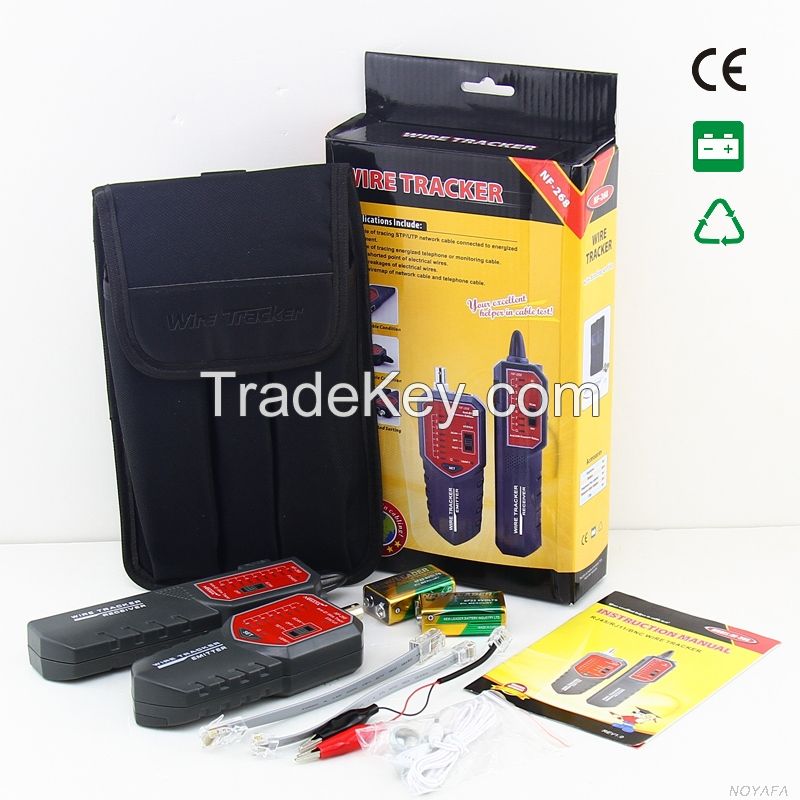

* Earphone x 1 set * Battery x 2 sets * Telephone line adapter x 1 set * Network cable adapter x 1 s

3-5 days after payment

20000 Piece per Month

PayPal, T/T

cable tester

现在联系

产品规格

Main Function : Test and Track Cables Other Function : Tone trace breakage poin Tracking Type  :  UTP/STP RJ45 (8P4C&Acir

详情

Item Specifics:
Is_customized : Yes
Brand Name : Noyafa
Model Number : NF-268
Place of Origin : Shenzhen.China
Main Function : Test and Track Cables
Tracking Type : UTP/STP RJ45 (8P4C 8P8C), RJ11, BNC
Other Function : LED Flash and Loud Speaker
Power : 9V Alkaline battery
Warranty : 1 Year

Features:
1. Quickly tracing & find  Lan/telephone/coax cable which is connected with switch or router.
2. Check wiremap of Lan cable  with receiver directly after it is found.
3. Tone tracing breakge points of Lan cables and metal lines.
4. Noise avoidable, working better against electromagnetic interference even connected to switch or router.
5. RJ45/RJ11/BNC and other ports are included and the complex switch is not required.
6. Endurable high pressure and self-protection ability.

Attention:
1.Don't connected high voltage lines to avoid buring out the machine.
2.Put into the right place to avoid hurting others,because of the sharp part.
3.Connected the cable to the right port.
4.Read the user manual before use it.

Standard carton:
Carton size: 51x33x51 cm
Quantity : 40pcs/ctn
Weight: 18 kg











NF-268 Transmitter specifications
 Tone frequency  200Hz
 Max. distance of transmission  More than 3 kilometers
 Max. working current  Less than 10mA
 Tone mode  2 Tones, adjustable
 Compatible connectors  RJ11, RJ45,BNC
 Max. signal voltage  8Vp-p
 Function and faults light display  Light display(Wiremap, tone,tracing)
 Voltage protection  AC 60V/DC 42V
 Battery Type  DC9.0VNEDA 1604/6F22 DC9V x 1pcs
 Dimension(LxWxD)  13x4x2cm
 NF-268 Receiver specifications
 Frequency  200kHz
 The Max. working current  Less than 30mA
 Earjack  1
 Battery Type  DC9.0VNEDA 1604/6F22 DC9V) x1pc
 Dimension(LxWxD)  10 x 5 x 2.3cm
