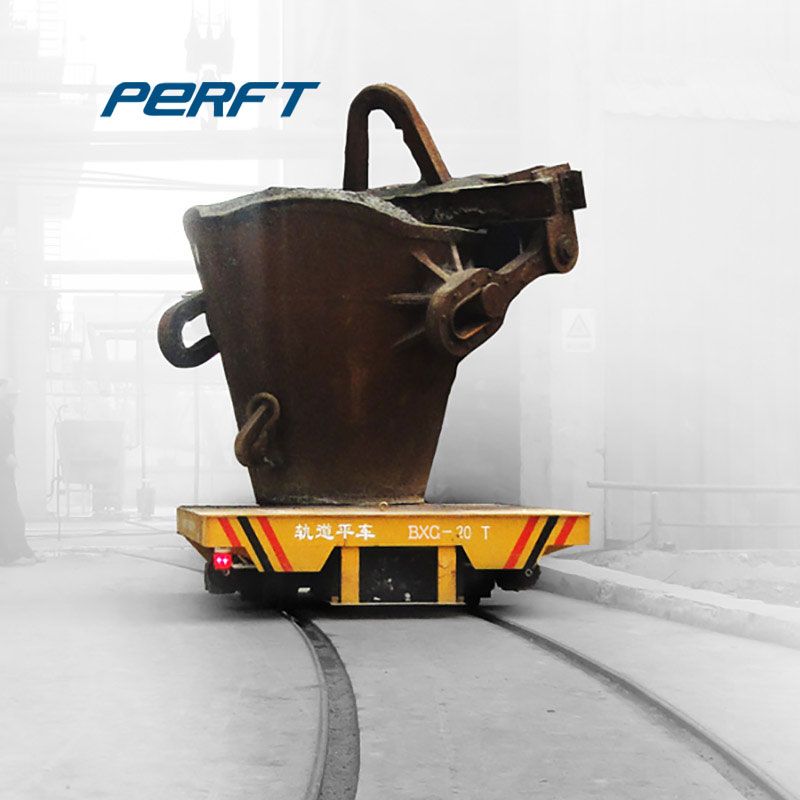

cable drum plate steel ladle transfer cart with High temperature resistance for steel and iron plant
The cable drum plate steel ladle transfer cart with High temperature resistance for steel and iron plantis a large capacity raw material hot metal ladle transfer cart,and it makes the AC electricity power is transformed into AC 36v two-phas and are respectively connected to the two rails.Then the cable drum plate steel ladle transfer cart with High temperature resistance for steel and iron plant wheels conduct the AC 36v on rail into the electrical appliance box at the bottom of the vehicles, And then the AC 36v is transformed into DC 36v and then control the DC motor through the DC control system to make the ladle transfer cart start, stop, go forward and backward and adjust the speed and so on.
Product Parameter of the cable drum plate steel ladle transfer cart with High temperature resistance for steel and iron plant
| Rated Load(t) | 2 | 10 | 20 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Wheel Base(mm) | 1200 | 2600 | 2800 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Wheel Diameter(mm) | 270 | 300 | 350 | 400 | 500 | 500 | 600 | 600 | 600 | 600 |
| Ground Clearence(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed(m/min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power(KN) | 0.8 | 1.5 | 2.5 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 |
| Max Wheel Load(KN) | 14.4 | 42.6 | 77.7 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Reference Weight(t) | 2.3 | 3.8 | 5.5 | 77.7 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 |
The
Scheme of the cable drum plate steel ladle transfer
cart with High temperature resistance for steel and iron
plant

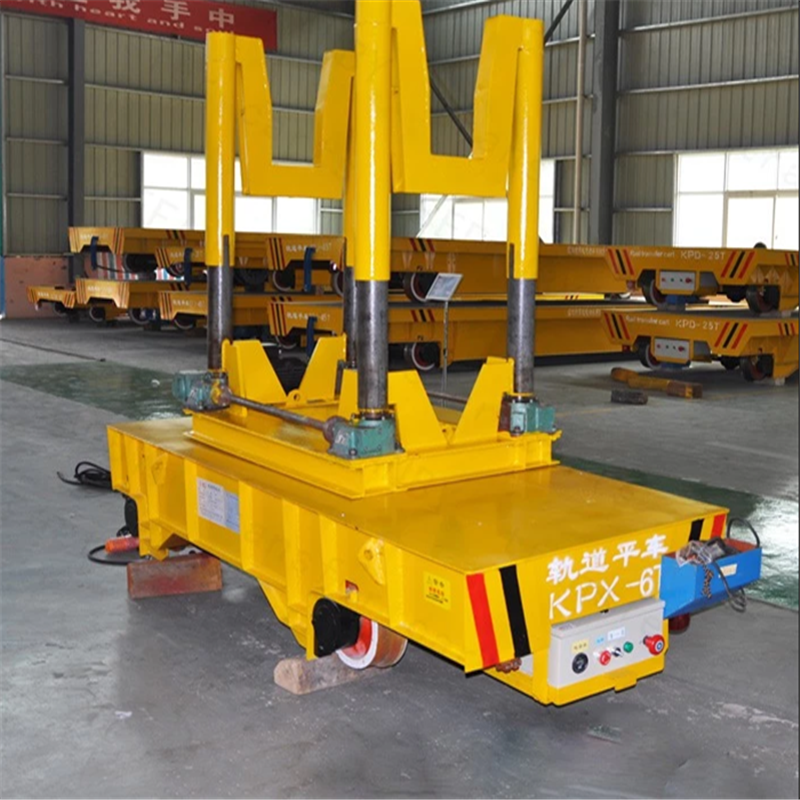

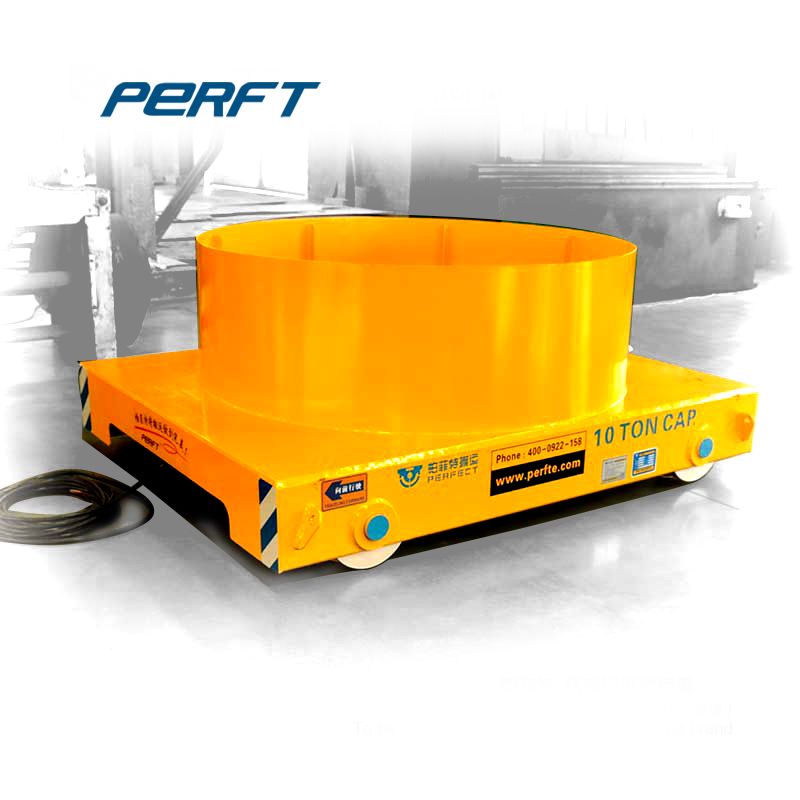

The details of the cable drum plate steel ladle transfer cart with High temperature resistance for steel and iron plant

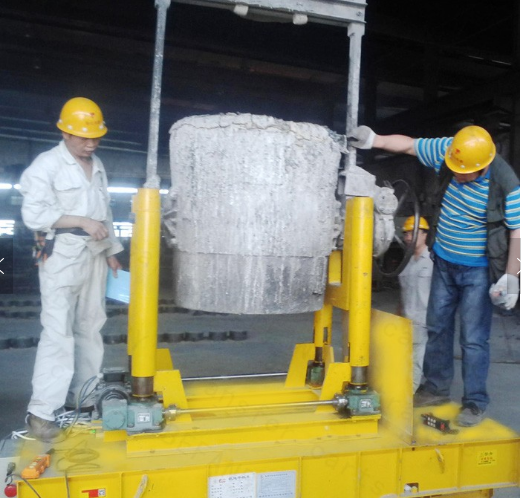

Product Application of the cable drum plate steel ladle transfer cart with High temperature resistance for steel and iron plant
