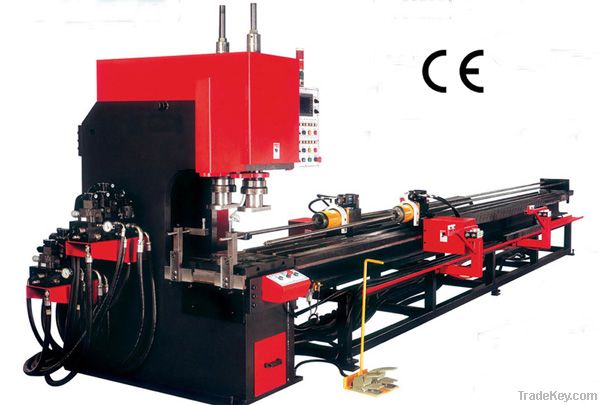

automatic pipe punching machine

详情

Product Description

TFT human machine interface display, touch controllable display setting, digital control systems, serve motor position scaling precision and modular memory function
Operational Function: Jogging/Automatic Functions

Engineering Motion Classification: I single puncturing operation, 2 irregular interval puncturing, 3 regular interval puncturing

Oil Hydraulic System: Step-less operation adjustment, hydraulic loops designed with zero load, combined with extremely low frequency oil pump motor, effectively reduced noise, increased motor efficiency and service duration.

Whenever the oil cylinder is moving downward, the machine is designed with hydraulic difference driving loops rated at high or low RPM. It is also featured with high speed downward moving, low speed processing and hi- speed position resume. It is available to increase the formation stability of work pieces during puncturing. In addition to increasing the activation speed, it can effectively reduce HP lead to save electrical energy.

The electrical control system is designed with human machine interface **0mm(Stroke available for positioning) the mold set is designed with **0mm in depth available for forward and backward **0mm moving accessibility Our machine is designed with the Italy-made digital scale (LCD display) with high precision.

Our machine is adopted with Japan-made serve motor driving devices and the feed-In and receiving speed can be set to high speed and high precision to enhance the productivity.

It is featured with sufficient clamping force of clamping oil cylinders and the position of work pieces is stable and uneasily loose off.

Application: Square tube rectangle pipe and round pipe puncturing

Servo Feed-in Positioning Frame Length: 7OO0mm

Body: ***0mm W: ***0mm H: **0gmm Total Weight: 5T
