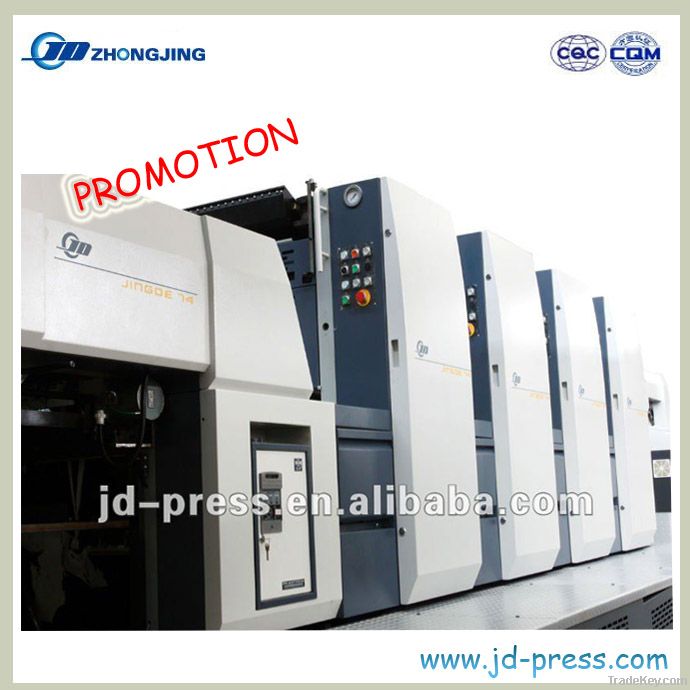

colour label printer printing machine

详情

Product Details:

Specifications

Vacuum suction feeder table

* Imported air pump with large volume

* It is suitable for all paper in any types or size automatically, so as to change paper format more quickly and more easily.

* Ultrasonic double-sheet detector can protect cylinders better.

Accurate gripper system

* After checkered high strength steel pads had been quenched, their life will be longer and replacement will be more conveniently.

* Wear-resistant soft pads ensure stability of paper handover and precision of paper transmission.

* High precision needle roller bearings and opening bearings improve stability of gripper system.

Automatic device for adjusting paper thickness

* It is equipped with gear driven. Distance between cylinders can be given some feedbacks to screen by potentiometer automatically.

* Permanent magnetic generator driven can ensure stability of printing pressure, because of large torsion and strong self-lock.

* It is easier and more convenient to paper thickness on the screen directly.

Pneumatic clamp bar, Change plate without tools

* Tension of clamp bar is controlled by imported hoses and disc springs, so that it is more flexible for operation.

* Corners of cylinders are controlled by high precision encoder. Plates will be installed and dismounted by program automatically. Thus it can meet the long version and short version edition of the printing business needs.

* The tail of clamp bar is separated, so that it can help paper more smooth.

Edging machine with high precision CCD photoelectric puncher

* Standard equipment: LED photoelectric puncher with *0 times rate. It is easier for operation and can avoid the errors during making plates.

* Programs of punching and edging are controlled pneumatically and finished once.

* PS plates are sucked by vacuum. It is super-hard alloy steel punch.

Features:

1 The semi APC (Automatic Plate Changer) shortens the make-ready time.

2 To preset paper thickness when printing different kinds of paper. To adjust printing pressure in every unit automatically, quickly and synchronously.

3 With non-stop feeder, piles are changed at production speed. It saves a great deal of time when running thick paper and long version work offline.

4 It is equipped with CC-LINK technological bus module from Mitsubishi.

5 Double-diameter impression cylinder and transfer drum can reduce the times of sheet take-over between print units.

6 The plate cylinder can be adjusted in the circumferential direction, lateral direction and diagonal direction.

7 There are five rollers on the plate cylinder. There is an intermediate roller in alcoholic damping system, which eliminate the ghost image, achieve the quick ink-water balance and reduce paper consumption.
