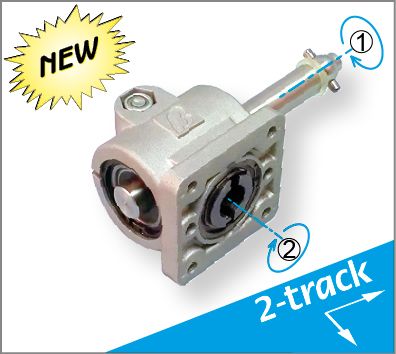

*-track round-section mini
angular idler with flange *0x*2
Use: allows idling and synchronising motion
transmission – ideal to connect the format changeover bridges
to each other.
Version with M6 holes on the bracket flange, which allow fastening
the idler from the inside of the structure.
State of supply 1 aluminium idler body; 1 stainless steel shaft,
2 burnished steel gears, 1 UNI***4 steel cylindrical pin, 3
bearings with sliding gaskets, 1 polyurethane O-ring,
galvanised steel nuts and bolts.
Reduction ratio i=1.
Operation: STEP BY STEP (NO continuous operation).
Max. *0 rpm; max time: 1 (min; on/off ratio=1/*0).
Maintenance: not required, lubricated for life.
Standard pack: 1 piece.
| 国家: | Italy |
| 型号: | 4662 |
| 离岸价格: | 获取最新报价 |
| 位置: | - |
| 最小订单价格: | - |
| 最小订单: | 1 Piece |
| 包装细节: | Standard pack: 1 piece |
| 交货时间: | - |
| 供应能力: | - |
| 付款方式: | - |
| 產品組 : | - |
