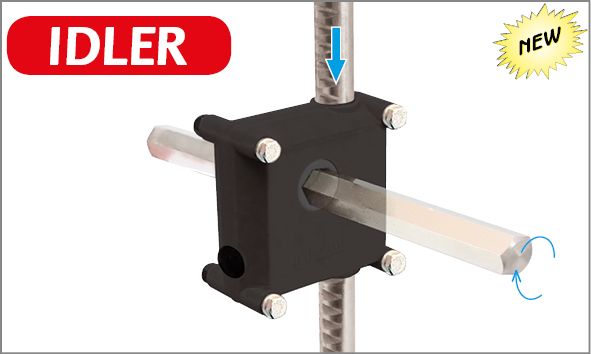

Angular idlers with jack
Rack idler

Use: be used in combination with the drive jack version Part ***0/***8/***0, in cases where the two
reduction gears are connected by means of the hexagonal transmission shaft Part ***0 Pg.**5.
State of supply reduction gear box in reinforced polyamide complete with 1 gearwheel (see table for
material), 1 rack in galvanised steel with end-stop, 4 M6x*5 TE UNI***9 hex head screws, 4 M6 UNI***4 self-locking nuts and 8 washers for M6 screw.
Reduction gearbox colours and nuts and bolts finish (see table).
Maintenance: not required.
Standard pack: 4 pieces.
C TECHNICAL DATA:
1 turn of the worm gear with seat for hexagonal
transmission shaft = **8mmof rack travel.
Operation: manual, if motor-driven max. *0 rpm;
max time: 1 min;
STEP BY STEP (NOcontinuous operation).
On/off ratio=1/9.
