产品规格

Brand Name: Super tech

Custom Order:Accept
Size:Customized
OEM:Acceptable
ODM:Acceptable
Shape:Customized

详情

Product Description

Unique structure of heat dissipation-heat insulation-heat dissipation
Super Tech Advanced Materials fifth generation VIP upgrade product
Use aluminum foil or stainless steel foil as membrane material Basalt fiber, high silica, etc.are used as core materials
Packaging by welding
Can replace high silica cotton and silica aerogel and airgel felt and other materials
High temperature thermal insulation materials

Product specification

Thermal conductivity	≤0.0020W/m·k	Recommended operating temperature	-196℃-600℃
Body density	250-420kg/m³	Compressive strength (<10%)	≤0.5MPa
Body Areal Densitydensity	2-5kg/m²	Leak Rate	<10-10Pa.m³/S
Standard Size	Max:500x1000mm,Min:100x100mm,Thickness:3-20mm

Advantages of High Temperture Corematerial-Based VIP For Wide Temperature Range (-196℃-800℃) UniqueStructure of ''Heat Dissipation-Thermal Insulation-Heat Dissipation''

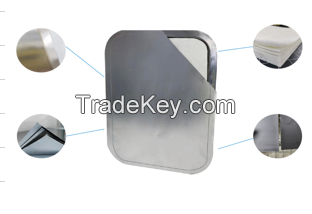

The interior of the metal VIP is filled with heat-resistant core materials and vacuumed, showing excellent heat insulation effect in the direction perpendicular to the metal VIP. The external cladding material is aluminum foil or stainless steel foil with high thermal conductivity, which has good heat dissipation effect in the direction parallel to the metal VIP. The heat sink with high thermal conductivity can also be connected at the edge and connected to the heat dissipation system so as to play a better heat dissipation effect. Metal VIP can be applied to new energy battery heat insulation and other special heat insulation scenarios.

ExcellentHeat Insulation at Steady
State high temperatures:The thermal insulation properties of 8mm VIP and 9mm aerogel felt with the same length and width were compared at 400℃and 600℃. Compared with aerogel felt, the back temperature of VIP metal was significantly lower and the heating rate was slower.

ExcellentHeat Insulation at Unsteady High Temperatures
In the unsteady (rapid temperature rise) tests, the metal VIP insulation performance was better than the aerogel felt.

Application areas
New energy battery
Energy storage and insulation
Aerospace
LNG pipeline insulation
High temperature appliances

Our Advantages

1.Vacuum insulation board performance lifetime, core material, thin film technology, gas adsorbents, equipment and automation, the application of vacuum insulation board, inspection and experiment.

2.Nano barrier technology, vacuum insulation panels special gas adsorbent, production process of high-performance glass fiber core material, independent innovation of intelligent production equipment and production process, research on the application of vacuum insulation panels.

3.We provide OEM services to well-known domestic and international cold chain enterprises. Provide customers with high-quality and competitive products and after-sales services (all products can be customized for production and after-sales service is guaranteed)

4.Having an annual production capacity of 9 million square meters of VIP and 2 million square meters of VIP. The company possesses the ability of integration production and independent innovation technology of core material, barrier film, absorbent, vacuum packaging manufacturing.
