The

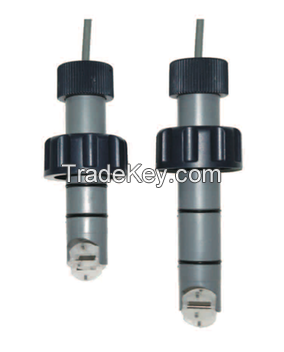

Lucenline FSP10 paddlewheel flow sensor is a highly reliable sensor
that can measure flow from 0.15 - 8m/s(0.5 -26ft/s). The output
signal of the FSP10 is a highly repeatable frequency signal. The
key IC of the sensor has superior temperature measurement stability
and short-circuit protected output. Using proper fittings, the
Lucenline FSP10 flow sensor can measure pipes in sizes from DN15 to
DN600 (0.5" to 24").
| Pipe Size Range |
DN15 to DN600 (0.5" to 24"). Select different installation fittings for different pipe sizes and materials. |
| Measuring Range | 0.15 to 8 m/s(0.5 to 26 ft./s). |
| Linearity | ± 1% of maximum range. |
| Repeatability (in any fittings) | ± 0.5% of maximum range. |
| Minimum Reynolds Number Required | 4500. |
| Enclosure | IP68. |
| Wetted Materials |
Sensor Body: CPVC. O-rings: EPDM/FPM. Rotor: PVDF. Rotor pin: Titanium. Bearings: Titanium. |
| Supply voltage | 3 to 24 VDC ± 10% regulated. |
| Supply current | < 4mA @ 24 VDC. |
| Output signal |
Square wave. Frequency: 45 Hz per m/s nominal (13.7 Hz per ft/s nominal). Short-circuit protected open collector. Output current: 25mA maximum. |
| Sensor Cable |
Cable length: 6.1 m (20.0 ft) standard, 305 m (1000 ft)
maximum. Cable type: 22 AWG fully annealed stranded tinned copper per ASTM B-33. |
| CPVC body |
12 bar (174 psi) @ 25°C (77°F) 1.5 bar (22 psi) @ 80° C (176°F). |
| 国家: | China |
| 型号: | - |
| 离岸价格: | 167 ~ 299 / ( Negotiable ) 获取最新报价 |
| 位置: | - |
| 最小订单价格: | 167 |
| 最小订单: | 1 Unit |
| 包装细节: | Box |
| 交货时间: | 4 to 14 days |
| 供应能力: | 10 Unit per Week |
| 付款方式: | T/T |
| 產品組 : | Flow Measurement |
