0.5HP Jet Booster Pump

详情

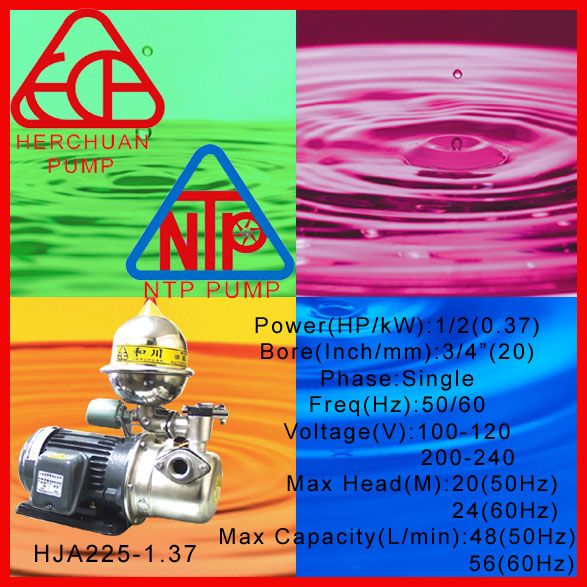

0.5HP Jet Booster Pump
Specifications:

                            Pump body: Cast Iron

                            Mechanical shaft seal:Carbon-ceramic

                            Impeller: Stainless Steel

                            Pump chamber:Stainless Steel

                            Protection Device: Build-in thermal overload protector

                            Pressure tank: Corrosive Resistant /Stainless Steel
=======================================================
TYPE:HJA****1.*7 **5/2S
POWER(HP/kW):1/2(0.*7)
BORE(inch/mm):3/4"(*0)
VOLTAGE(V):******0/******0
CURRENT(A):5.2(******0V)/2.6(******0V)
FREQ(Hz):*0/*0HZ
MAX HEAD(M):*0(*0Hz)/*4(*0Hz)
MAX CAPACITY(L/min):*8(*0Hz)/*6(*0Hz)
======================================================================
Applications: Water supply of household, Well water, farmland, breeding, garden, hotel,
                               schools, hospitals, canteen, chemical factories. Pressurize the use water,
                               cool the circulating water, Supply water for air conditioners and boilers .
=======================================================================
Suitable liquids:Potable water or other clean, thin or non-aggressive liquids
=======================================================================
Product Features:

    1. The LJP,HJP series self-prime jet pump with good starting performance, low noise, nice
    appearance, and compact structure, is efficient and economical, is applied for residential,
    commercial and light industrial

     2. The water pump is build-in thermal overload protector (**0W only) for motor burnt out
     protection.

     3. If it is lack of water, the pump will shut off automatically to prevent the pump overheat. It is be
    controlled by temperature sensor. When the water temperature exceed *5。C the pump will
    shut off automatically .When the water temperature below *5。C the pump will turn on
    automatically.

       (If you need the function of temperature controller, you must extra buy from us that auto shut
     off device.)

      4. The double voltage power supply is designed and installed inside electric box .
      You can c hoice **0V or **0v for supply.
=======================================================================
Operation Conditions:
                                          1. Ambient temperature: Up to *0°C / **4°F
                                           2. Liquid temperature range: Up to *5°C/**1°F
