Advantages:
| Item | Machine Specification |

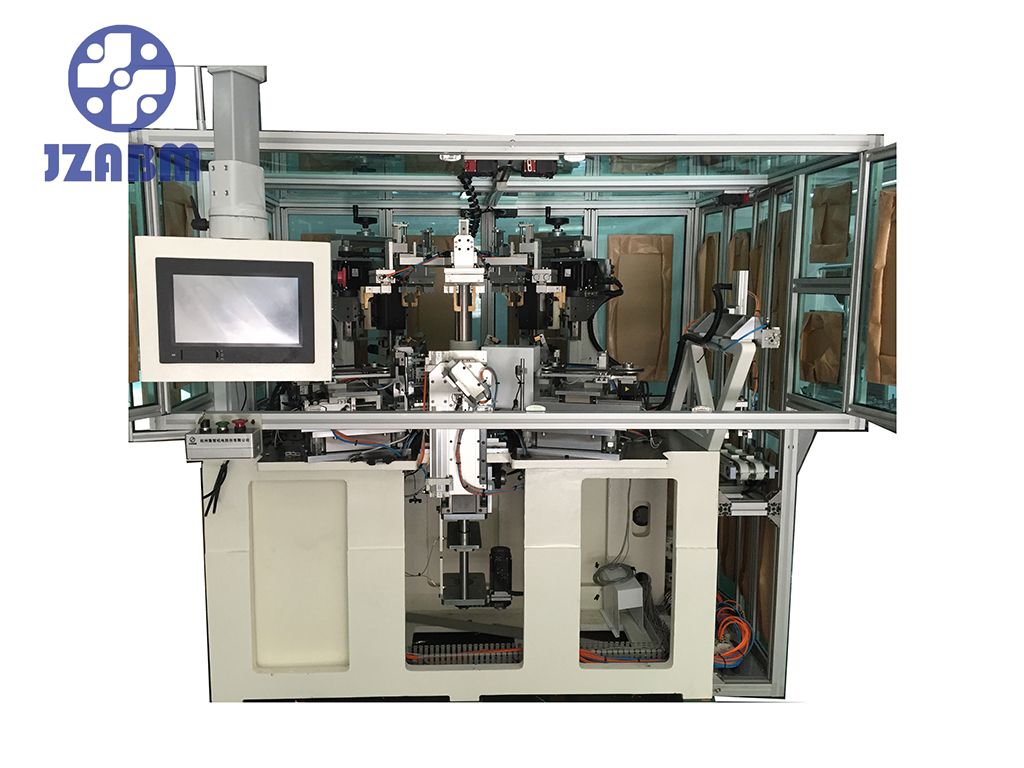

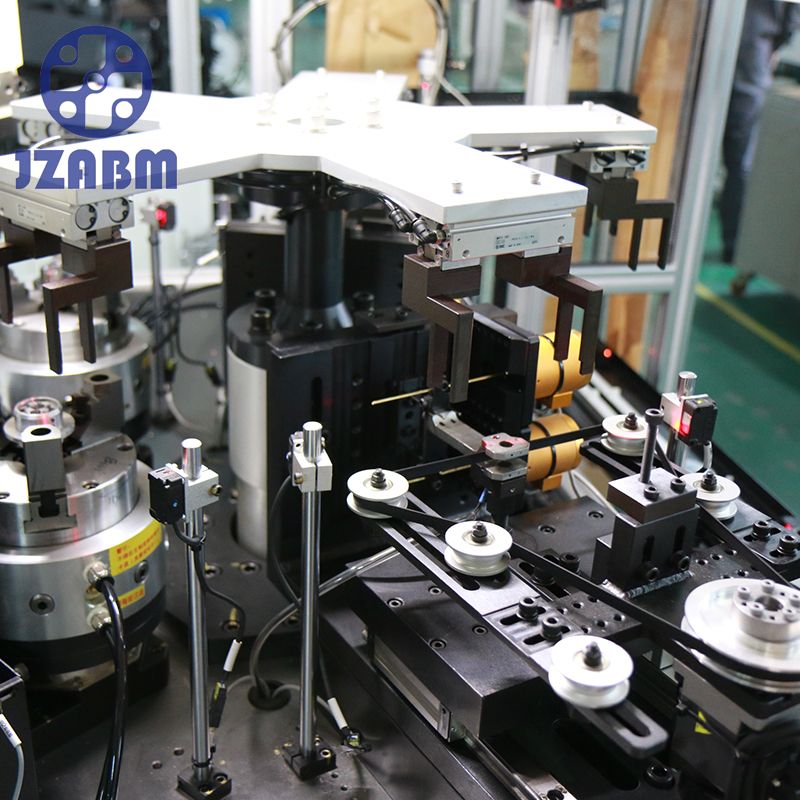

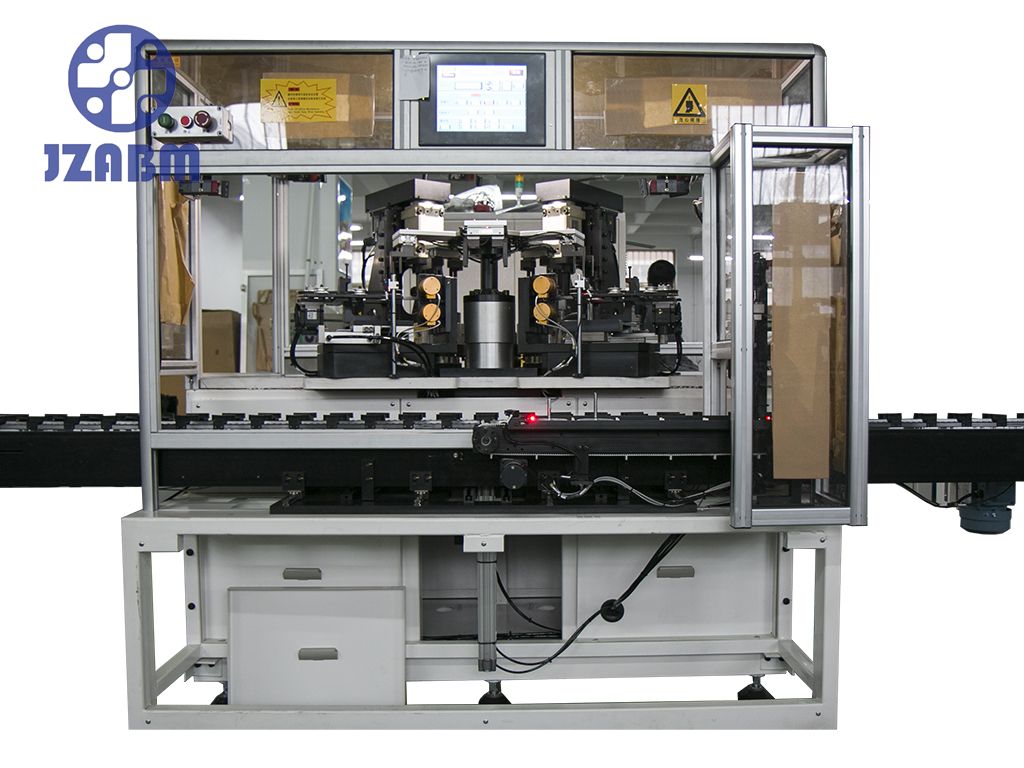

| Machine name | Jizhi Automatic balancing machine for outer rotor (Five-station) |
| Main components | Cylinder : SMC |
| Servo motor :MITSUBISHI | |
| Sensor : KEYENCE/BAUMER | |
| Touch screen : KEYENCE | |
| Control PLC: KEYENCE | |
| Rotor range | Weight:< 1kg |
| Rotor diameter: 50~130mm | |
| Shaft length: < 200mm | |
| The length of core: 30~90mm | |
| Measuring speed | 1380~2100rpm |
| Air supply | 0.4~0.6Mpa |
| Balance correction method | periphery sweep mill |
| Cycle time | 16S~25S *Depending on the workpiece, there will be differences |
| Residual volume | 80mg~300mg *Depending on the workpiece, there will be differences |
| Volume | 1950mmX2050mmX1455mm |
| Weight | 3T |
| Consumption | 3.5kw |
| Cleaner consumption | 1.5kw |
| These parameters are for reference only, we can also customize the required models according to the requirements, and the actual demand quotation shall prevail | |
