Jizhi two station AMB has following advantage:
| Item | Machine Specification |

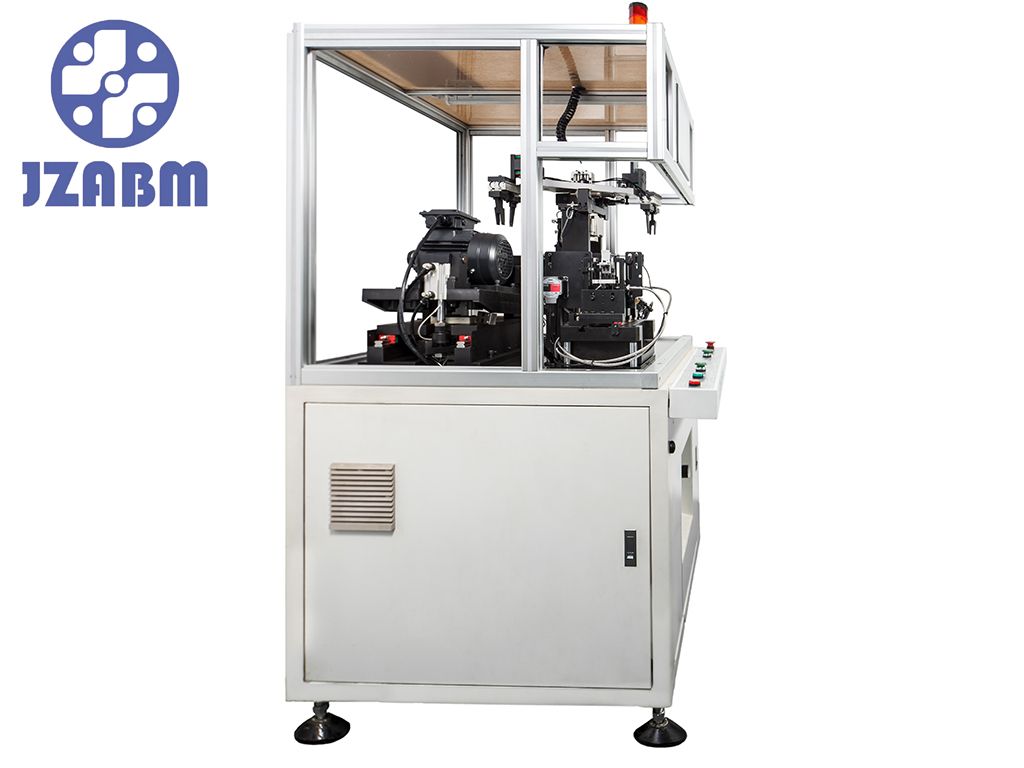

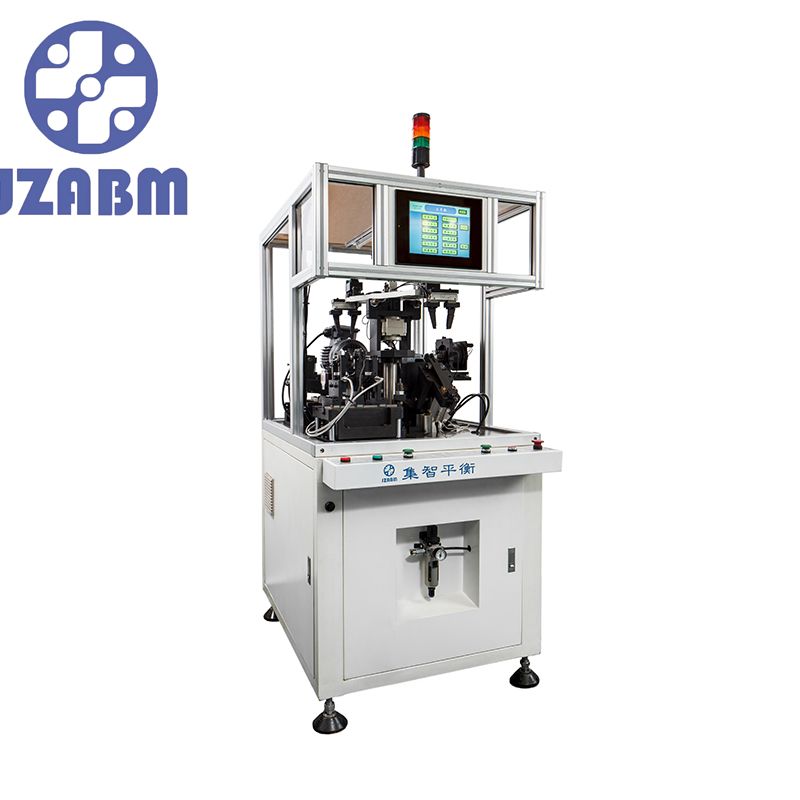

| Machine name | Jizhi Two-station SMART automatic balancing machine |
| Main components | Cylinder : SMC |
| Servo motor : Mitsubishi | |
| Sensor : KEYENCE, OMRON, CONTROLWAY | |
| Control PLC: KEYENCE | |

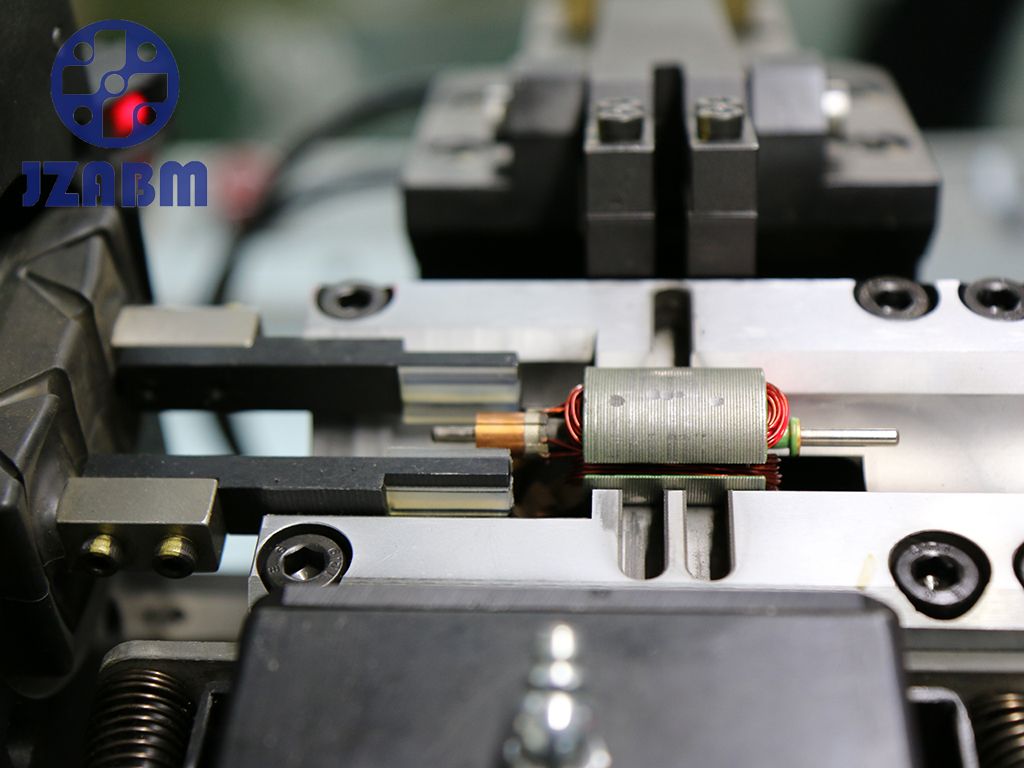

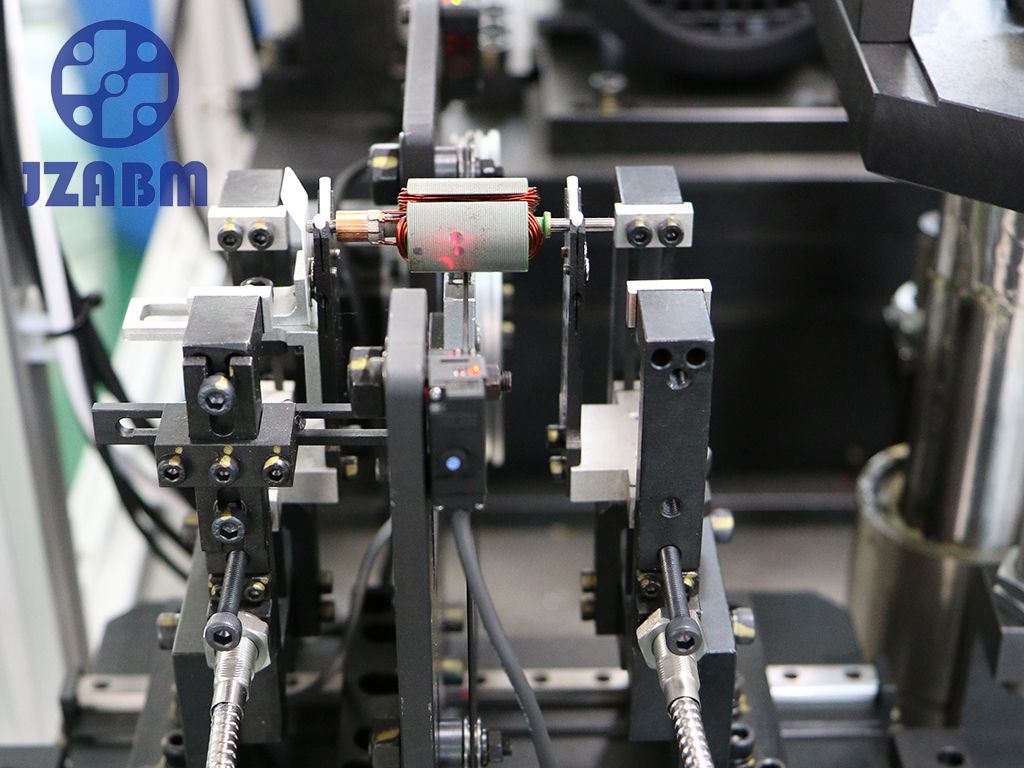

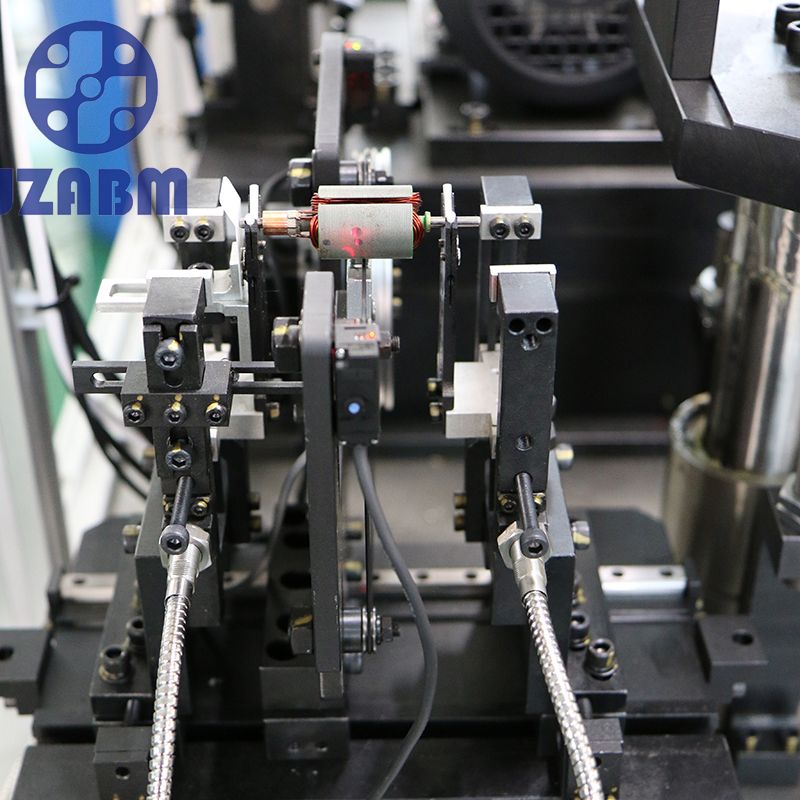

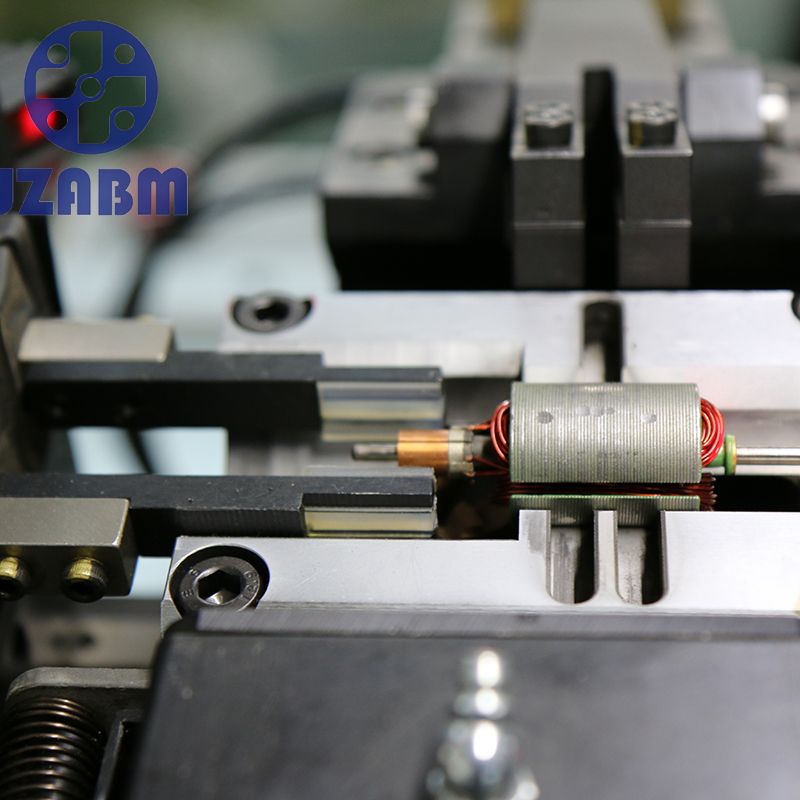

| Application of the armature: 3,5,7 serial mini armature, BLDC rotor | |
| Stepping motor: Oriental motor | |
| Rotor stack length:20-60mm | |
| Rotor diameter: Φ15-37mm | |
| Speed | 1600~2100rpm |
| Cutting method | T cutter or V cutter |
| Air supply | 0.4~0.6Mpa |
| Working pressure | 0.4～0.6Mpa |
| Cycle time | 12~15s |
| Residual unbalance | Better than G6.3 |
| Volume | 1700 X 900 X 1700 mm |
| Weight | 800kg (not include vacuum cleaner) |
|
These parameters are for reference only, we can also
customize the required models according to the requirements,
and the actual demand quotation shall prevail |
|
| 国家: | China |
| 型号: | - |
| 离岸价格: | ( Negotiable ) 获取最新报价 |
| 位置: | Zhejiang, China |
| 最小订单价格: | - |
| 最小订单: | 1 Unit |
| 包装细节: | Fumigated wooden box |
| 交货时间: | By sea |
| 供应能力: | 100 Unit per Month |
| 付款方式: | T/T |
| 產品組 : | TWO STATION |
