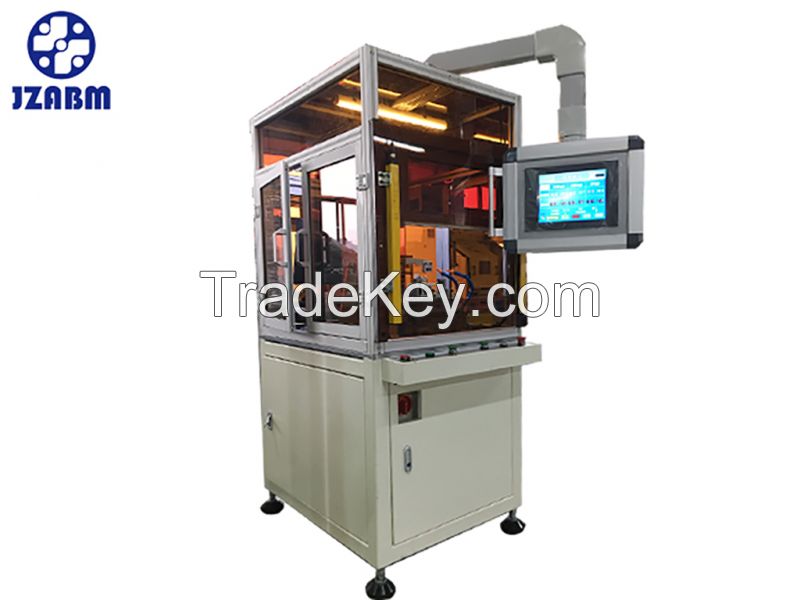

Laser balance testing machine

详情

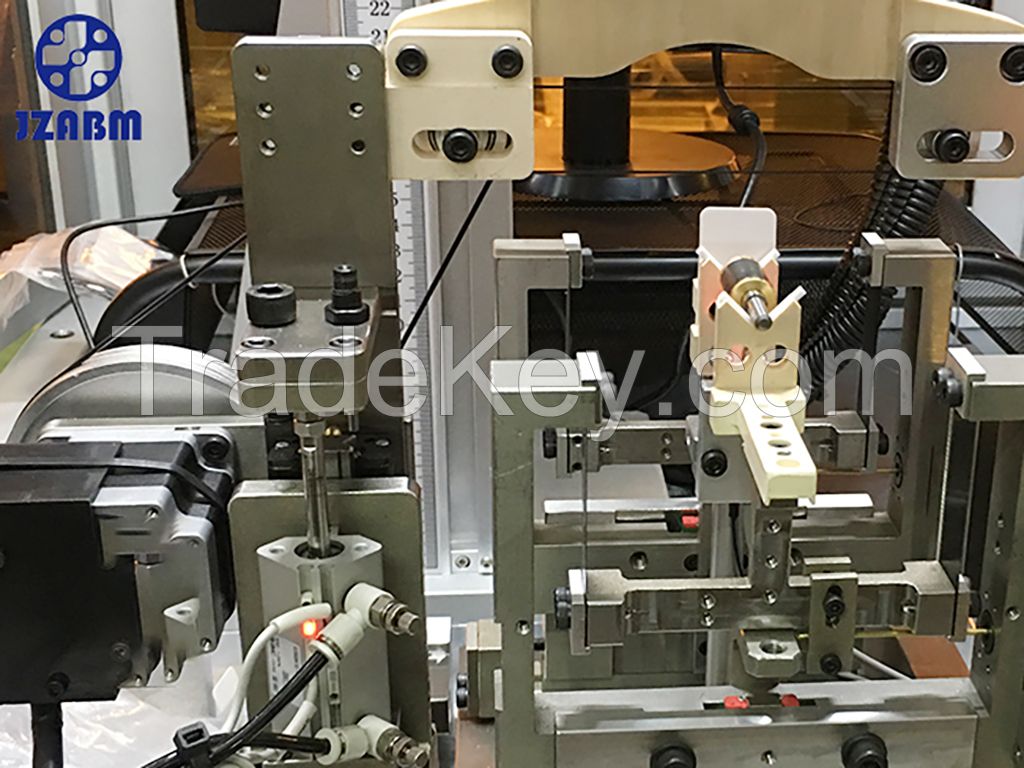

1. It is driven by a servo motor, with two round belts installed, and the belt drives the rotor to rotate.

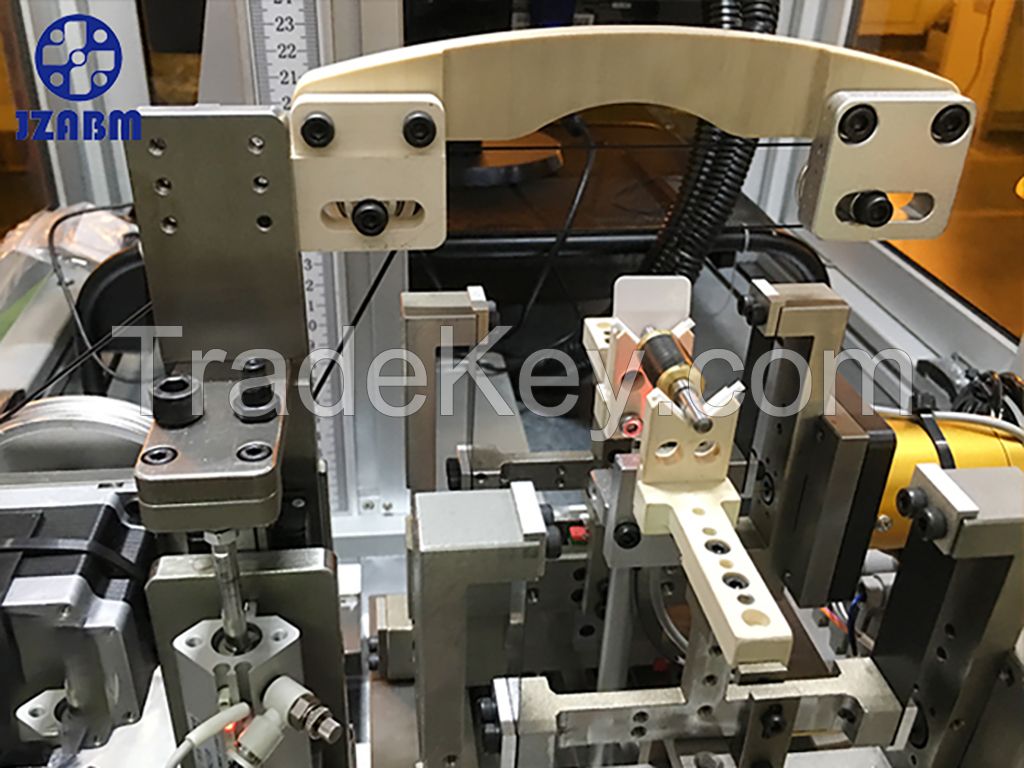

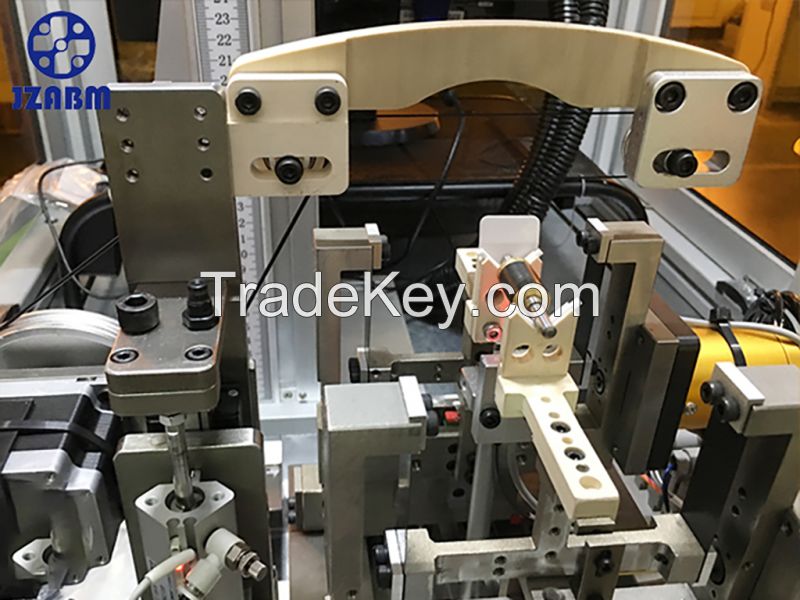

2. The swing frame adopts a floating table structure supported by four spring rods. The spring rods are installed in the axial direction to limit the vibration of the floating table. The radial vibration uses a high-precision vibration sensor to detect the vibration signal.
3. Using Jizhi self development and research slot sensor, according to the slot signal collected when the rotor is rotating, determine the rotation speed of the rotor.
