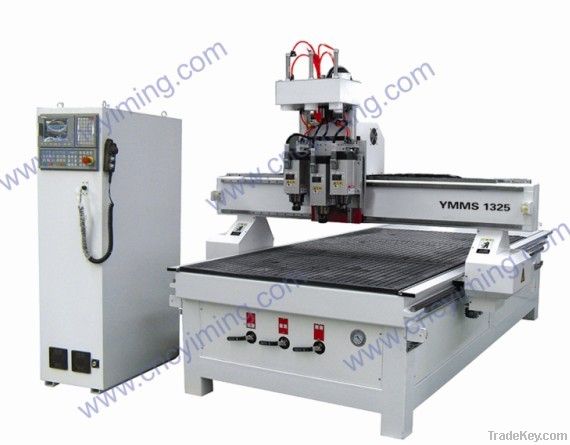

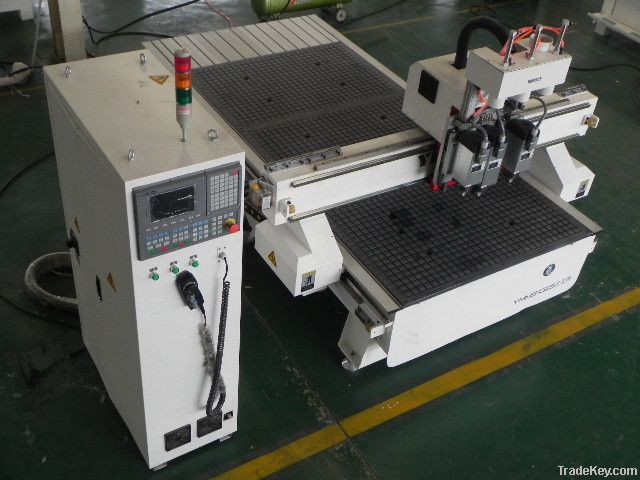

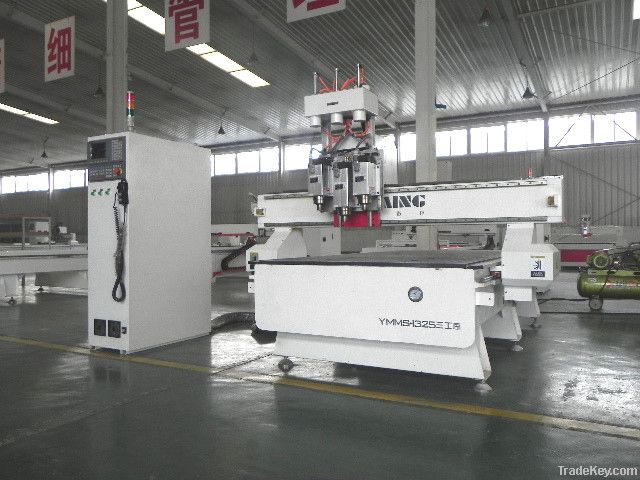

1.Main components of the
machine
1.1 Spindle motors: One YIMING 6.0KW spindles, two YIMING 4.5KW
spindle
1.2 Operating systems: Taiwans SYNTEC
1.3 Servo systems: Iapanese YASKAWA servo system
1.4 Inverter: Taiwan DELTA
1.5 Rail: Taiwan HIWIN square rails, lubrication-free lifelong
1.6 Table: Vacuum sorbation table
1.7 Vacuum pumps: 5.5KW vacuum pump, power, good adsorption
effect
1.8 Major Electrical French components or Germany Schneider
1.9 Cable: YIMING dedicated cable drag chain, anti-jamming, and
static electricity, highly flexible, long time use does not
break
1.*0 Operating systems: Taiwans SYNTEC 1.*1 Application software:
Wentai, and Artcam, Type3, are compatible with CAD/CAV and other
design software
1.*2 Gantry frameworks: beams steel
1.*3 Table:the whole steel structure welding tempered aging
treatment, strong and does not distort
|
NO. |
Performance |
Parameter |
|
|
1 |
Stroke |
X |
***0mm |
|
Y |
***0mm |
||
|
Z |
2*0mm |
||
|
2 |
Table size |
|
***0****0mm |
|
3 |
Precision |
Process precision |
+/-0.*5mm |
|
Reposition precision |
+/-0.*5mm | 国家: | China |
| 型号: | YMMS1325A | ||
| 离岸价格: | ( Negotiable ) 获取最新报价 | ||
| 位置: | Shandong | ||
| 最小订单价格: | - | ||
| 最小订单: | 1 Set | ||
| 包装细节: | wooden box | ||
| 交货时间: | 5 days after receive the first deposit | ||
| 供应能力: | 10 Set per Month | ||
| 付款方式: | T/T, L/C | ||
| 產品組 : | - |
