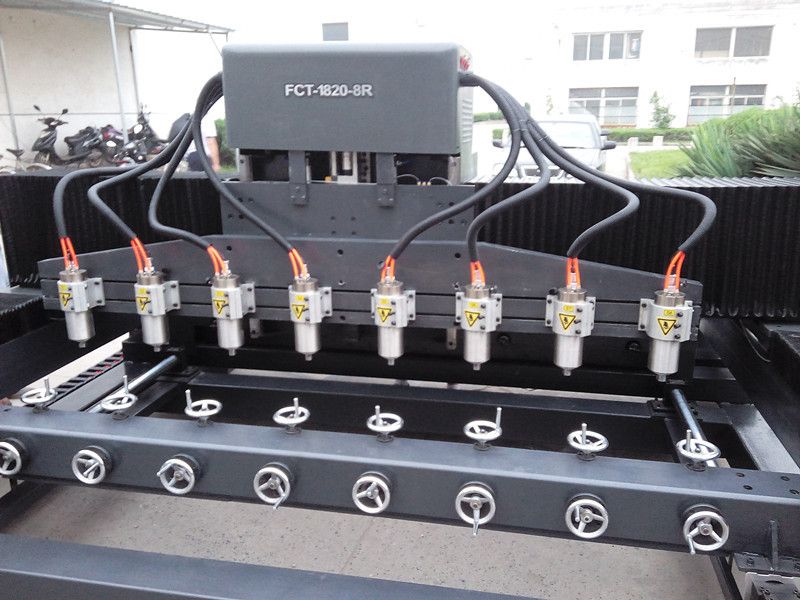

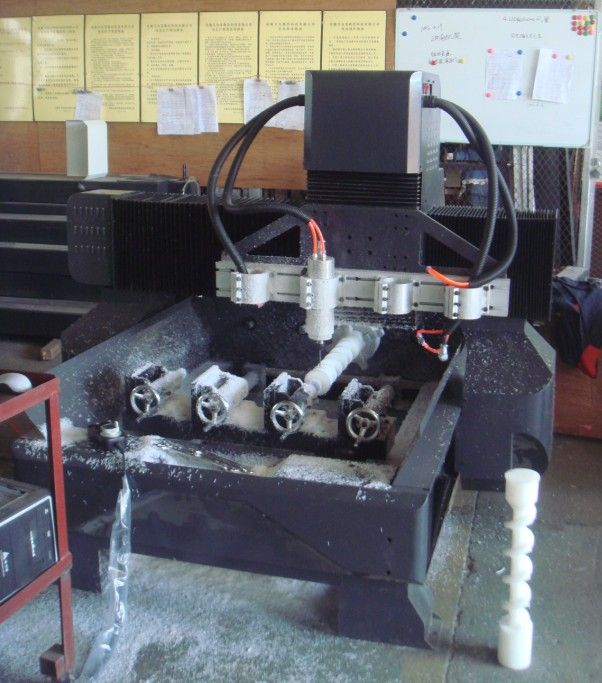

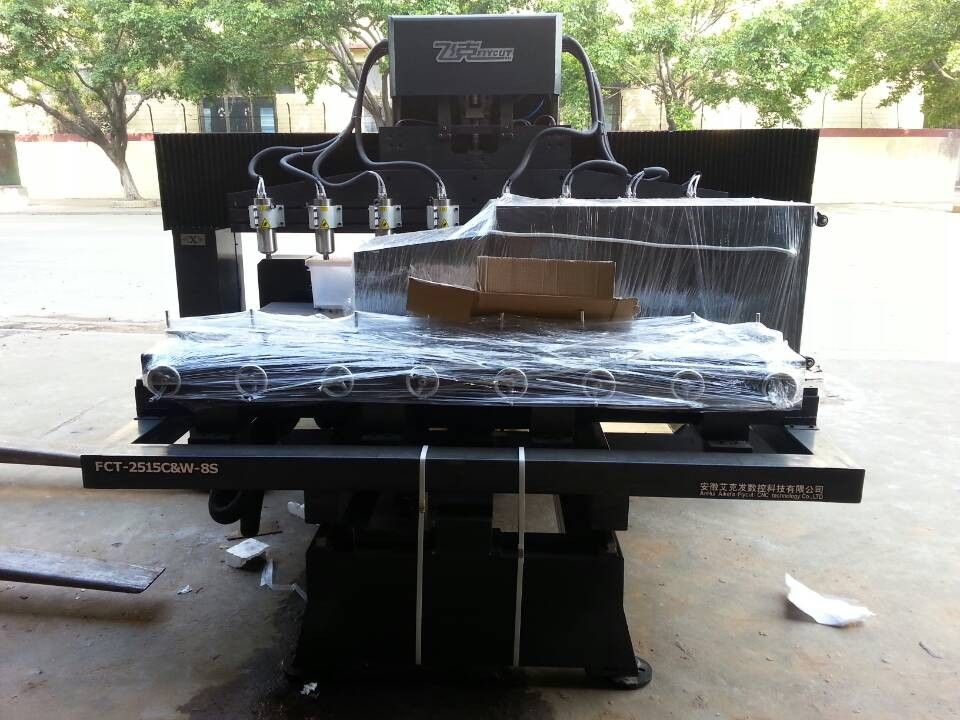

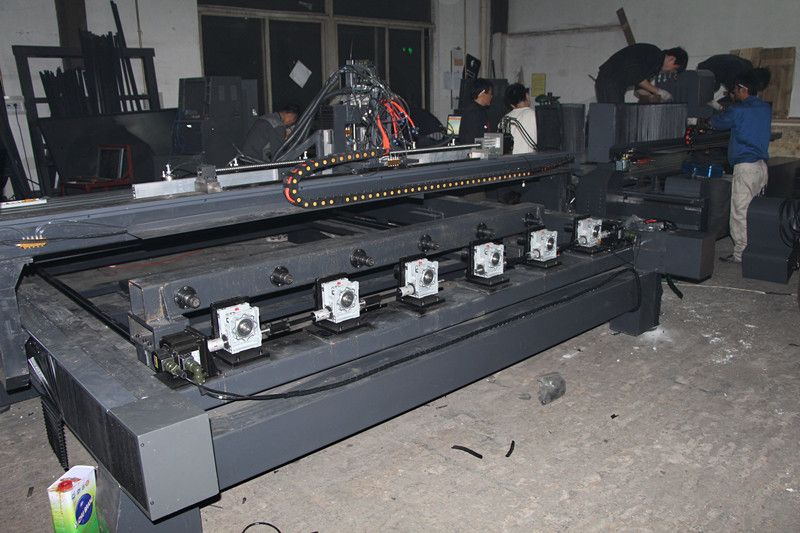

cnc woodworking engraving router machines

China

-

8500 ~ 12000 / Set 获取最新报价

hefei

8500 per Set

1 Set

fumigation wooden

7-15 days

100 Set per Month

Western Union, D/P, D/A, L/C, T/T

现在联系

产品规格

motor &driver : stepper or servo machine structure : industry square tube structure transmission : X Y Z TaiWan PMI aquare rails contact information : alice(overseas department manager) mobil : 13966703473 QQ : 307755788 wechat : aliceqianmei skype : qian.alice

详情

Application:

widely used in cylindrical item relief carving,such as stair armrest,walking stick,table leg,buddha statue,head sculpture,etc.

Machine's features:

1. Multi heads greatly increased the production efficiency.

2. The lathe is founded by industrial steel pipe welding, box-type structure which make it have large bearing capacity,strong rigidity. Special apparatus to eliminate welding stress that ensure machine's high stability.

3  High quality X,Y,Z imported ball screw or high accuracy gear rack transmission system,imported linear square rails.

4  X,Y,Z high quality dust cover, effectively prevent dust come into the inside of machine.

5  Professional CNC control system,compatible with many CAM software such as Type3,artcam,mastercam,UG,pro-e etc.

6. It can work directly once you get the machine.


Special configuration:

we can produce larger size or special size according to customer's requirements,

imported spindle,servo driver,auto-change tool system,oil lubrication apparatus, 6-12 spindle heads are optional.



Our service:

1.The machine comes with 1 year warranty;

when it exceed warranty period,if the machine's part need to be changed,we can sell to you at our cost price

2. Our technican could provide remote guide online if you need.

3. We are manufacturers specialized in CNC engraving and cutting machine,welcome to customize or distribute our machines.


Model
FCT-2018R-8S
 Rotary Diameter
  Φ250 mm
 Rotary length
 1500mm
Flat working size
2300*1500*200mm
Spindle power Water cooling 2200W×8
Spindle rotation 6000--24000rpm
Motor driver Stepper motor driver (Chinese servo motor and Japan servo motor is optional)
Tool diameter  Φ3.175mm, Φ 6mm, Φ12.7 mm
Machine structure Industry square tube structure, gantry moving
Transmission XYZ TBI ball screw, Y double ball screw, double driver.
XYZ rails PMI square rails
Dust-proof system XYZ high quality dust cover
Mechanical accuracy
Engraveing speed 10000mm/min
Data transmission PC-connection directly
Support format G code or HPGL
Working voltage AC220V/50Hz or 380V/50Hz

Net weight

2500kg


Model

FCT-7090C&W-4S

FCT-1618C&W-4S

FCT-1625C&W-4S

Rotary diameter

230mm

230mm

230mm

Rotary length

800mm

1300mm

2000mm

Flat working size

700×900×200mm

1600×1800×200mm

1600×2500×200mm

Spindle power

Water cooling 1500W×4

Water cooling 1500W×4

Water cooling 2200W×4

Spindle rotate

6000--2400rpm

Motor driver

Stepper motor driver (Chinese servo motor and Japan servo motor is optional)

Tool diameter(mm)

3.175, 4, 6

Machine structure

Industry square tube structure

Transmission

XY ball screw, Y high accuracy gear rack

XYZ rails

PMI square rails

Dust-proof system

XYZ high quality dust cover

Mechanical accuracy

less 0.03/300mm

Engraveing speed

8000mm/min

Dat a  transmission

PC-connecation directly

Support format

G code or HPGL

Working voltage

AC220V/50Hz or 380V/50Hz

Net weight

600kg

1000kg

1200kg
