Description-
CNC router finds application in architectural mill work, aluminum
and metal composite cladding, sign-making, graphics & print
finishing, wood working, plastic fabrication, metal fabrication,
foam packaging, die maker, duct maker, solid surface, MDF cutting,

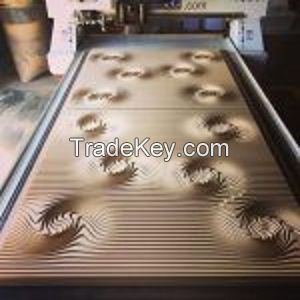

3D panel mold making, 3D plastic trimming, residential &
commercial constructions & many more
We provide double spindle for faster working performance, and
Rotary Attachment (optional).

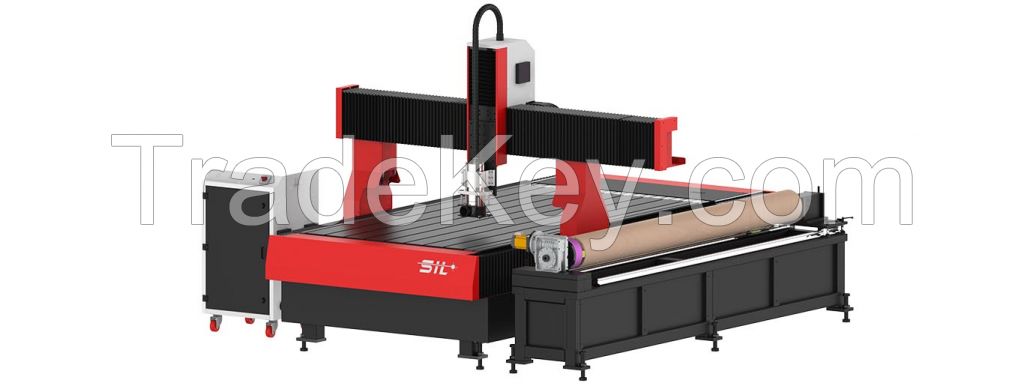

SIL built CNC router for manufacturers who process large volumes of
cladding materials and rely on speed and efficiency.
CNC router machine has built in X, Y axis drive system. A
single-piece, heavy-duty steel frame, coupled with a helical rack
drive system and high tolerance bearing components, delivers
high-accuracy motion and quality cutting.

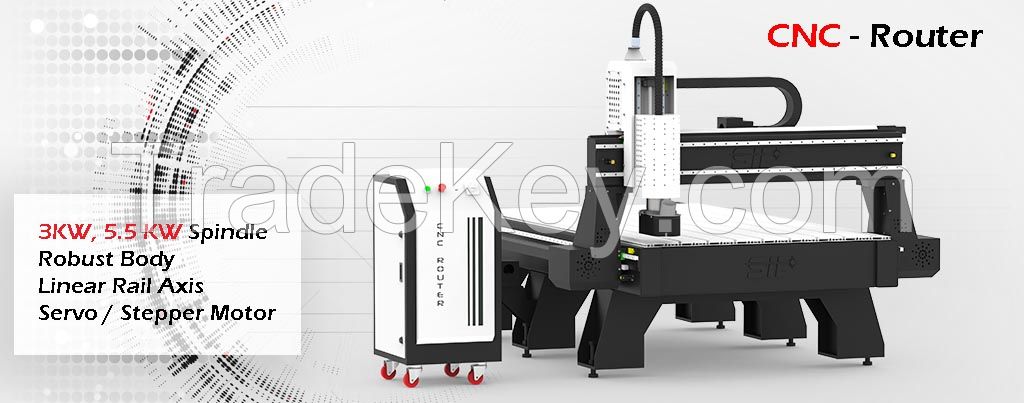

Optional 3.0 KW / 5.5 KW / 9 KW spindles of various power.
Handheld DSP Controller to set job parameter.
Water cooled / air cooled spindle for longer life &
guaranteed machine performance.
Available in many sizes from small to large and Special size table. From 4 x 4ft ~ 7 x *1 ft. Vacuum table or aluminum T- slot extrusion table. Automatic lubricating system. Mist cooling system. Machine moving feet, Manual tool changer spindle.
Excellent speed, efficiency, high precision CNC engraver router
machine built in X, Y Axis drive system rack and pinion with *5 mm
square linear rails achieving high positioning, motion accuracy
& longer life.
Working Table with aluminum T-slot and PVC sheet for protection
of worktable which ensures for longer life.
Technical Specifications-
| SPECS/MODEL | SIL ***5 | SIL ***0 |
| X, Y Z Working area | ***0x***0x**0 mm | ***0x***0x**0 mm |
| Resolution | ± 0.*3/**0 mm | |
| Repeatability | ± 0.*3 mm | |
| CNC Spindle | 3 KW / 5.5 KW / *2 KW Power Spindle with Air Cooling / Water Cooling Mechanism | |
| Max. RPM | ******0 rpm | |
| Max Working Speed | ******0 rpm | |
| Max. Consume Power | 5.5 KW | 7.2 KW |
| lathe Structure | Welding Steel Structure | |
| X,Y,Z Structure | Rack Pinion, Ball Screw linear Rails | |
| Working Voltage | AC **0V, *0/*0 Hz, Single Phase / AC **5V, *0/*0 Hz, Three Phase | |
| Working Mode | Stepper / Servo | |
| Table | T-slot / Vacuum bed / Water bed | |
| Linear Guide | Hg *0 for X,Y & Z | |
| Command Code | G Code ( *nc, *mmg, *plt, *cnc) | |
| Operating System | DSP Control System | |
| Memory | **8 MB (or Flash Drive) | |
| Inverter | SIL Make / Crompton Greaves / Delta | |
| Optional 1: | Rotary Attachment Size Diameter **5mm, Length ***0mm | |
| Optional 2: | Vacuum Adsorption / Water bed with T- Slot Table | |
| Dust Collector | With Dust Collector Hood | |
