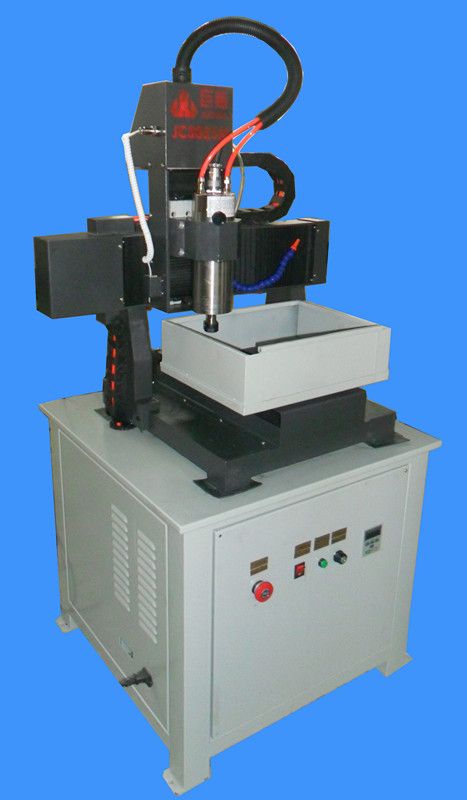

mini metal engraving machine

China

-

2300 ~ 5000 / Set 获取最新报价

hefei

2300 per Set

1 Set

fumigation wooden

15days

100 Set per Year

Western Union, D/A, L/C, T/T

现在联系

产品规格

Brand Name : flycut Rated Power : AC220V/50HZ or 380V/50HZ Engraving Speed : 5000mm/min Main Axle Rotational Speed : 6000-24000rpm Feeding Height : 65 or 70 or 120mm Milling Cutter Diameter : 3.175,6,4 Application : make name plate,copper stamps,model-building,precision blanking die,hot cutting for iron,copper,alum Weight : 150kg-300kg Dimensions : -
contact information : alice(overseas department manager) mobil : 13966703473 QQ : 307755788 wechat : aliceqianmei skype : qian.alice

详情


CNC High Accuracy Mini Router


Features:

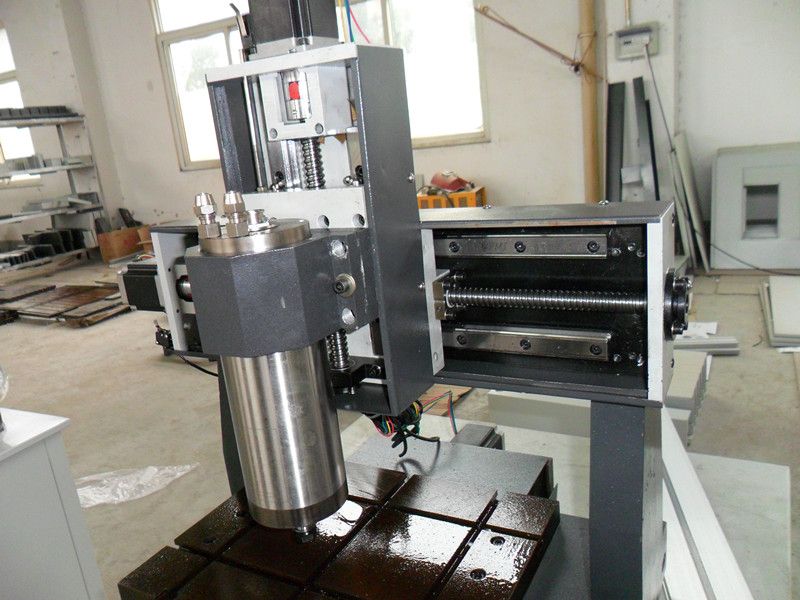

  1. Use iron casting tempering technology for making machine body, good stiffness and working stability, less vibration
  2. Movable table design, good mechanical stability, high accuracy workpiece.
  3. Imported Germany ball screws are applied on X,Y,Z to ensures high precision.
  4. High quality driver motor, spindle motor, cables, inverters, etc.
  5. Professional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.

Appplication:

Making adv.board, name plate, breastplate, CHRY, copper stamps, indicator drop, art crafts, wood crafts, cnc panels, model-building, precision blanking die, hot cutting for iron, copper, aluminum, plastic board, PCB board, wash gold board, clamp mark board, electrode, jade, etc

Special configuration:
Imported spindles, servo motor and drivers, oil lubrication system, rotary device, etc.

Technical parameters:
Model FCT-3030 FCT-4040 FCT-4540
Working Size 1300×1300×200mm 1300×1800×200mm 1300×2500×200mm
Spindle Power Water cooling 1500W Water cooling 2200W Water cooling 3000W
Spindle rotation 6000--24000rpm
Motor driver Stepper motor driver (China servo motor and Japan servo motor is optional)
Tool diameter 3.175, 4, 6, 12.7mm
Transmission High accuracy imported ball screw
XYZ rails Imported square rails
Machine accuracy 0.01mm
Engraving speed 5000mm/min
Support fortam G code or HPGL
Working voltage AC220V/50Hz or 380V/50Hz
Net weight 150kg 200kg 300kg
