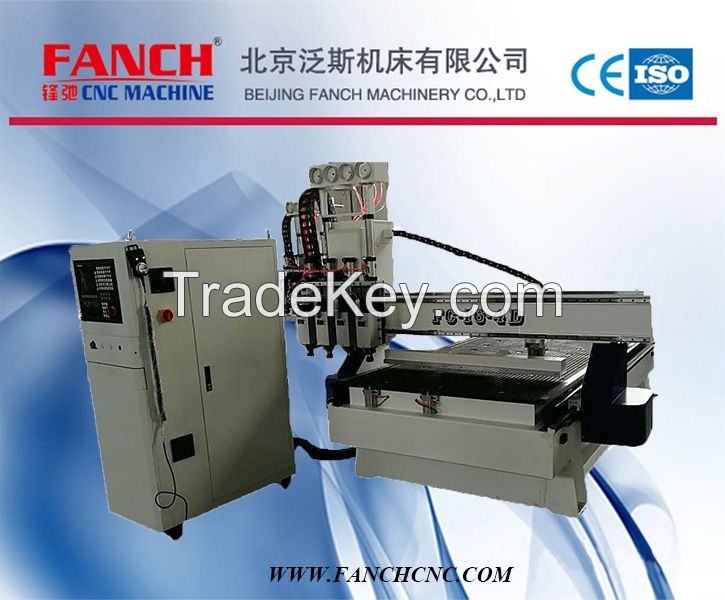

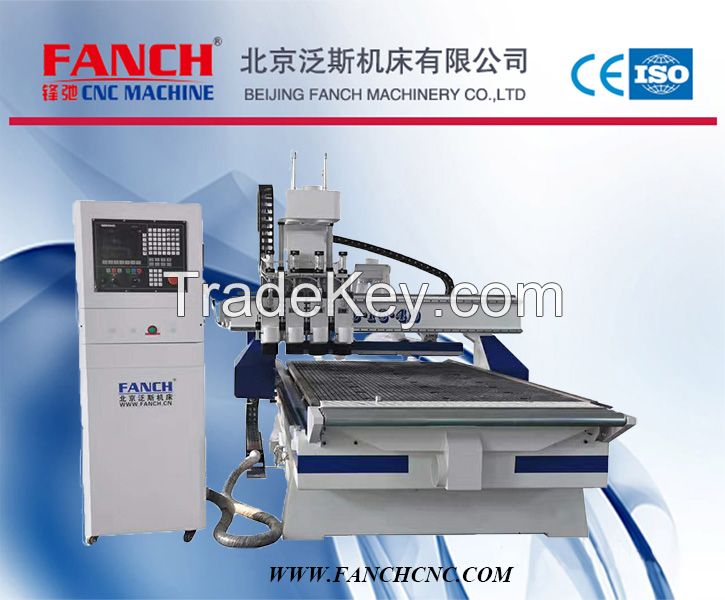

Four Heads CNC Router Machine

国家:

China

型号:

FC-I6-4D

离岸价格:

8400 ~ 8700 / Set ( Negotiable ) （面議）获取最新报价

位置:

China

最小订单价格:

8400 per Set

最小订单:

1 Set

包装细节:

Plywood Case

交货时间:

15 days

供应能力:

50 Set per Year

付款方式:

T/T

產品組 :

3-Axis CNC Router

现在联系

产品规格

X Y axis travel : 1300*2500mm Z axis travel : >200mm Table size : 1340*2500mm Resolution : Ã�Â±0.001mm Max running speed : 25m/min Max feeding height : 200mm Spindle : China 6.0KW*4 air-cooling Control system : NC Studio Spindle speed : 6000-18000rpm/min Work mode : Stepper Work voltage : AC380V/50Hz

详情

Product Catalog
Item No.: FC-I6-4D(*13002500250mm,* *China 6.0KW4 air-cooling spindle**) (This is reference picture but appearance is similar with picture)		Unit Price:FOB Tianjin Port *Package: Plywood Case MOQ: 1 set Payment: By T/T 40% down payment before production and the60% balance paid before shipment. Delivery Time: 25days Warranty: One year

Features:
Machine Bed: High-quality steel structure welding seamless Machine Parts: Aluminum casting Spindle: China 6.0KW4 air-cooling spindle Driver: Shenzhen LEADSHINE hybrid servo Motor:Stepper Transmission: Imported synchronous belt-pulley transmission Control System:* Shanghai NC Studio Inverter: Shenzhen INOVANCE Linear Guide Rail:Taiwan HIWIN 30mm (X/Y axis) and 25mm (Z axis) Rack and Pinion:TaiwanXINYUE (X/Y axis) Ball Screw:Taiwan TBI (Z axis) Working Table: Vacuum adsorption Electrical Components: French Schneider, Taiwan AirTAC
Parameters:
XY axis travel	1300*2500mm
Z axis travel	>200mm
Table size	1340*2500mm
Resolution	±0.001mm
Max running speed	25m/min
Max feeding height	200mm
Spindle power	China 6.0KW*4 air-cooling
Spindle speed	6000-18000rpm/min
Control system	NC Studio
Software operating environment	Windows98/2000/XP
Command language	G code.uoo.mmg.plt
Work voltage	AC380V/50Hz
Work mode	Stepper
