Brief Description

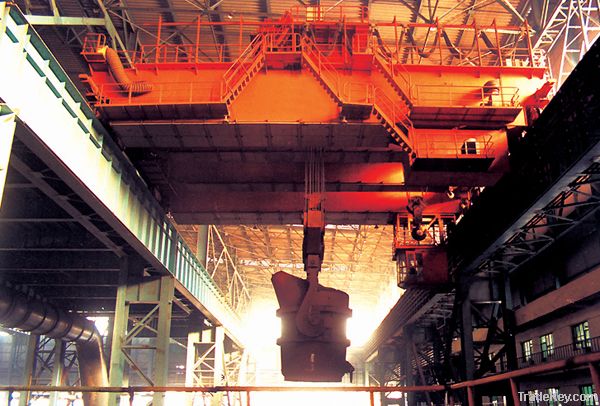

Being leading product of our
company, the main technical specification of foundry / casting
crane was drafted according to detailed requirements of many
steel plants in the mainland and around world. High working speed
of main lifting mechanism is suitable for hot loading and hot
transforming to improve work efficiency. Stator variable voltage
speed control or frequency speed control can keep the speed
within 1~*0m/min or other speed, to be quick moving and precision
location.
Characteristics
Foundry crane design and
manufacture by our company has such advantages as safety and
reliability, advanced technology, brand new structure, economic
and long-term life, easy maintenance and so on.
Crane Type
Types of foundry / cast crane
include double girder double rail type, double girder four rail
type, four girder four rail type and four girder six rail type.
Where double girder double rail and four girder four rail type
were mainly used for those of small lifting capacity (below *5t),
and the four girder six rail type mainly applicable for those of
large lifting capacity (*5t~**0t).
Type of Arrangement for Main
Lifting Mechanism
There are 4 types of arrangement
for main lifting mechanism according to lifting capacity and
mechanism arrangement as double reducer type, large reducer type,
3 reducer type (common) and planetary reducer type.
Wheel Arrangement of Traveling
Mechanism
Central arrangement of wheel, which
is suitable for the crane with lifting height is not strictly
required. Disperse arrangement of wheel, which is applicable for
the crane with lifting height is required strictly.
Other Function
- Each mechanism can be variable
speed;
- Rotary spreader;
- Distance of portal hook is
adjustable;
- Overload limit and alarm;
- Load weight and indicate;
- PLC control, failure inspect,
indication, record and print system;
- Anti-collision system to avoid
collision between crane in same span;
Main Technical
Specification
- Lifting capacity ranged from 5t
to **0t.
- The span (from rail-center to
rail-center) ranged from *5m to *0m.
- Lifting speed is of variable
speed (like 1.*8~*2.8m/min).
- Lifting height can be *8m or as
required.
- Trolley traversing speed is
depending on the SWL of the crane or the real
requirements.
- Traveling speed of the crane can
be designed according to customer’s requirements
- Controlled by operator cabin with
high-temperature proof cover.
- The working duty is A6~A8.
- Power source for double girder
overhead crane is the one of your local power. So, please let me
know it when you send your RFQ.
Material for Crane
Construct
- Material for general crane
construct is Q**5B, which should be changed into Q**5B when the
limit temperature is below **0 centigrade.
- Material for crane wheel is *2
CrMo.
- Portal hook for ladle is forged
one.
- The steel rope is flexible one or
customer’s required.
Component Used on
Crane
- Electric motor is well-known one
in China, like Jiamusi or other international one like ABB, SEW
and so on as customer’s requirement.
- Such important electric
components as breaker, contactor, and fuse are of Schneider,
Siemens and so on.
- Other ones can be followed
according to our customer’s requirement.
Design Standard
JB/T***8.******9 or equivalent
international ones
Package
- Main girder and end carriage
covered by rain-proof clothes (package can be seen in
picture).
- Other components like electric
motor, electric hoist, cable and so on in wooden box.
- Pipe pieces like handrail,
ladders are bundled and coat with yellow oil for
transportation.
- Some other package methods which
will benefit our product will also be appreciated.
HS code
******2
Delivery
- Delivery time for the crane can
be negotiated according to site requirements and our workshop
scheme.
Shipment
- Dispatch port can be Shanghai
Port, Tianjin Port or some other China port suitable for loading
of such equipment.
- Bulk cargo vessel will be used
for shipment.
- We can recommend our forwarder to
our customer, and the forward appointed by our customer is also
appreciated.
……
Generally speaking, the QDY type
foundry crane can be totally designed according to your real
requirement.
Your comments or other question,
will be much welcome!
