LED Driver Testing Panel

离岸价格

获取最新报价

1500 ~ 2000 USD / Pack ( Negotiable )

1 Piece Minimum Order

国家:

India

型号:

SMART-QC

离岸价格:

1500 ~ 2000 USD / Pack ( Negotiable )（面議）获取最新报价

位置:

最小订单价格:

1500 per Pack

最小订单:

1 Piece

包装细节:

交货时间:

3 Days

供应能力:

10 Piece per Month

付款方式:

T/T

產品組 :

LED Driver Testing

现在联系

Embuilt Technologies

India

免费会员

联系人 Ajay

Kanpur, Uttar Pradesh

现在联系

详情

AC-DC Testing Panel
Introduction:
Embuilt Technologies has developed a complete system to test Single Phase Devices and power supplies (AC-DC) such as LED Driver, SMPS, CFL, Lamp etc.
It can be used for production testing or R&D of these products.
Testing panel includes the below instruments

SPEA*1 which is a single phase power analyzer with harmonics

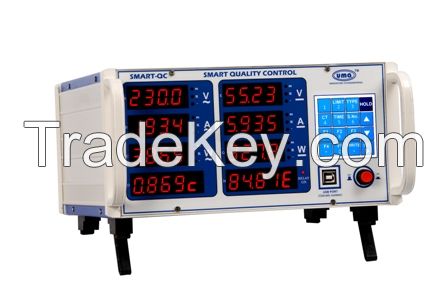

SMART-QC which is used for basic AC-DC testing.
Motorized variac to change voltage

Testing:
To select, there is selector switch (feature *1).Position the switch to the manual side. In manual testing user can test the testing model at different voltage levels by using Variac Knob (Feature *2). Readings are shown on SPEA*1 and SMART-QC display. Variable DC Loads (Feature 9) can be selected using switching controller.

Test to be conducted using this system
Various types of test can be done using this system.

PCB test To test pcb is working correctly and there is no short circuit. MCB will off on short circuit.
Voltage range test Testing on specified voltage range (Low and High).
AC Harmonics(T.H.D.) Test Test the harmonics in power supply
AC load test Test the performance on load.
AC Simulation Test all parameters of AC side.
DC test Test the DC side of power supply
DC Load test Test the power supplies at different loads.
DC Efficiency test Test the efficiency of AC-DC Converters.
Time performance test Test the power supply performance(Ex. voltage output) over time Variation (Data logging)

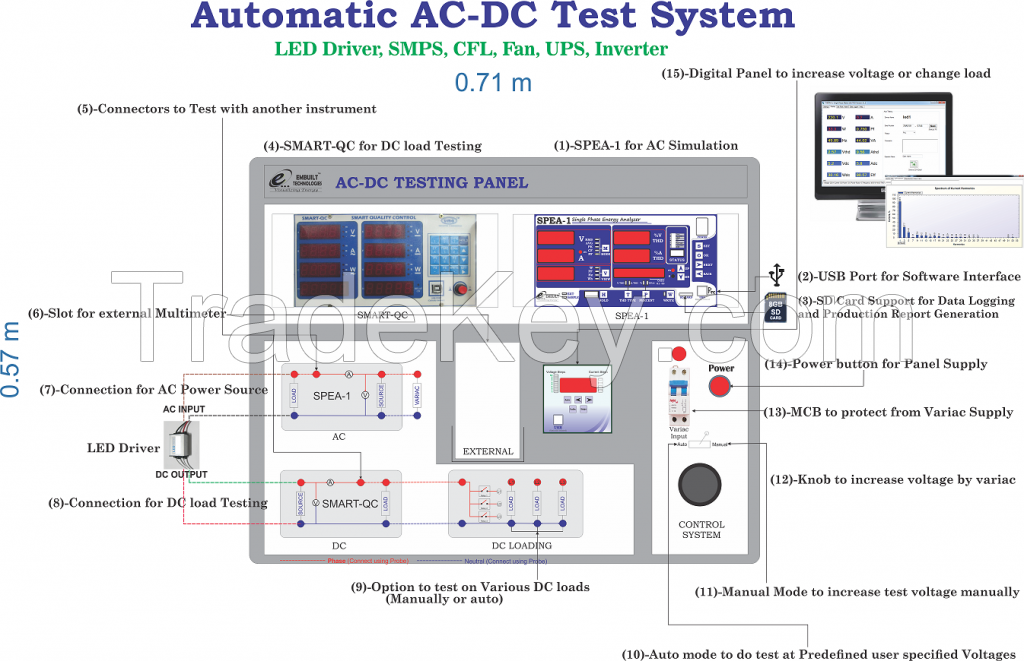

Features of AC-DC Testing system
*- SPEA*1 is AC Power Analyzer with Harmonics Measurement. It analyzes the AC power. It measures and tests all parameters with Harmonics. It also takes data from SMART-QC and show on its display and also on software.

*-SPEA*1 has USB port for software interface. SPEA*1 connects with Computer/Laptop using USB port.
Software has real time data monitoring with alarm feature. It also generates Production report.
It analyzes the AC power with harmonics spectrum and generates the PDF Report.
When RS***5 is enable it also shows SMART-QC Data and generates complete report.

*- SPEA*1 also support SD Card. Using this user can generates production report with model name and serial number.
It also used for data logging with model name. So it removes the need of computer on the testing table. By this it saves the unnecessary space.

*- SMART-QC is used for DC Testing. It tests basic AC-DC parameters with efficiency.

*- Connectors are given such as user can use another test instrument to measure voltage and current.

*- A slot is provided to hang the multimeter. This can be used for calibration purpose.
*- User has to connect the AC side of test model as given. Solid lines represent the connections are internally done. Dotted lines shows user has to connect using probes.

*- Connect the DC side of Driver (For AC-DC Converters Ex. Led Drivers)

*- Additional connectors are given at DC Load sides.
**- User can change voltage using variac. Variac works on two modes -Auto and Manual.
In auto mode user has to press Auto on the switching controller. The Voltage will change according to the values set by user.
User can also user switching controllers UP and Down Button to change voltage levels.

**- When in manual mode, User can change voltage by rotating variac knob.

**- Smooth Variac knob is provided, so that user can change voltage with a constant rate.

**- Variac output is connected to MCB, so that if any fault occurs on testing it will protect from damage.

**- A power is provided to ON/OFF the whole system power supply.
