Signal Hound BB60C / BB60D 6 GHz Real-time Spectrum Analyzer Signal Hound BB60C — 6 GHz Real-time Spectrum Analyzer

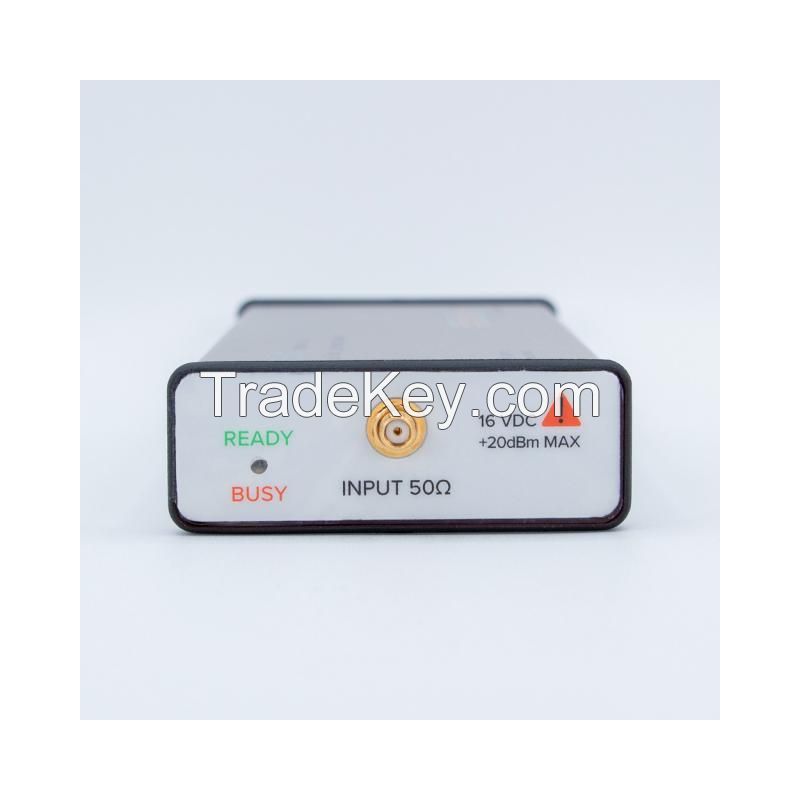

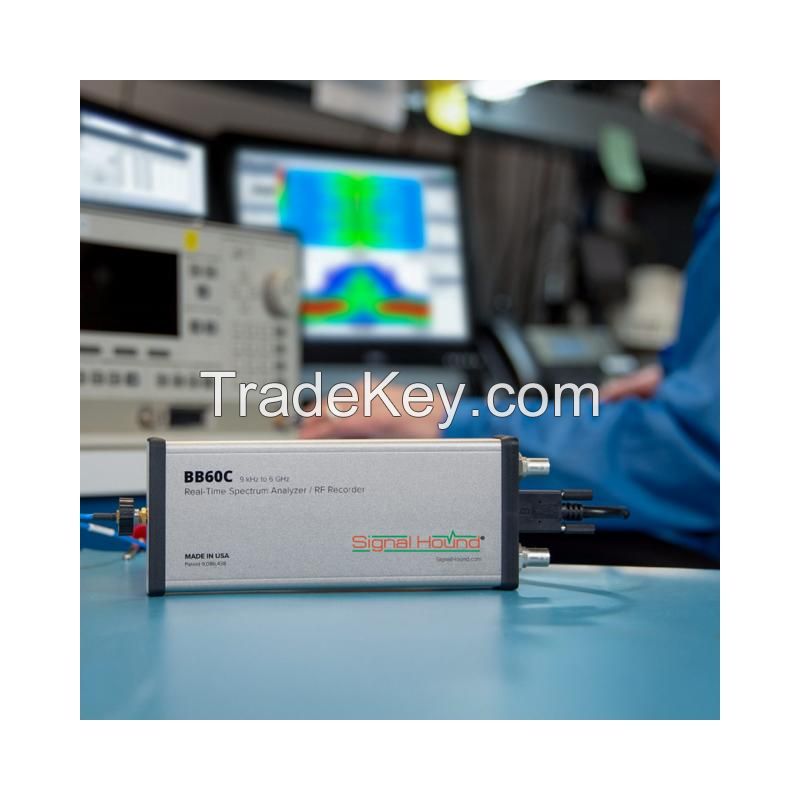

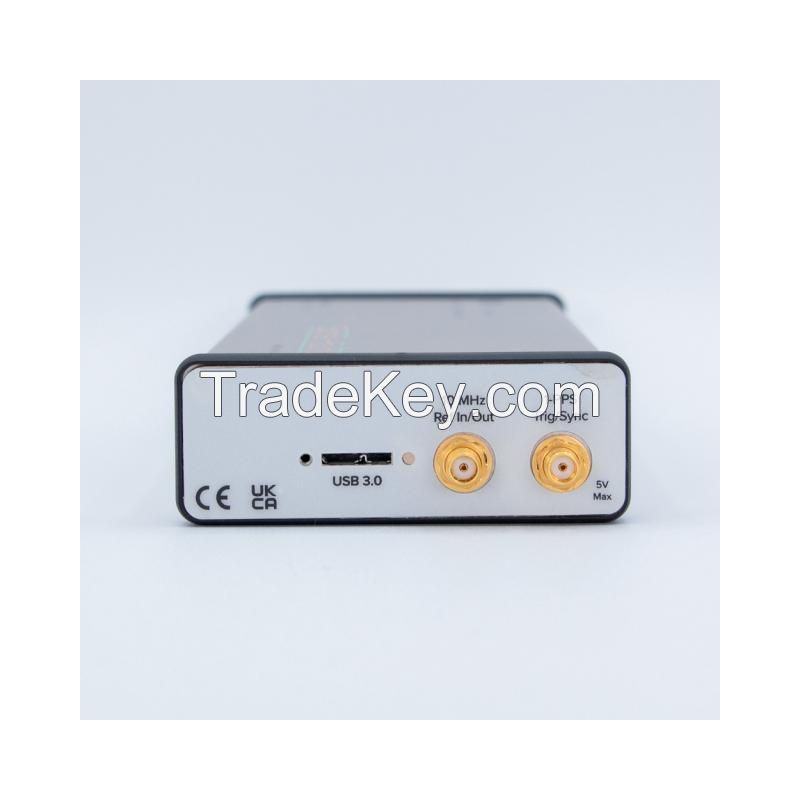

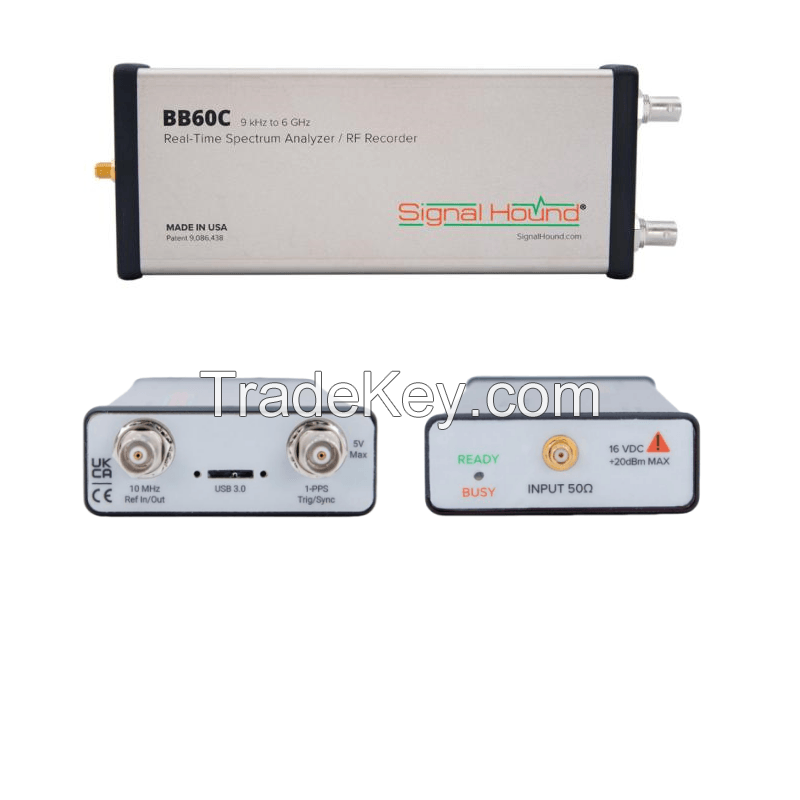

The Signal Hound BB60C Real-Time RF Spectrum Analyzer and Recorder is a 9 kHz to 6 GHz spectrum analyzer and RF recorder with an instantaneous bandwidth of 27 MHz and sweep speeds of 24 GHz/sec.

NSN: 6625-01-656-1527 (Standard, not Opt 1)

The BB60C real-time RF spectrum analyzer streams 140 MB/sec of digitized RF to your PC utilizing USB 3.0, providing an instantaneous bandwidth of 27 MHz and sweep speeds of 24 GHz/sec.

The BB60C improved performance over previous versions, including:

• 20 dB improvement in spurious-free dynamic range (SFDR)

• Noise floor and band transition flattening by more than 8 dB

• Extended temperature range from 40°C to +65°C (previously 0°C to +50°C)

The BB60C design has been tested for:

• 3-hour cold soak at 40°C

• 24-hour hot soak at +65°C

The BB60C also adds new functionality with configurable I/Q streaming bandwidths.

Using the proprietary API, it can perform up to 1.2 million FFT spectrums or 320 million FFT points per second, delivering real-time spectrum data to the Spike software or to your own software.

The BB60C is ideal as an RF recorder. Variable I/Q sample rates allow fine control over recorded bandwidth. Data rates are selectable from 312.5 k to 40M samples/second with configurable bandpass filters.

Spike software includes a 2D waterfall and color persistence display. Normally unseen transient events become visible. Color persistence highlights intermittent signals.

If GPS time stamping is required, the BB60C supports a 1-PPS providing 50 ns (4 sample) timing accuracy.

• RF frequency range: 9 kHz to 6 GHz

• Sweep speed up to 24 GHz/sec

• Dynamic range: 158 dBm to +10 dBm

• Resolution bandwidth: 10 Hz to 10 MHz

• USB powered—no external supply needed

• DSP processing on the PC

• Software and hardware included

• API for custom applications

• Digitized IF data at 80 million samples per second

• 27 MHz instantaneous bandwidth

• Windows 7/8/10 64-bit compatible

• USB 3.0 interface (140 MB/sec sustained throughput)

• Under 9 inches long

• Weight: 1.10 lb (0.5 kg)

• Dimensions: 8.63" × 3.19" × 1.19" (21.9 × 8.1 × 3 cm)

• Weight: 1.10 lb (0.5 kg)

• Dimensions: 8.63" × 3.19" × 1.19" (21.9 × 8.1 × 3 cm)

• Weight: 1.84 lb (0.83 kg)

• Dimensions: 10.25" × 5.44" × 3.13" (26.04 × 13.8 × 7.95 cm)

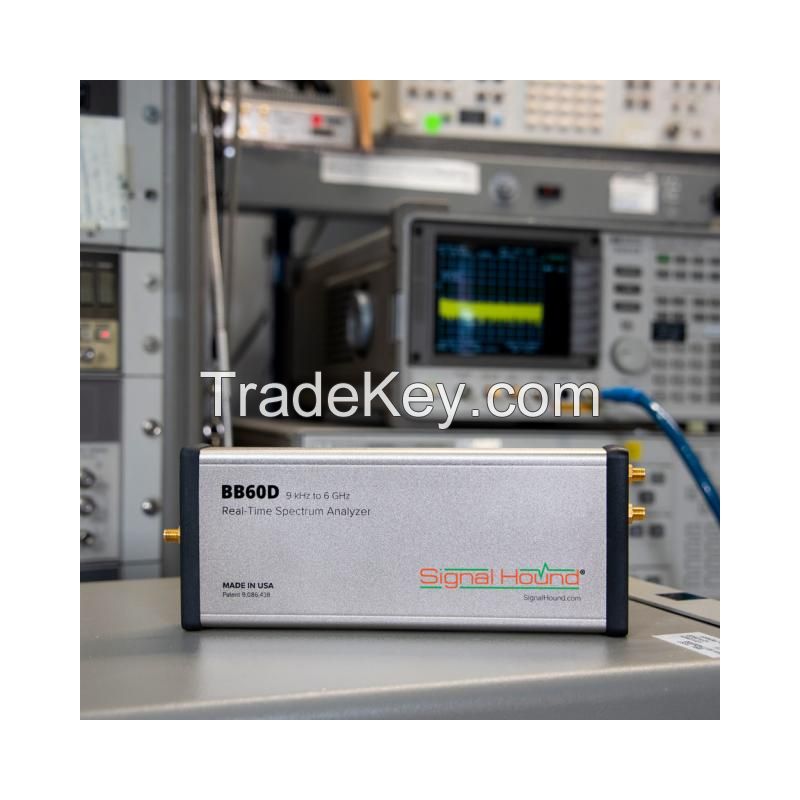

The BB60D is a high-performance 6 GHz real-time spectrum analyzer featuring a preselector and 10 dB more dynamic range compared to the BB60C.

The BB60D includes all the capabilities of the BB60C, plus:

• 10 dB improved dynamic range

• Preselector filters from 130 MHz to 6 GHz

The BB60D streams 140 MB/sec of RF data via USB 3.0 with 27 MHz instantaneous bandwidth and 24 GHz/sec sweep speed.

With a fast storage drive (250 MB/sec sustained write), the BB60D can record:

• Up to 80 million IF samples/sec

• Up to 40 million I/Q samples/sec

The API delivers:

• Up to 1.2 million FFT spectrums/sec

• 320 million FFT points/sec

The improved selectivity and dynamic range make it ideal for dense RF environments and weak-signal detection. With a 30 dBm reference level, you can see all the way down to DANL.

Spike analyzer software is included, offering:

• GPU-accelerated color persistence

• Multiple analysis views

• LTE and RF mapping capabilities

• Weight: 1.10 lb (0.5 kg)

• Dimensions: 8.63" × 3.19" × 1.19" (21.9 × 8.1 × 3 cm)

• Weight: 1.10 lb (0.5 kg)

• Dimensions: 8.63" × 3.19" × 1.19" (21.9 × 8.1 × 3 cm)

• Weight: 1.84 lb (0.83 kg)

• Dimensions: 10.25" × 5.44" × 3.13" (26.04 × 13.8 × 7.95 cm)
