CE

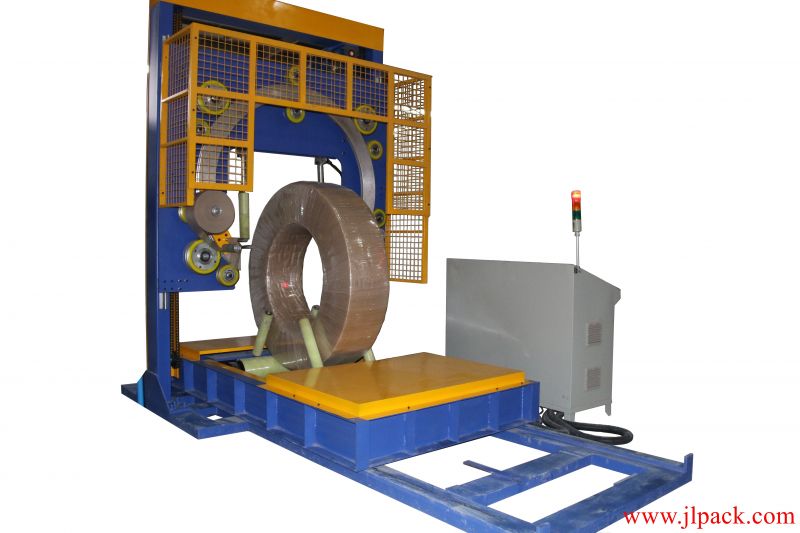

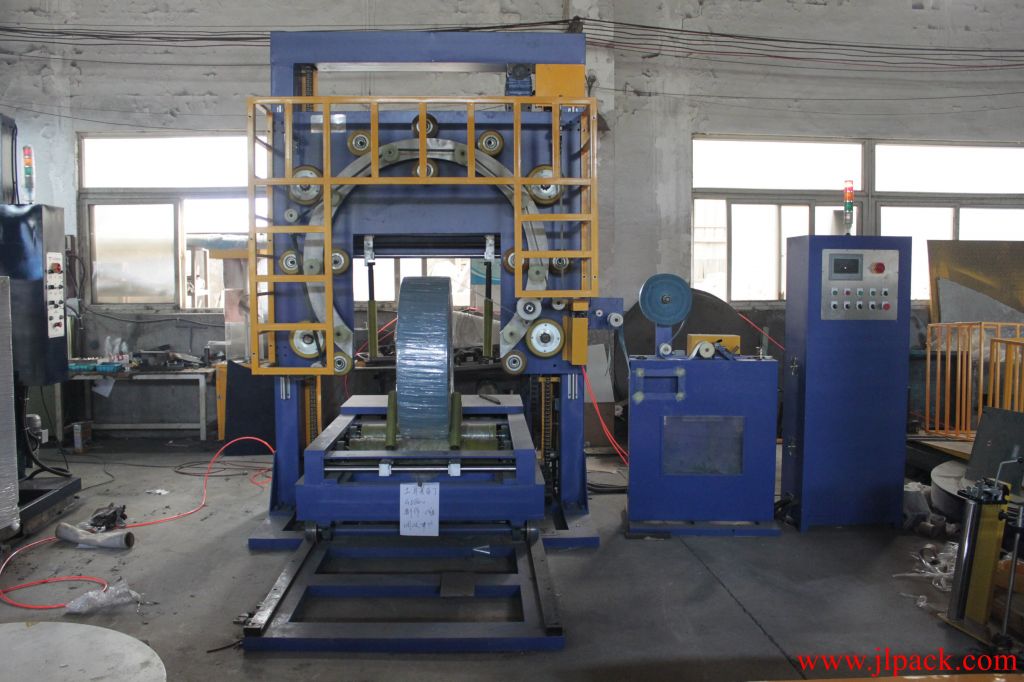

certified automatic tyre wrapping machine, tires packing
machine
Application:
This tire packaging machine is mainly
designed for tire packing and can also been widely used
for other coiled objects like steel coil, wire coils,
pipe coil, bearings, hose wire coil wrapping
machine, etc.
This tire wrapping
machine is
with safe and easy operation, which
can
highly reduce high cost labor force and enhance working
efficiency for modern industry.
Wrapped
tire is well-protected & sealed & beautiful &
looks tidier. Further more, it has waterproof, dust proof, rust
proof, wear proof, anti-aging effect and
etc.
Basic
features:
1.PLC is used for
easy operation.
2.Vertical mode is convenient for coil loading
& unloading by hand.
3.Error indicator will be flicker when
trouble occures.
4.Packing time can be set on the control
panel, when time reached, machine will stop
automatically.
5.Adopt special tension control device for
good packing effect.
6.Baseboard height is adjustable for
small and big coils' package.
7.Friction wheel using anti-wear polyurethane
to prolong usage life.
8.Synchronous packing (two kinds of
packing materials packed together) is
available.
9. Push-out device is optional for heavy
object easy taking out.
Specifications (only for
reference):
| ITEMS | GS300 | GS450 | GS800 |
| Object weight | ≤500kg | ≤1000kg | ≤2000kg |
| Object height | ≤300mm | ≤450mm | ≤800mm |
| Object OD | 500-1000mm | 600-1200mm | 1000-2000mm |
| Object ID | ≥300mm | ≥400mm | ≥700mm |
| Roller speed | 2-4m,min | 2-4m,min | 2-3m,min |
| Ring speed | 30-50r,min | 30-50r,min | 20-40r,min |
| Suitable material | Knit tape,paper tape etc. | Knit tape,paper tape etc. | Knit tape,paper tape etc. |
| Material width | 100-150mm | 100-150mm | 150mm |
| Material OD | 150mm | 150mm | 200mm |
| Material ID | 54mm | 54mm | 54mm |
| Power output | About 3.0kw | About 4.5kw | About 6.0kw |
| Power voltage | 380V, 50HZ | 380V, 50HZ | 380V, 50HZ |
