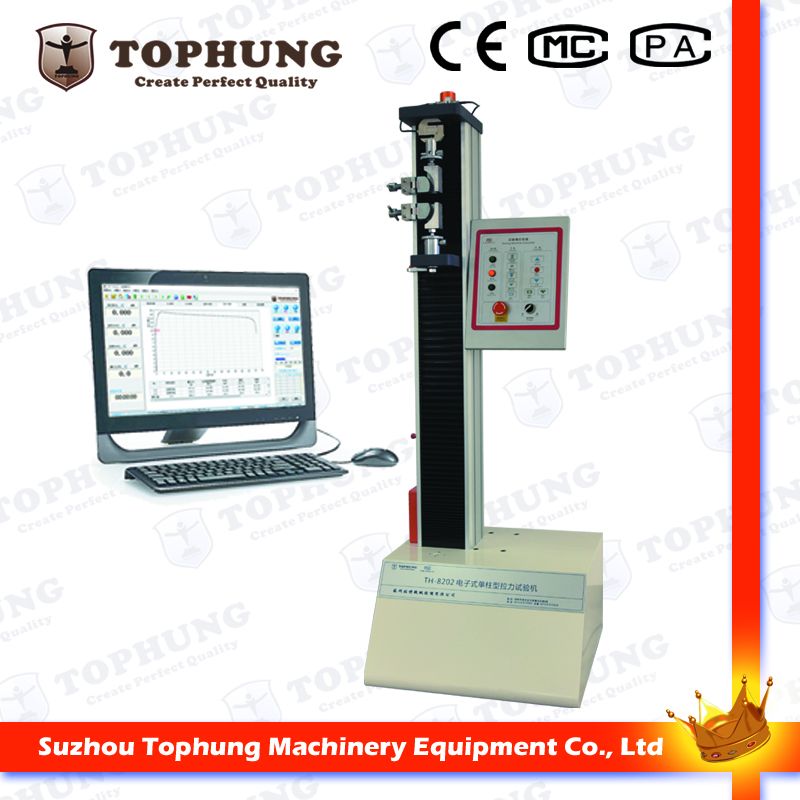

Name：TH - ***2S single column computer servo control tensile testing machine
Summary：
TH****2S single column computer servo control tensile testing machine during testing is a full digital power, displacement, speed three closed-loop control, using the Imported AC Servo Motor and control-driven system, with Italy Haitec gear box and Taiwan TBI Precision Ball screw drive, to achieve transmission efficiency and noise ratio of the best results.
This machine mainly used for detection of rubber and plastic, wire and cable and etc :tensile, peeling, tearing and other performance.  At the same time according to GB, ISO, JIS, ASTM, DIN, and provide a variety of standards testing and data processing.
This machine is widely used in plastic and rubber, wire and cable, electronic product, textile materials and clothing testing analysis.  Scientific research institutes, universities, industrial enterprises, technical supervision, inspection and arbitration departments ideal test equipment.

Technical Specifications:
A、  Main technical parameters:
1、  Capacity：**0N、**0N、**0N、1kN、2kN、5kN；
2、 Accuracy class：0.5 Level；
3、 Load range：0.5%***0%FS；
4、 Load accuracy：within ±0.5%；
5、 Load resolution：1/±*****0 of capacity；
6、 Deformation measurement range：0.2%***0%FS；
7、 Deformation allowed value deviation：within ±0.5%；
8、 Deformation resolution：0.***1mm；
9、 Displacement value deviation：within ±0.5%；
*0、 Displacement resolution：0.***5mm；
*1、 Loading speed range：0.***5%FS/s；
*2、 Loading speed accuracy：Better than ±1% of setting；
*3、 Deformation speed range：0.***5%FS/s；
*4、 Deformation speed accuracy：better than ±1% of setting；
*5、 Crosshead speed：0.******0mm/min；
*6、 Displacement speed accuracy： within ±1.0% of setting;
*7、 Effective tensile width：**0mm；
*8、 Effective space：***0mm（excluded fixture）；
*9、 Dimension：**0×**0×***0（mm）；
*0、 Net Weight：**0kg；
*1、 Power supply：AC **0V,**0W.

B、 Control and data processing software features:
1、 Advanced chip integration technology, professional design of data acquisition amplification system with high integration, stability and reliability, and simplicity.  Control software can automatically obtain Tensile strength, Yield strength, Breaking strength, Elastic modulus and Elongation test data, open the formula editor can automatically calculate the course of any given test point force, stress, displacement, deformation, etc. data results.  The trial process control and data processing line with the corresponding metal materials and nonmetal materials, national standards.
2、 Control: Set speed, Set displacement, Set load ,Set Load growth rate , Set growth rate of stress, Set Strain, Set Growth rate of strain control by way of optional;
3、 Automatic reset: After the trial began, auto-zero measurement system;
4、 Automatic transmission: According to the load size automatically switch to the appropriate range to ensure the accuracy of measurements;
5、 Auto Save: automatic test data and test conditions for Save, Save forget to eliminate because of data loss caused;
6、 Volume test: the samples of the same parameters, after a set number of tests completed in turn;
7、 Display: curve with the experimental data and the process of dynamic display;
8、 Curve traversal: After the test, can re-curve analysis of the experimental curves with the mouse to identify points on the corresponding data;
9、 Curve selection: choose the stress - strain, force - displacement, force - time, displacement - time curve display and printing;
*0、 Units switch: power units: (g, kg, N, lb), stress units: (kg/mm2, N/mm2, Mpa , lbf/in2) displacement units: (m, mm, in)
*1、 Test Report: Users can request the test report format of the programming and printing, and can export WORLD、EXCEL 、PDF documents;
*2、 Safety protection: over the maximum load of 2 to *0%, the automatic realization of security;
*3、 Can automatically detect, calculate the mechanical properties of the sample index, the analysis process can be manual intervention, according to the requirements of relevant standards to amend the automatic results to improve the accuracy of the data;

Random Standard accessories:
1、 load sensors: U.S. MKCELLDS load cells, 5kN  1 set;
2、 Disp. sensor system: Optical Encoder  1 set;
3、 Data processor:TM***0 *4 bit closed-loop measurement control board  1 set;
4、 Test Software: TM***1 measurement control system English/version 1 set;
5、 Power System: AC Servo Motor and control drive system  1 set;
6、 Transmission: Italy Haitec Gearbox and TBI precision ball screw 1 set;
7、 Test Fixture: According to the customer's samples to develop test fixture 1 set;
Other options:( Extra charge)
1、Windows 7 test software(English version)
2、Data analysis special compute
