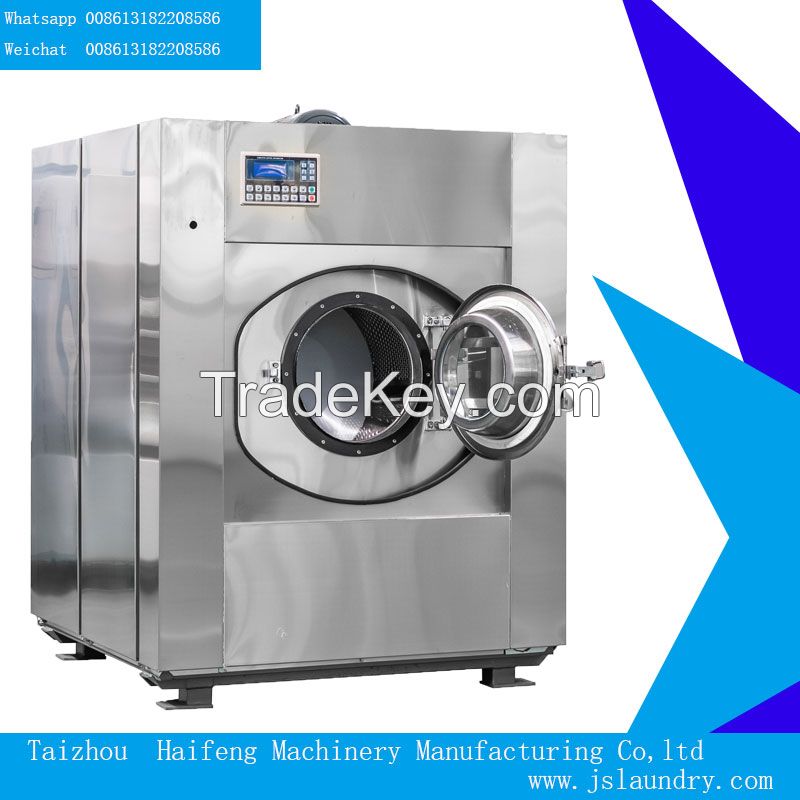

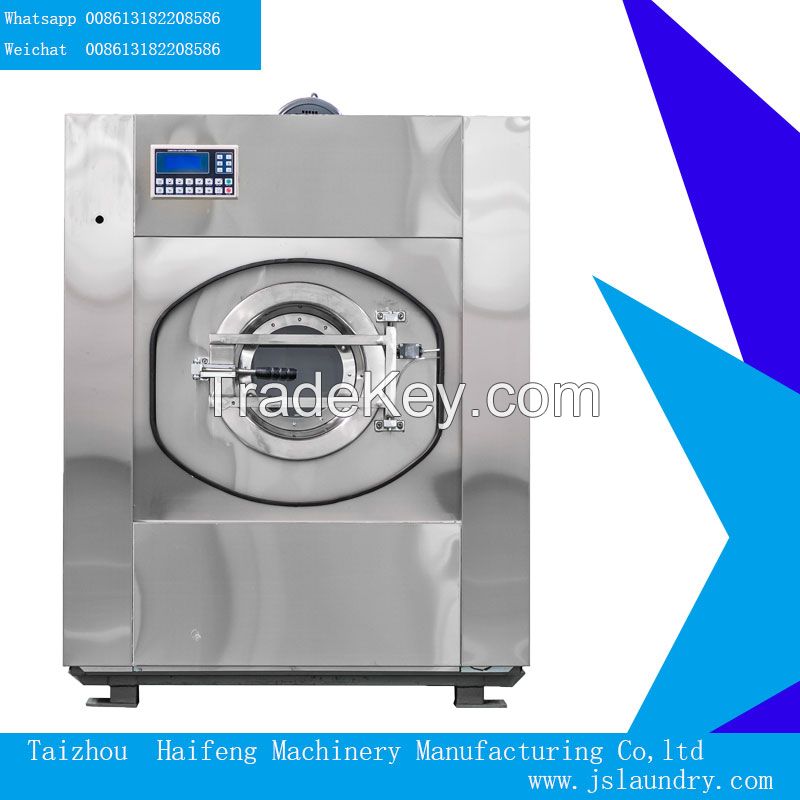

XQG series washer extractor is the newest generation of full
suspension type industrial washing and extracting machine, widely
used in hotel, hospital, university, school, railway station and
laundry.
●Compact design for space
saving
●Suspension system with
springs and shock absorbers
●Patented silicone door
seal.
●SUS304 Stainless steel
basket and outer drum.
●Frequency inverter drive
from Invert /LS.
●High extraction speeds up
to 350G.

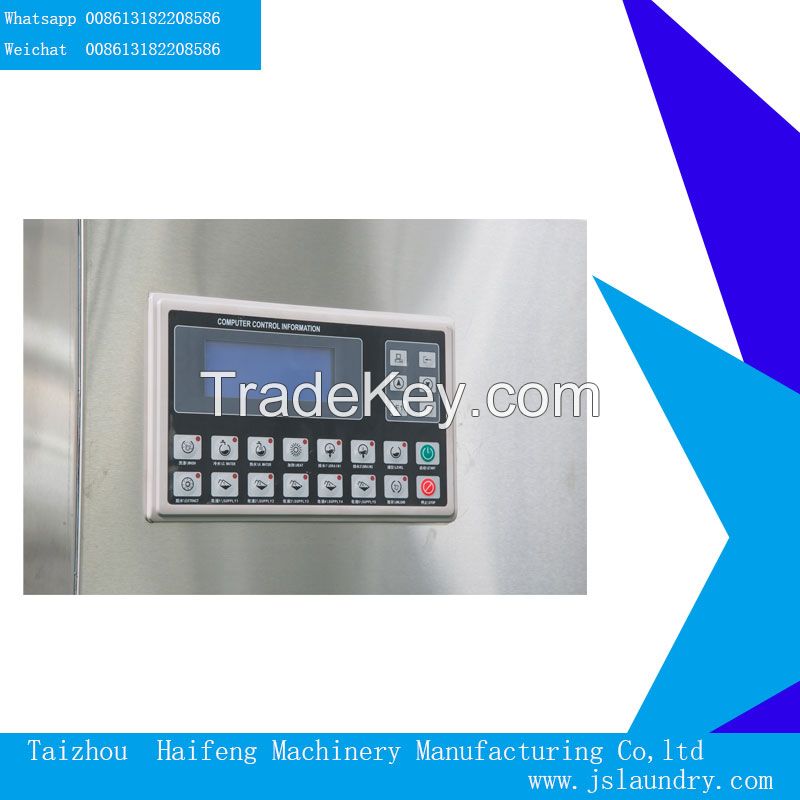

●Programmable computer up
to 30 wash programs
●Programmable water
levels, temperatures and cool-down
●Direct steam injection
heating.

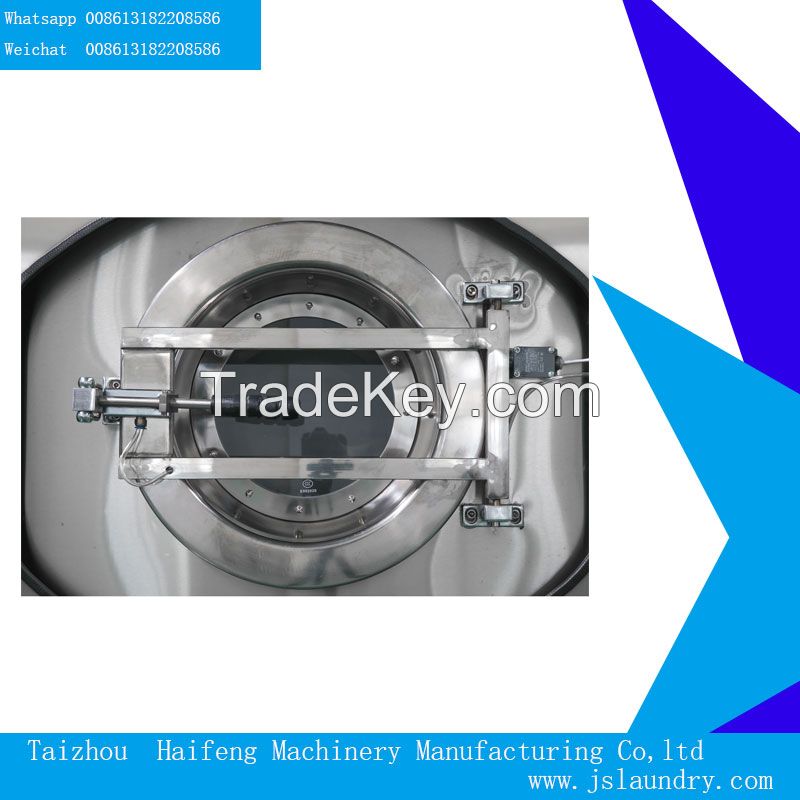

●Safety door interlock
system.
●Stainless steel
panels.
●Built-in bearing
lubrication system.
| 型号 Model | XGQ-15F | XGQ-20F | XGQ-25 | XGQ-30F | XGQ-50F | XGQ-70F | XGQ-100F |
| 容量 Rated capacity | 15KG | 20KG | 25 | 30kg | 50kg | 70kg | 100kg |
| 内筒尺寸 Drum | 670*450 | 750*450 | 750*550 | 900×470 | 1080×600 | 1080*720mm | 1200×840 |
| 电机功率 Motor power | 1.5kw | 2.2kw | 2.2kw | 3kw | 4kw | 5.5kw | 7.5kw |
| 洗涤速度 Rotation | 40rpm-800rpm | 40rpm-800rpm | 40rpm-800rpm | 40rpm-800rpm | 38rpm-720rpm | 84rpm-650rpm | 33rpm-650rpm |
| 变频器功率 Inventor power | 1.5kw | 2.2 kw | 3.7 kw | 3 kw | 4kw | 5.5 | 11 kw |
| 电加热功率 Electricity heating power | 6 kw | 6kw | 9 kw | 24 kw | 24kw | 24kw | 48kw |
| 进水管 Water inlet | DN20 | DN20 | DN20 | 11/2 | 3/2 | 3/2 | 11/2 |
| 进汽管 Steam inlet | DN20 | DN20 | DN20 | 3/4 | 1 | 1 | 1 |
| 加料杯 Chemicals inlet | DN20 | DN20 | DN20 | 1/2 | 1/2 | 1/2 | |
| 外形尺寸 Overall dimension | 1100*1000*1580 | 1100*1000*1580 | 1100*1120*1580 | 1350*1340*1700 | 1620*1600*1600 | 1850*1600*1720 | 1600*1870*2000 |
| 重量 Weight | 600kg | 700kg | 750kg | 890kg | 2000kg | 2500kg | 3200kg |
| 国家: | China |
| 型号: | - |
| 离岸价格: | ( Negotiable ) 获取最新报价 |
| 位置: | Made In China |
| 最小订单价格: | - |
| 最小订单: | 1 Set |
| 包装细节: | Wooden Cases |
| 交货时间: | 7 Days |
| 供应能力: | - |
| 付款方式: | - |
| 產品組 : | Washer extractor |
