Impact Crusher Overview
Devo Machinery impact crushers are powerful in size reduction for crushing of stone, ore, limestone, rock, and refractories.The final products of impact crusher are of good cubic shapes and are fine for railway, road construction and other industries. Our impact crushing equipments are accurate, reliable and have perfect performance. We manufacture and supply portable, stationary impact crushing plants and equipments.
Impact crusher Main
Parts
Impact Crusher is made up of first
stage impact curtain with anvils, impact curtain adjusting rods,

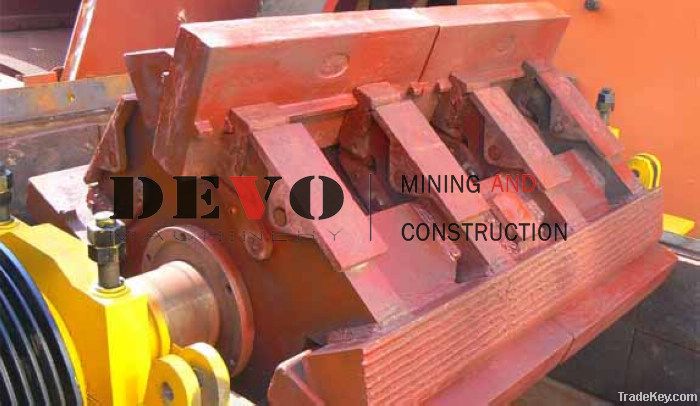

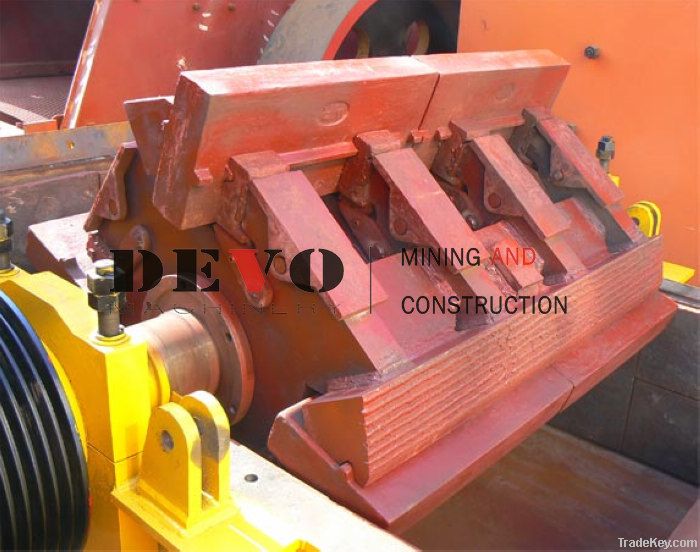

second stage impact curtain with anvils, rotor, blow bar ,wedge
lock assembly, back-up bar, discharge opening, third stage impact
liner plate etc.
Impact Crusher Working
Principle
When the
materials enter the field of the hammer,it is impacted by the
hammers, thrown onto the impact plate, and crushed. The material
springs from the impact plate, is impacted by the hammers again,
and thrown onto impact plate. This process will last until the
material meets the requirement and falls from the
machine.
Adjusting the distance between impact frame and rotor frame can
change the shape and size of the output. When some foreign
material enters the machine, the impact frame will fallback, the
material falls from the machine. This device can prevent machine
from damage.
| Model | Spec.(mm) | Max.Feed Size(mm) |
Feeding Opening (mm) |
Motor Power (kw) |
Capacity (t/h) |
Weight (t) |
Overall Dimenstion (LxWxH) (mm) |
| PF****0 | Φ***0x***0 | **0 | **0x***0 | *5 | *****0 | *0 | ***0 x ***0 x ***0 |
| PF****0 | Φ***0x***0 | **0 | **5x***0 | **0 | ******0 | *4 | ***8 x ***3 x ***0 |
| PF****4 | Φ***0x***0 | **0 | **5x***0 | **2 | *******0 | *8 | ***0 x ***0 x ***0 |
| PF****5 | Φ***0x***0 | **0 | **0x***2 | **0 | *******0 | *9.3 | ***7 x ***8 x ***6 |
| PF****6 | Φ***0x***0 | **0 | **0x***0 | **0 | *******0 | *9.5 | ***6 x ***0 x ***7 |
| PF****0 | Φ***0x***0 | **0 | **0x***0 | **0 | *******0 | *9.7 | ***0 x ***0 x ***3 |
| PF****5 | Φ***0x***0 | **0 | **0x***0 | **5 | *******0 | *8.3 | ***0 x ***5 x ***7 |
| 国家: | China |
| 型号: | PF1210 |
| 离岸价格: | 15000 ~ 50000 / Unit 获取最新报价 |
| 位置: | China |
| 最小订单价格: | 15000 per Unit |
| 最小订单: | 1 Unit |
| 包装细节: | Export Standard Packing |
| 交货时间: | 10 days |
| 供应能力: | 90 Unit per Month |
| 付款方式: | Western Union, D/P, L/C, T/T |
| 產品組 : | Stone Crusher |
