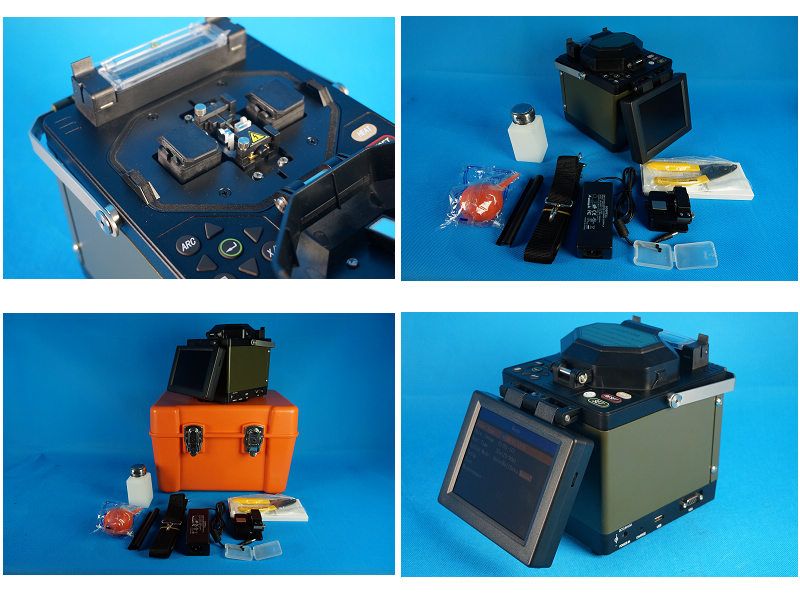

fusion splicing machine

JX***0 is an optical fiber splicing device with a brand new design. With powerful functions and super low splicing loss, it is highly competent for construction of trunk lines and FTTx. Lightweight and compact, it is easy to use even in confined space. The novel fiber imaging system makes the image clearer. The real-time embeded Operating System provides a friendly man-machine interface and abundant functions. The built-in large capacity Li-Ion battery can support long-time field work. The real-time compensation system for temperature, humidity and air pressure has greatly enhanced the device against unfavorable environment changes and thus guarantees its consistency of low loss splicing in various environments.

Main Features:
ο New fully-digitalized design;
ο Small in size, lightweight: only 2.8kg with battery;
ο Takes only 8 seconds for splicing,*5 seconds for pyrocondensation;
ο Can set automatic start of splicing or of pyrocondensation upon close of the cover;
ο Simultaneous display of X/Y axis; zoom in up to **4 times original size;
ο Real time discharging for adjustment; no need for further adjustment;
ο Electrode has a long life; discharging times up to ***0;
ο With USB and VGA ports;
ο 5.7 inch digital high resolution LCD;
ο Precise real-time display of remaining battery capacity;
ο Built-in high capacity battery, which enables up to **0 times of splicing and heating;

Technical Highlights:
HD Optical Image Acquisition System
ο HD aligner for double separate optical fibers
ο High performance CMOS sensor
ο Sensor pixels **0***0

Len Imaging Optical Fiber Aligning System
ο Fast evaluation of fiber profile
ο Precise fiber alignment
ο Precise evaluation of splicing loss

Real-time Discharging Correction System
ο High performance discharging electrode
ο AC-DC mix discharging technique
ο Current feedback and environment compensation

Typical Application:
JX***0 Fiber Splicer is mainly applied in fiber cable construction, fiber line maintenance, emergency repair of fiber cables and tests and production of optical fiber components.

Technical Parameter:

Indent Information:
Main body: JX***0
Standard equipment:

Optional equipment:
