splicing machine

详情

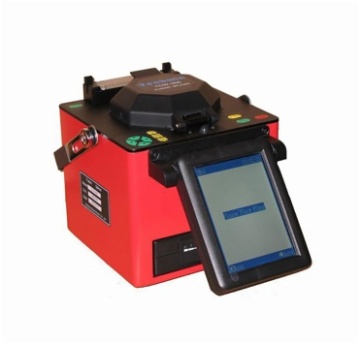

The Fusion Splicer TCW***5 Series adopt high-speed image processing technology and special precision- positioning technology, automatically finish the whole process of fiber fusion in 8 seconds typically, digital LCD monitor displays all steps of fiber fusion clear at a glance. Widely used for SM and MM Quartz Fiber with diameter **5μm, coating layer diameter 0.**1.5mm and bare fiber length *6mm more or less. Ideal tools for construction and maintenance of fiber and cable in both field and laboratory applications. Support Chinese, Japanese, Germany, Spanish, Russian, Korea, Portuguese, French, English etc. Features Core to core fiber alignment system (PAS) Both X and Y axis display Large multiple & visible fiber core Turn-over display screen to use conveniently Inner light to set fiber at night Auto check end-face of fiber Auto calculate splicing loss Auto select suitable fusion program Small bulk and light weight & alternating /Direct Current available Screen menu for simple operation Concave weatherproof cover & Max. wind velocity of *5m/s Technical Specifications Optical Specifications TCW***5 Application SM(ITU-TG.**2), MM(ITU-TG.**1), DS(ITU-TG.**3), NZDS(ITU-TG.**5)CS , ED SM cord ***4?m, MM cord *0/*2.5?m, **5?m outer diameter (standard), Fiber cleaved length:*6mm Specifications Average splicing loss: 0.*1dB MM/0.*2dB SM (standard measure) Typical splicing time:8s, Typical heating time:*0s, wave-return loss better than *0dB Program *0 units factory setting SM program, *0 units factory setting MM program, and *0 units user setting SM program, *0 units user setting MM program Storage ***0 results Data Transmission RS***2 Heater Inner heater, Optional outer heater, can heat 4 protecting sleeves at same time Screen Display Display X-axis and Y-axis at the same time, display current time and date, display current work mode Work mode Program/Splicing/Heating: Automatio
