离岸价格
获取最新报价15.56 ~ 10.98 USD / Piece ( Negotiable )
|100 Piece Minimum Order
国家:
China
型号:
4FBCC**-15
离岸价格:
15.56 ~ 10.98 USD / Piece ( Negotiable ) 获取最新报价
位置:
China
最小订单价格:
15.56 per Piece
最小订单:
100 Piece
包装细节:
Standard packing or according to customers request.
交货时间:
15-20 working days
供应能力:
10000 Piece per Month
付款方式:
Other, PayPal, Western Union, T/T
產品組 :
联系人 Mr. bill
Changan, Dongguan, Guangdong
|

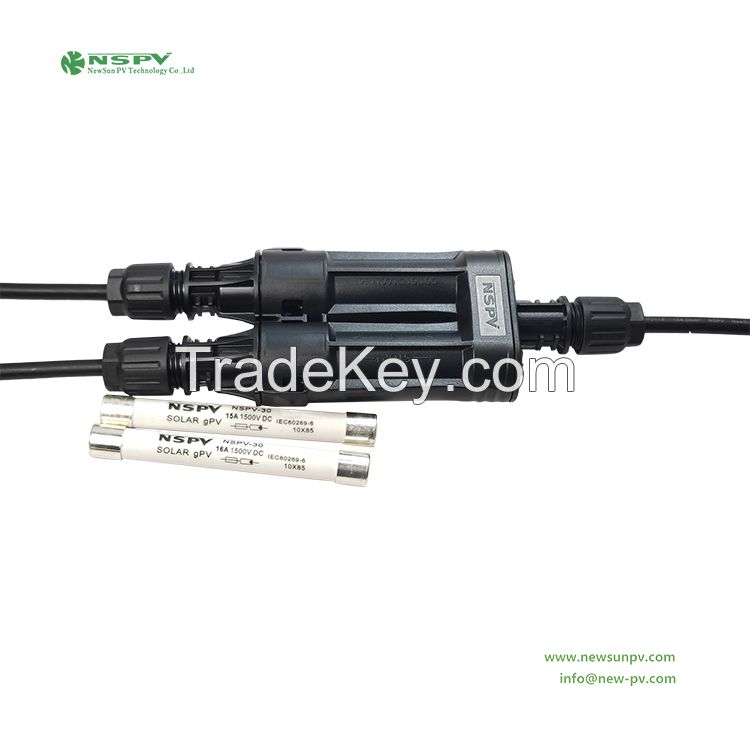

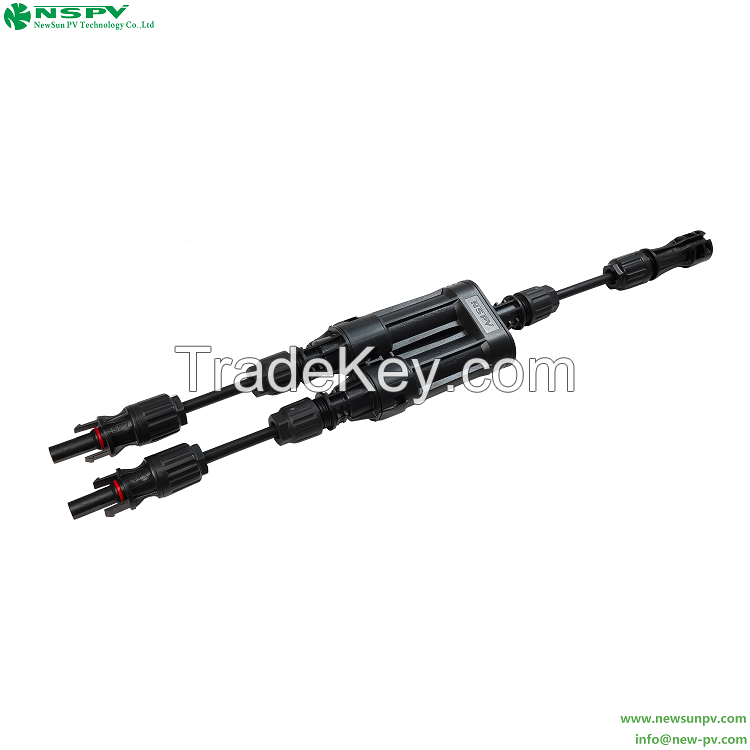

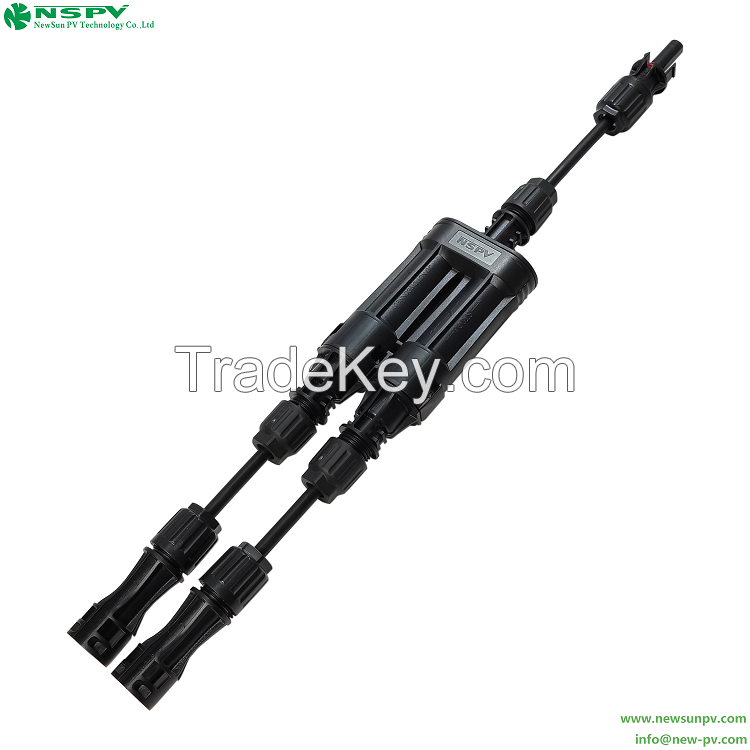

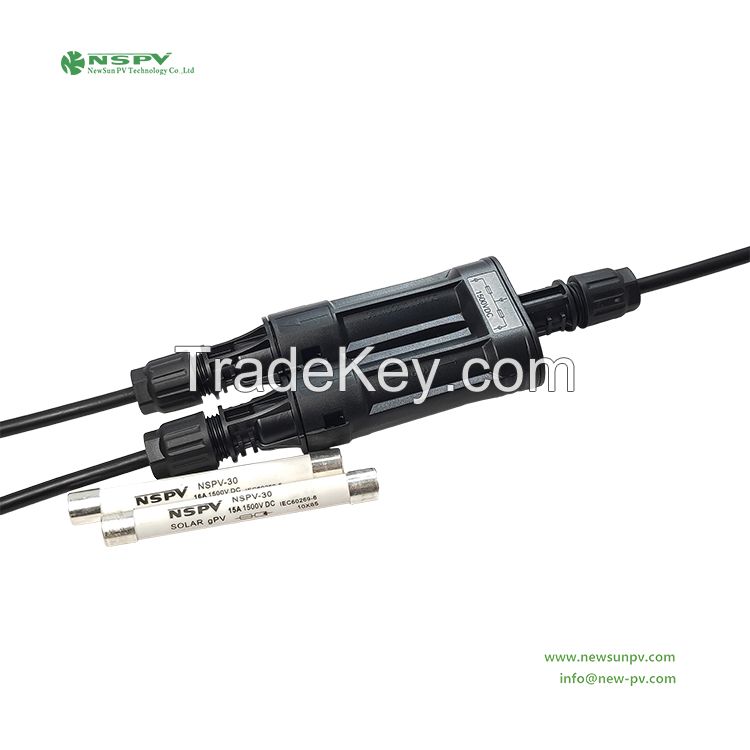

1500VDC 2in1 solar
inline fuse connector 4FBCC00-15/4FBCC01-15/4FBCC02-15/4FBCC03-15 Note: Prices excluding fuse. |
|||||||||
| Product Specifications | |||||||||
| Insulation material | PPE/PA | Fuse Specification | 1A,2A,3A,3.5A,4A,5A,6A,8A, 10A,12A,15A,16A,20A,25A,30A,32A,35A,40A,45A,50A | ||||||
| Rated current(Without fuse) | Max. Input:30A Max. Output:60A | Safety degree | II | ||||||
| Rated voltage | 1500VDC | Flame class | UL94-V0 | ||||||
| Maximum voltage | 8kV | Ambient temperature range | -40℃…+85℃(IEC) | ||||||
| Contact resistance | ≤0.25mΩ | Upper limiting temperature | 110℃(IEC) | ||||||
| Contact material | Copper,Tin plated | Suitable cable cross sections | 4-10sqmm cable | ||||||

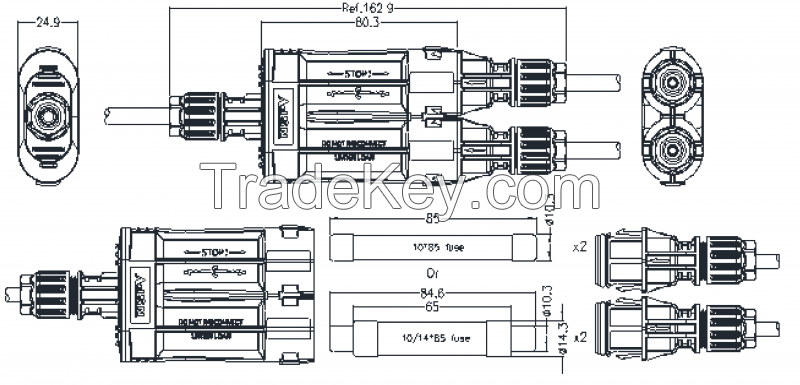

| Degree of protection | IP68 | Suitable for fuse size(mm) | 10*85/10/14*85 | ||||||
| Rated Impulse voltage | 16kV | Regulatory approval | TUV/CE (EN60269/EN62208) | ||||||
| 国家: | China |
| 型号: | 4FBCC**-15 |
| 离岸价格: | 15.56 ~ 10.98 / Piece ( Negotiable ) 获取最新报价 |
| 位置: | China |
| 最小订单价格: | 15.56 per Piece |
| 最小订单: | 100 Piece |
| 包装细节: | Standard packing or according to customers request. |
| 交货时间: | 15-20 working days |
| 供应能力: | 10000 Piece per Month |
| 付款方式: | Other, PayPal, Western Union, T/T |
| 產品組 : | Branch fuse connector |
