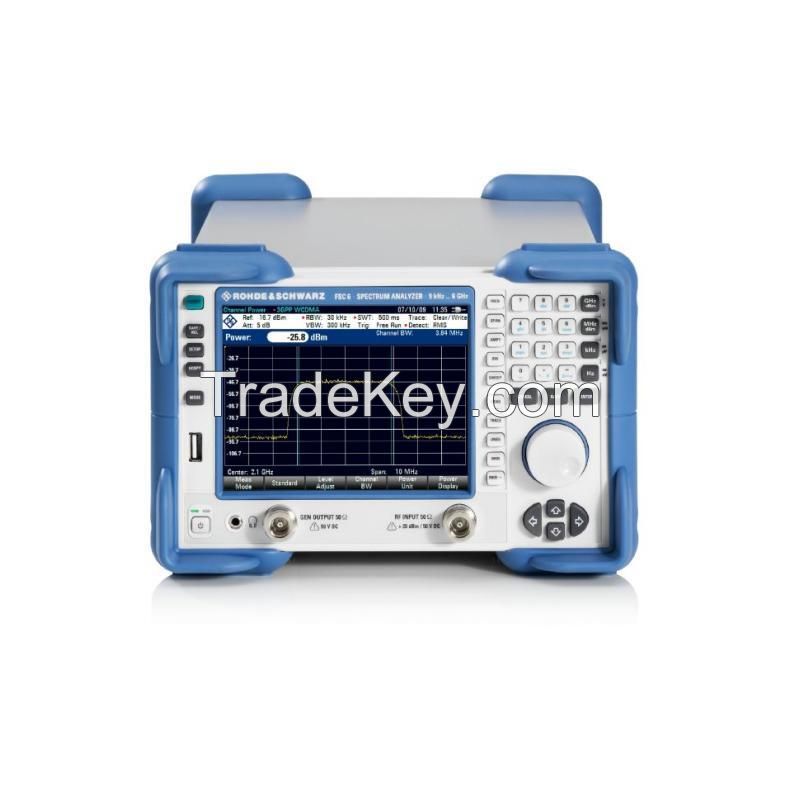

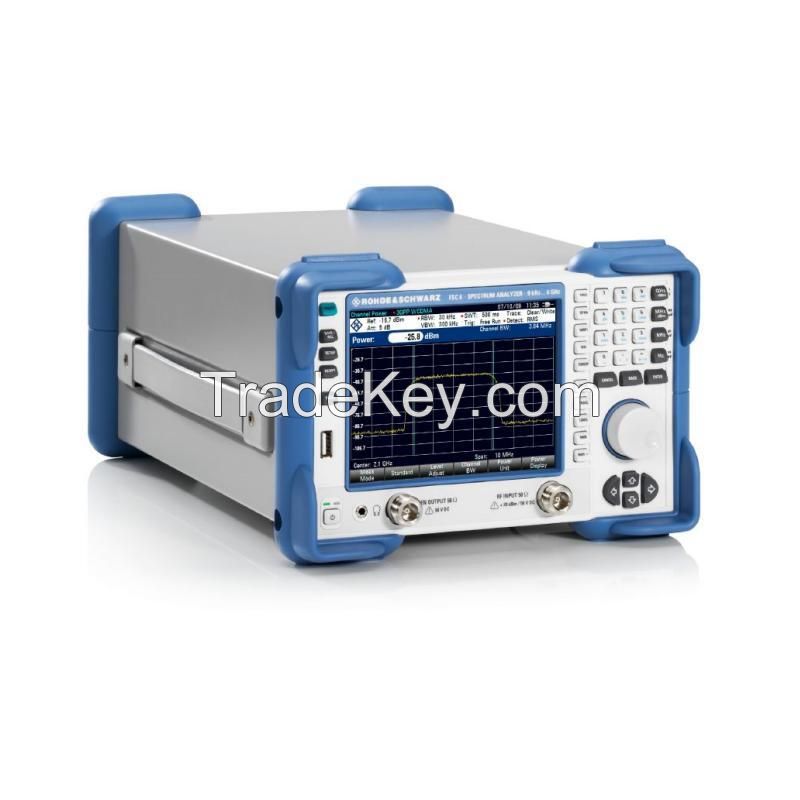

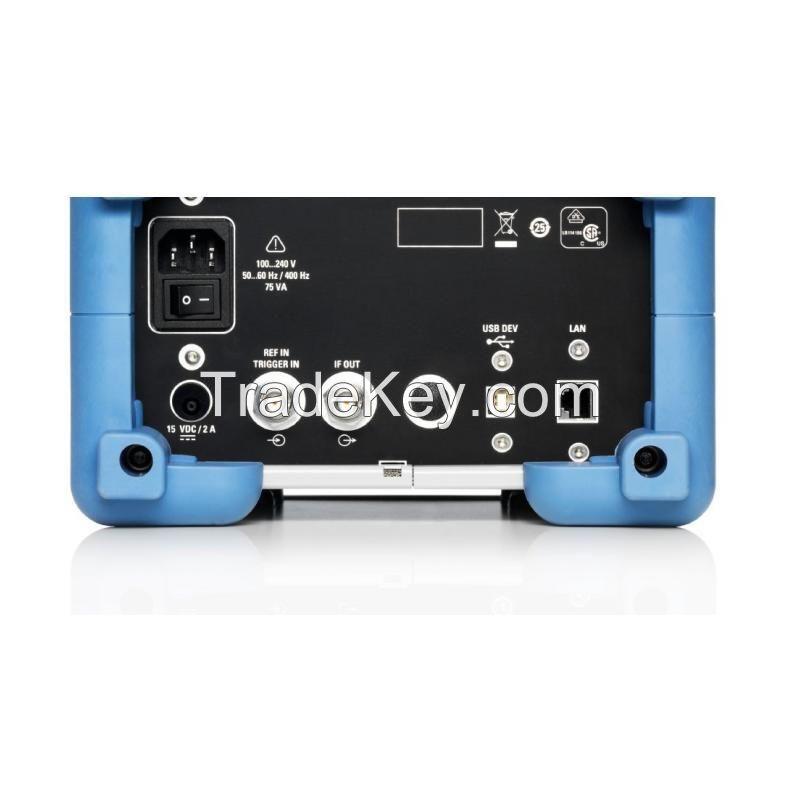

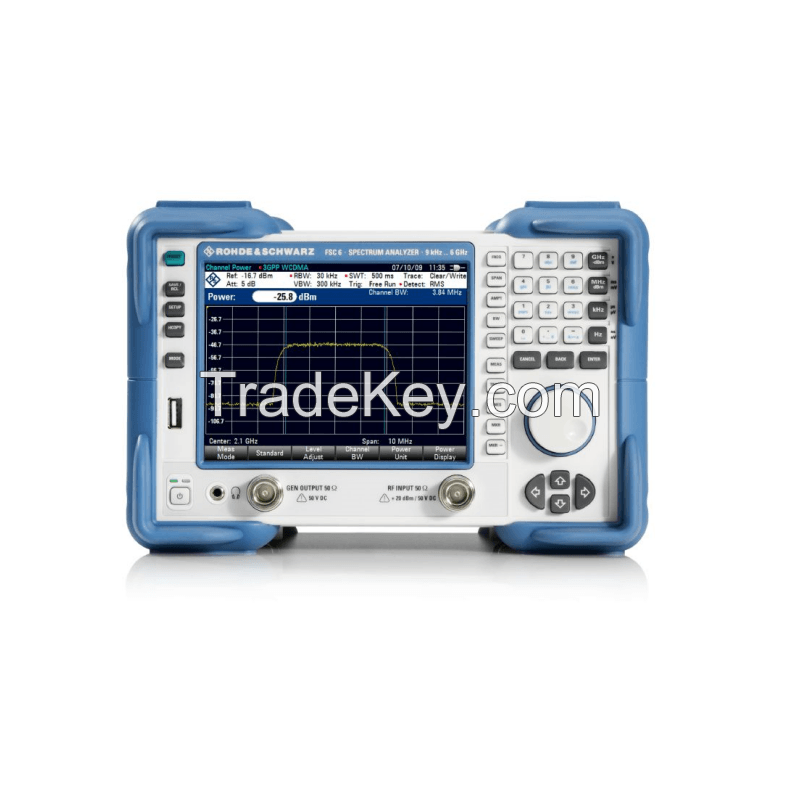

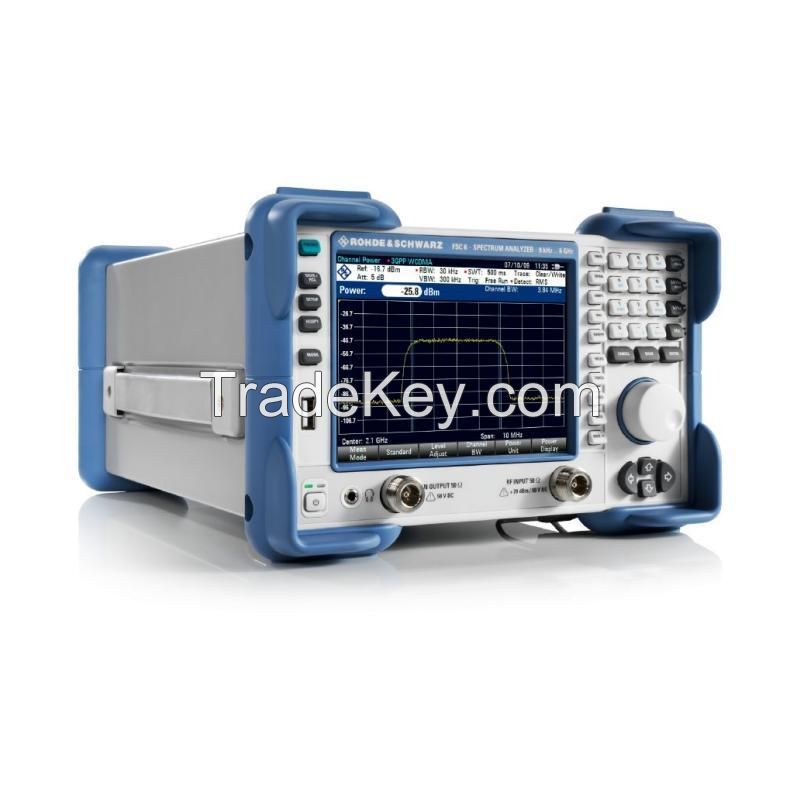

rohde schwarz FSC3 FSC6 9 kHz to 6 GHzSpectrum analyzer

详情

Rohde & Schwarz FSC3 / FSC6 Spectrum Analyzer Professional spectrum analysis compact and cost-efficient Frequency Ranges

• FSC3: 9 kHz 3 GHz

• FSC6: 9 kHz 6 GHz

• Frequency range: 9 kHz to 6 GHz

• Excellent RF performance for standard measurement applications

• Tracking generator models available

• Compact form factor

• Low power consumption

• Frequency Range: 9 kHz 6 GHz

• Resolution Bandwidth (RBW): 10 Hz 3 MHz

• Excellent Sensitivity: < 165 dBm (1 Hz) with preamplifier

• Easy operation with intuitive interface

The R&S® FSC is a compact, cost-efficient spectrum analyzer that provides all essential features expected from a professional-grade Rohde & Schwarz instrument. It supports a wide range of applications—from basic development tasks to production environments, training of RF professionals, and field service or maintenance.

With strong RF performance, reliable accuracy, and a robust design, the R&S® FSC ensures precise, reproducible measurement results. A broad feature set simplifies and accelerates RF product development and testing.

Order number: 1314.3006.03

• Frequency range: 9 kHz 3 GHz

• Phase noise: 95 dBc (1 Hz) at 500 MHz, 30 kHz offset

• DANL @ 1 GHz: 165 dBm

• Input level (max): +15 dBm

• Starting price: On Request

Order number: 1314.3006.13

• Frequency range: 9 kHz 3 GHz

• Phase noise: 95 dBc (1 Hz) at 500 MHz, 30 kHz offset

• DANL @ 1 GHz: 165 dBm

• Input level (max): +15 dBm

• Starting price: On Request

Order number: 1314.3006.06

• Frequency range: 9 kHz 6 GHz

• Phase noise: 95 dBc (1 Hz) at 500 MHz, 30 kHz offset

• DANL @ 1 GHz: 165 dBm

• Input level (max): +15 dBm

• Starting price: On Request

Order number: 1314.3006.16

• Frequency range: 9 kHz 6 GHz

• Phase noise: 95 dBc (1 Hz) at 500 MHz, 30 kHz offset

• DANL @ 1 GHz: 165 dBm

• Input level (max): +15 dBm

• Starting price: On Request
