rohde schwarz ZVH4 ZVH8 Handheld cable and antenna analyzer
For more efficiency in the field


ZVH4: **0 kHz ~ 3.6 GHz
ZVH8: **0 kHz ~ 8 GHz


Key Features
▶ Frequency Range: **0 kHz ~ 3.6 / 8 GHz
▶ Antenna Reflection, DTF, and Cable Loss Evaluation
▶ Simple Setup via Wizard
▶ Automatic Report Generation in HTML and PDF Formats
▶ Replaceable Lithium-Ion Battery
▶ Built-in Bias Power Supply with DC Power


Key facts
**0 kHz up to 3.6 GHz/8 GHz
**0 dB (typ.) dynamic range for transmission measurements
Fast and consistent measurements with the preconfiguration wizard
Remote control via free software or app
Rugged, splash-proof housing for use in the field
*-year warranty extension *5 years VNAs

A handy analyzer for installation and maintenance in the field; easy operation and simple documentation

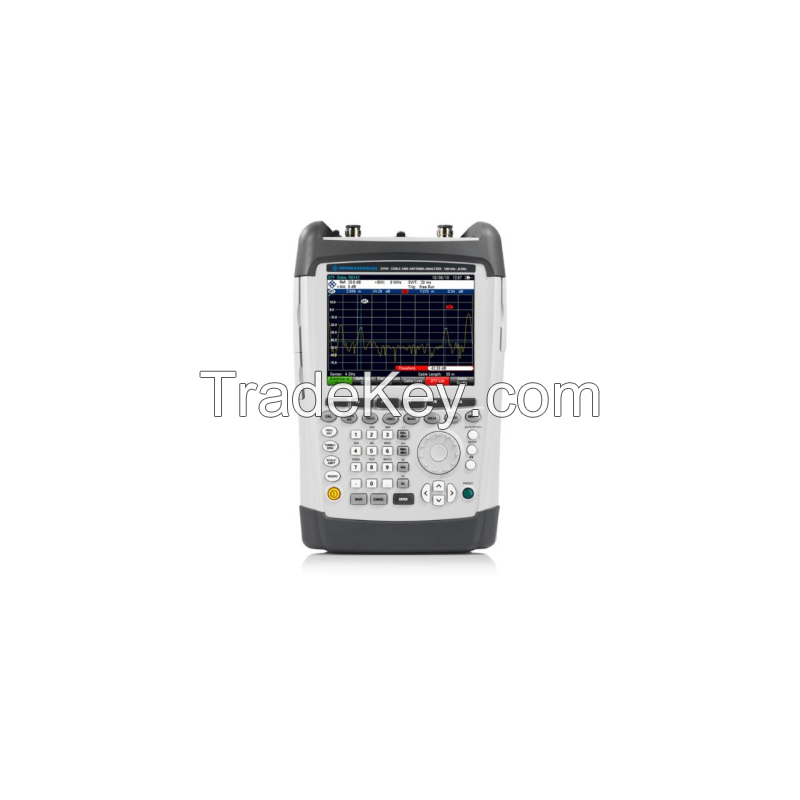

The R&S®ZVH is a rugged, handy cable and antenna analyzer, designed for use in the field. The low weight and simple operation make it indispensable for anyone who needs to make efficient measurements outdoors when installing and maintaining antenna systems.


Features & benefits

Fast and accurate
Fast and accurate measurements
The wizard function lets users preconfigure test setups before going in the field. Pictures and testinstructions can be inserted to aid on-site technicians, speeding up on-site measurements and reducingmeasurement errors from incorrect parameters or setups, The wizard simplifies complex test seguencesand eliminates configuration queries before each test setup

Combination analyzer
The R&SeZVH can be extended by purchasing keycodes licenses. R&SZVH-K*2 lets the instrumentperform *-port vector network analvsis to determine the matching and transmission characteristics forfilters, amplifiers, etc.R&SeZVH-K1 adds spectrum analysis to measure occupied signal bandwidth, fieldstrength and spurious emissions, etc. The analyzer can also handle more functions. it is an ideal, handytool in the field.

Ergonomic design

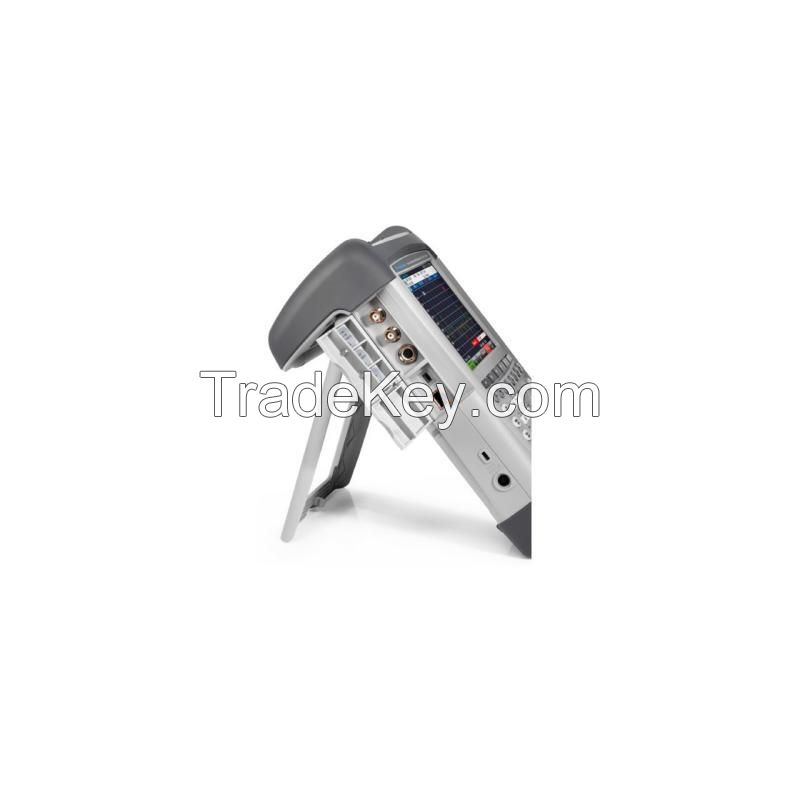

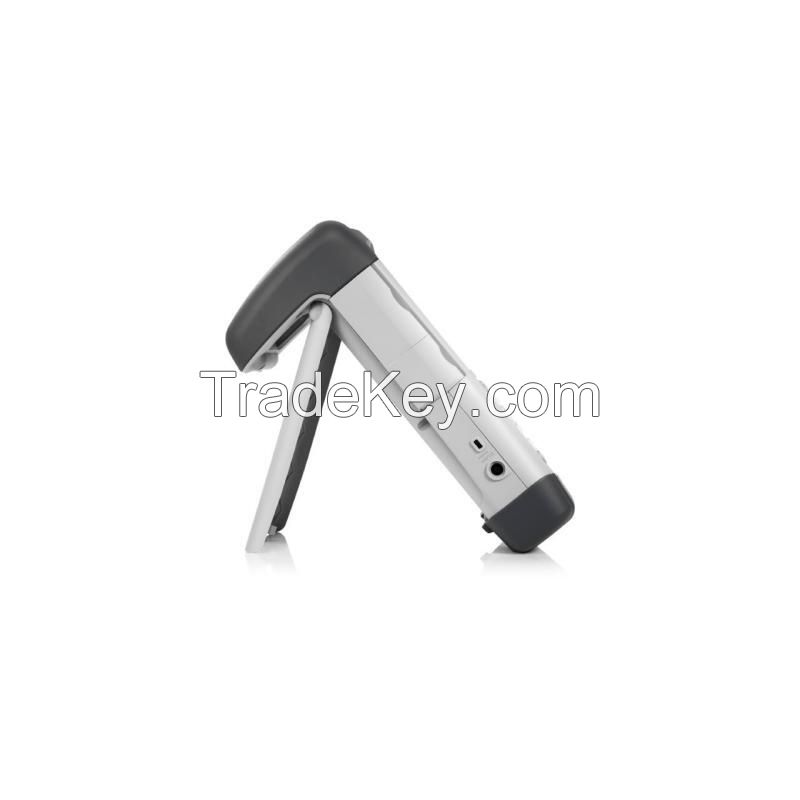

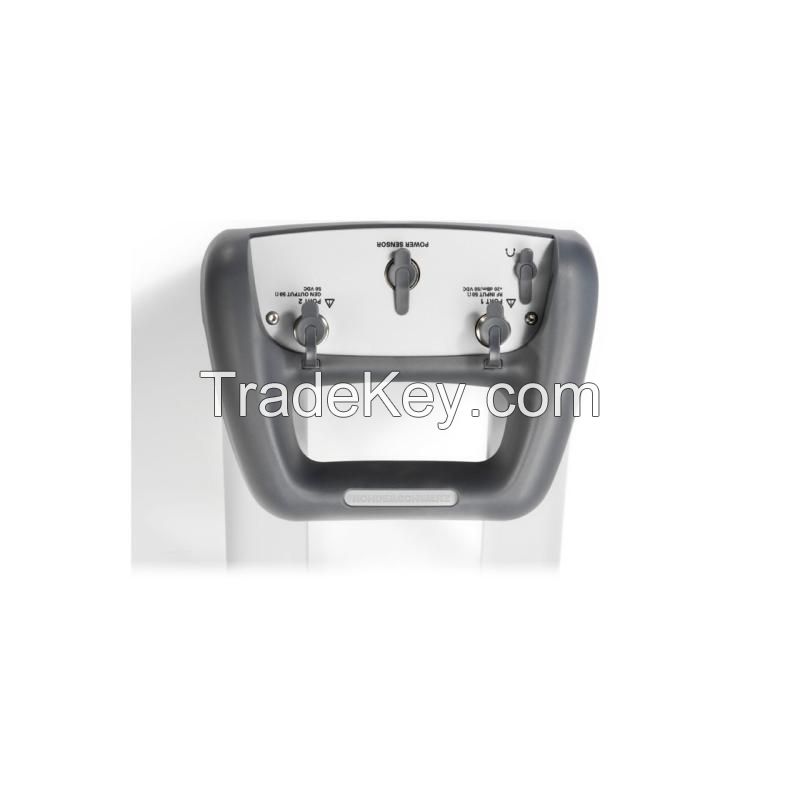

The top handle makes the analyzer easy to carry. lt can also be hung on a tower or equipment rack forhands-free operation on site without the need for additional accessories

Easy remote contro

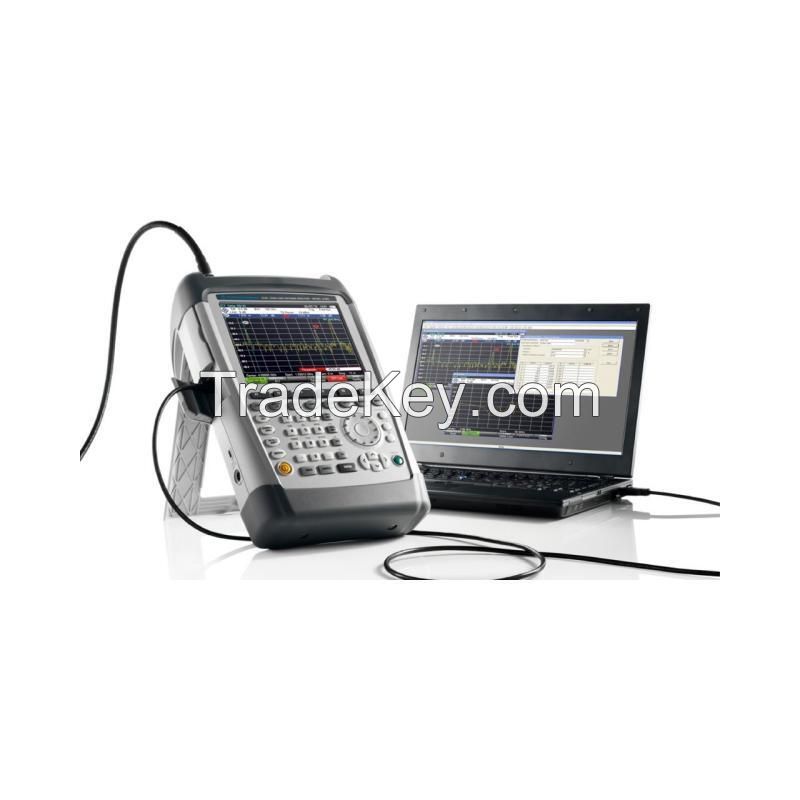

R&Se|nstrumentView is free software that remotely controls the analyzer, preconfigures measurementsettings, performs post analysis and generates reports. lt can be connected to a computer or laptop isvia a USB or LAN interface, Or simplv connect a commercjallv available wireless router to the analvzelvia the LAN interface and download the free R&SeMobileView app on your smartphone or tablet toremotely control the analyzer or transfer files to and from the analyzer.


Available models

Models : R&S®ZVH4         Order number ***9.***0.*4
Ports:      2Ports
Connectors: N-type
Starting at: Price On Request

Models : R&S®ZVH8         Order number ***9.***0.*8
Ports:      2Ports
Connectors: N-type
Starting at: Price On Request
