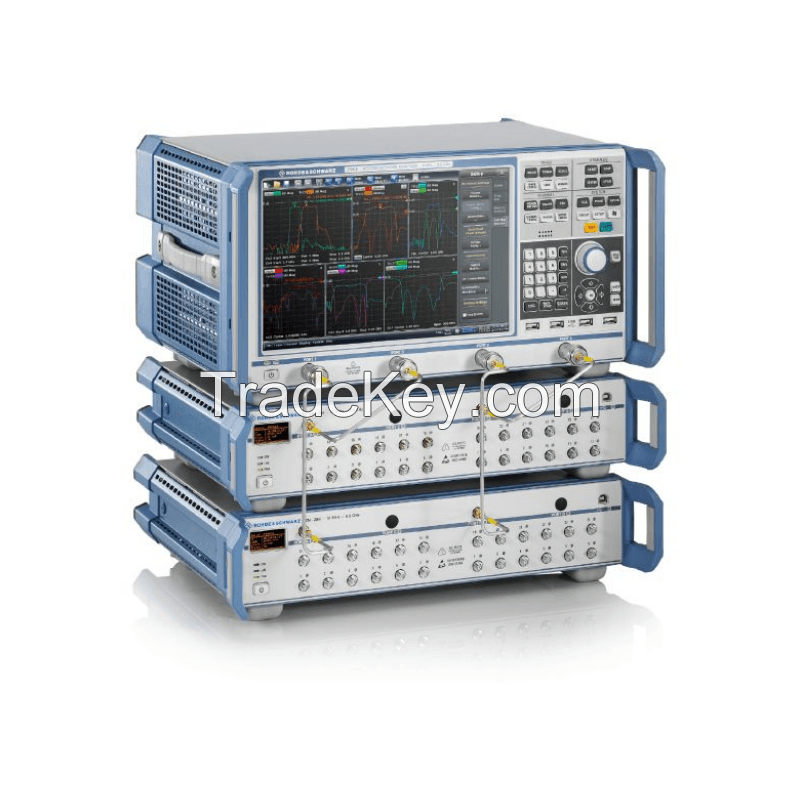

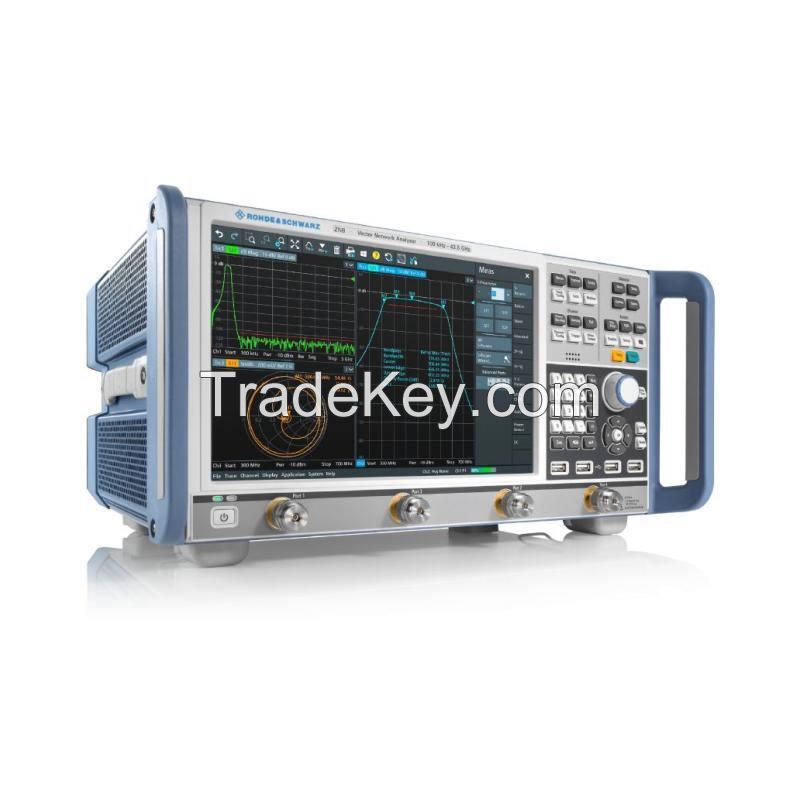

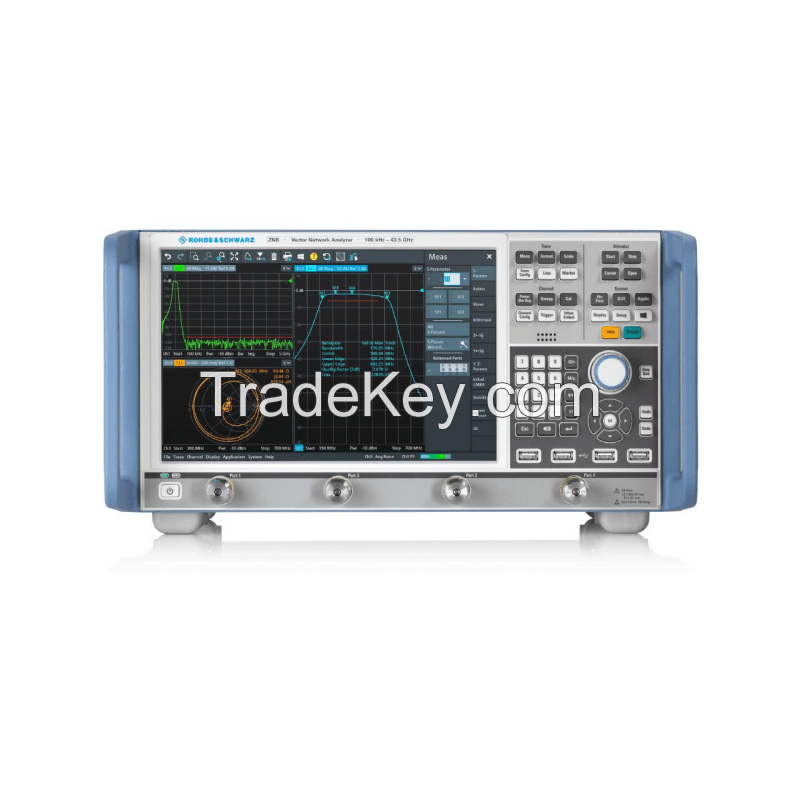

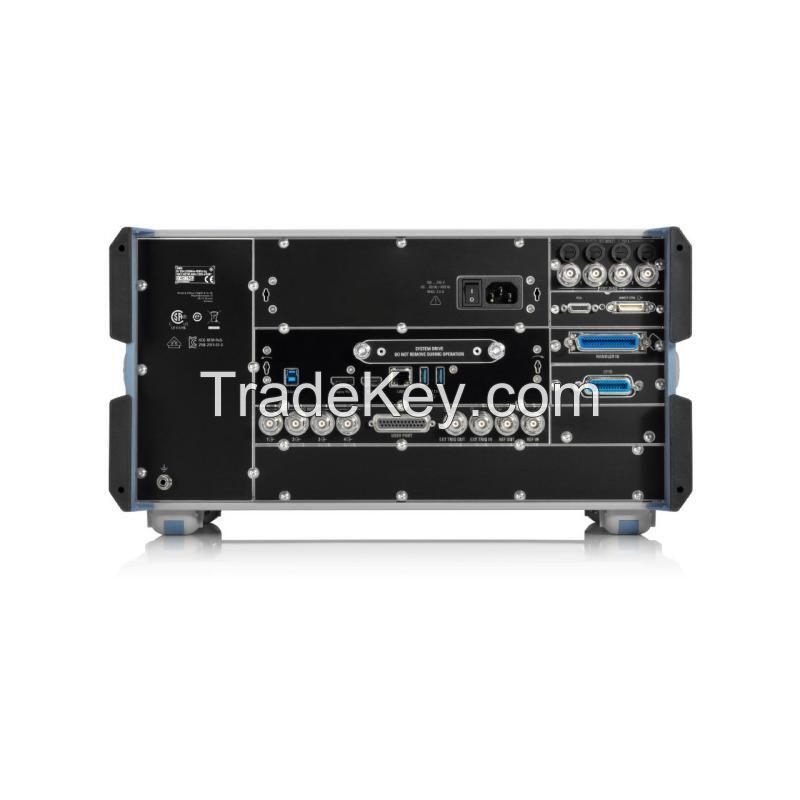

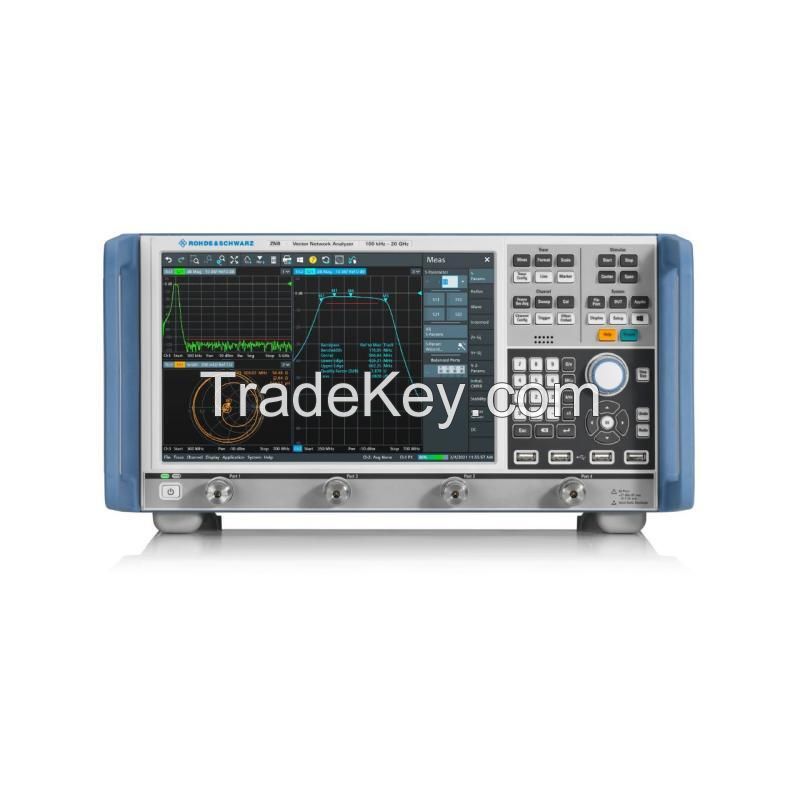

rohde schwarz ZNB4 ZNB8 ZNB20 ZNB26 ZNB43 vector network analyzer

详情

rohde schwarz ZNB4 ZNB8 ZNB*0 ZNB*6 ZNB*3 vector network analyzer
Leading in speed, dynamic range and ease of operation

ZNB4: 9 kHz ~ 4.5 GHz
ZNB8: 9 kHz ~ 8.5 GHz
ZNB*0: **0 kHz ~ *0 GHz
ZNB*6: **0 kHz ~ *6.5 GHz
ZNB*3: **0 kHz ~ *3.5 GHz

Main Features
▶ Frequency Range: 9 kHz ~ 4.5 / 8.5 GHz, **0 kHz ~ *0 / *6.5 / *3.5 GHz
▶ *-Port / *-Port
▶ Dynamic Range: **0 dB (Typical)
▶ High-Speed Scanning: < 2.5 μs/point
▶ Supports Chinese Menu

Key facts
Frequency range from 9 kHz to *3.5 GHz
Two or four ports
Wide dynamic range of up to **0 dB
Short sweep times of 4 ms for **1 points
Wide power sweep range of *8 dB


Leading in speed, dynamic range and ease of operation
Versatile instrument for multiple applications

With frequency ranges of 9 kHz to 4.5/8.5 GHz and **0 kHz to *0/*6.5/*0/*3.5 GHz, the network analyzers are designed for mobile radio, electronic goods as well as aerospace and defense applications and can also be used in high-speed printed circuit board designs. The R&S®ZNB is ideal for developing, producing and servicing RF components such as amplifiers, mixers, filters and cables.


Available models

Models：R&S®ZNB*3    Order number ***4.***0.*2
Ports：    2 ports
Frequency：*3.5 GHz
Connectors：2.*2 mm (m)

Models：R&S®ZNB*3    Order number ***4.***0.*3
Ports：    2 ports
Frequency：*3.5 GHz
Connectors：2.4 mm (m)

Models：R&S®ZNB*3    Order number ***4.***0.*4
Ports：    4 ports
Frequency：*3.5 GHz
Connectors：2.*2 mm (m)

Models：R&S®ZNB*3    Order number ***4.***0.*5
Ports：    4 ports
Frequency：*3.5 GHz
Connectors：2.4 mm (m)
