离岸价格
获取最新报价8.5 USD / Piece
|500 Piece Minimum Order
国家:
China
型号:
PV-NEHP01
离岸价格:
8.5 USD / Piece 获取最新报价
位置:
China
最小订单价格:
8.5 per Piece
最小订单:
500 Piece
包装细节:
Standard packing
交货时间:
10-15 working days
供应能力:
20000 Piece per Week
付款方式:
L/C, T/T
產品組 :
联系人 Mr. bill
Changan, Dongguan, Guangdong

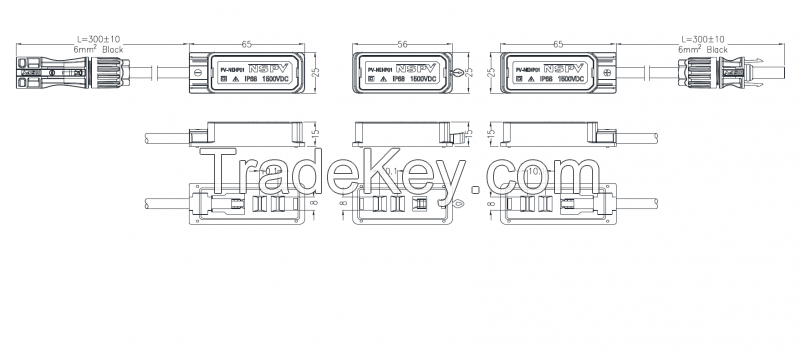

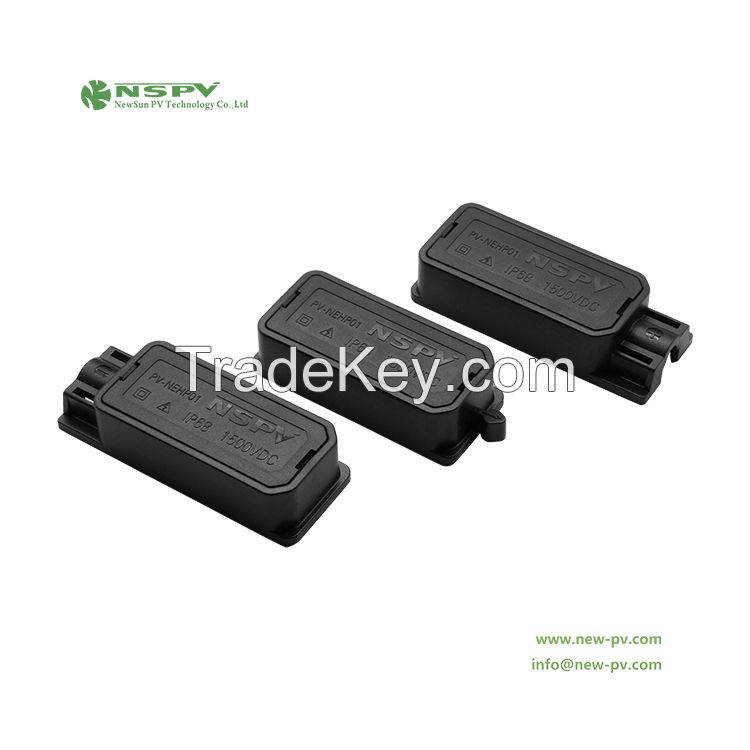

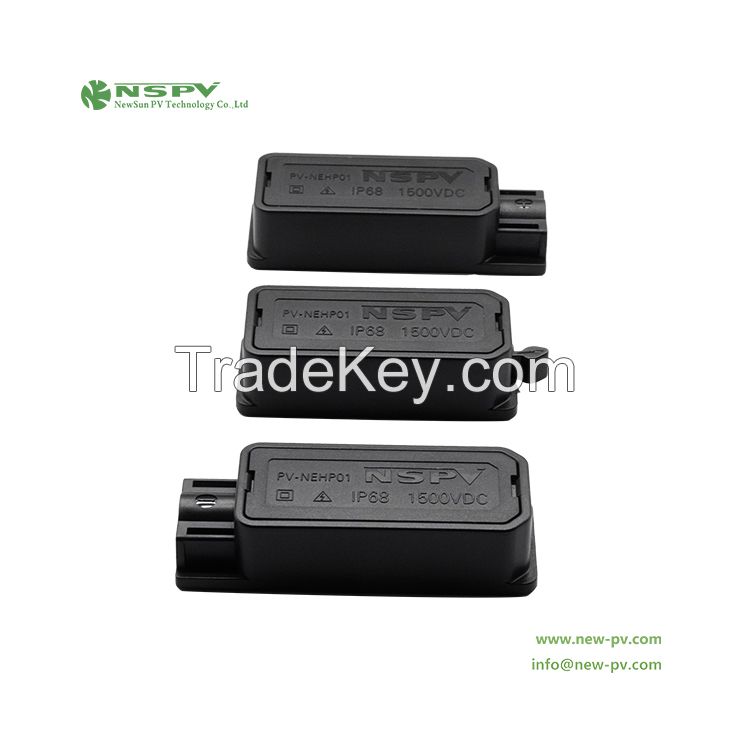

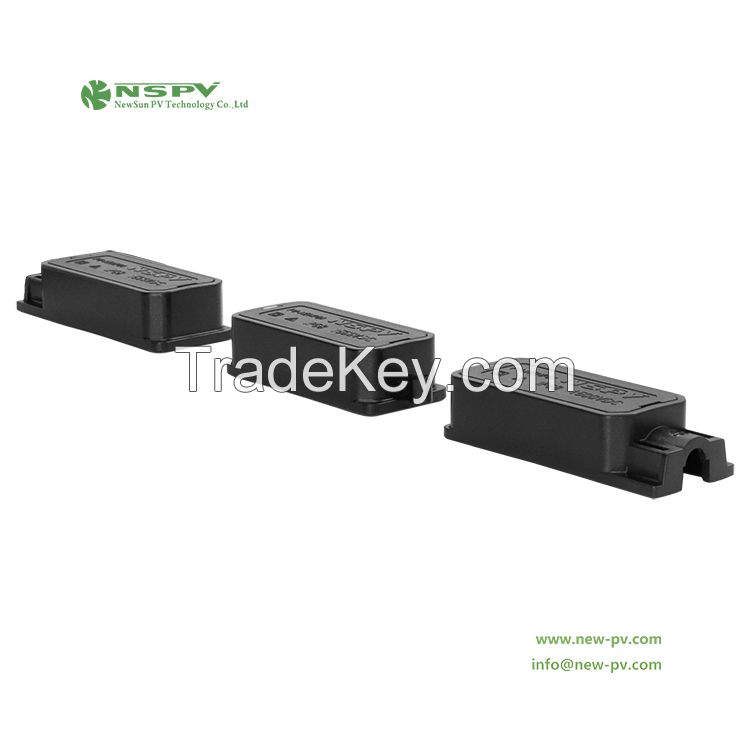

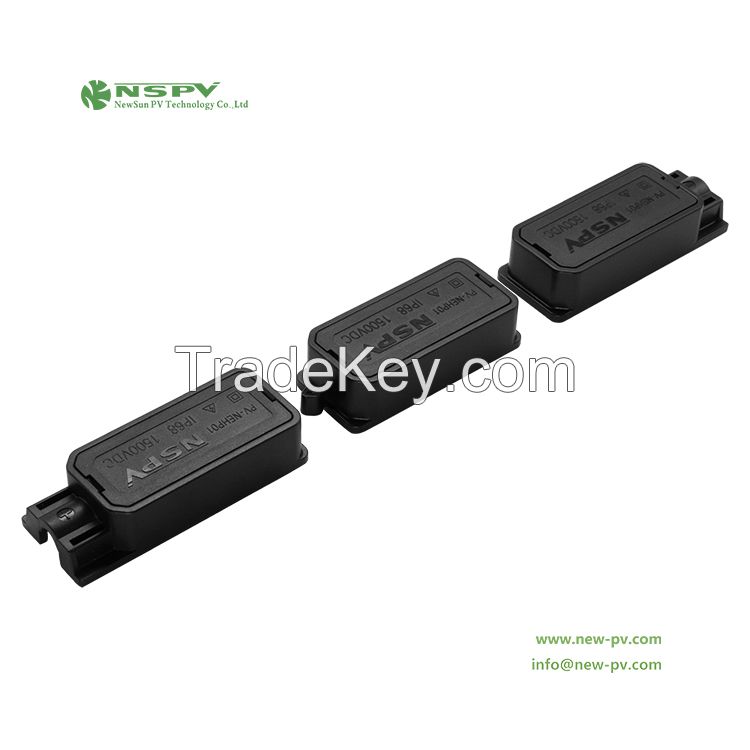

Solar PV junction box PV-NEHP01
| BOX Material | PPE/PA | Flame Class | UL94-V0 |
| Rated current | 30A(With diode) | Ambient temperature range | -40℃…+85℃(IEC) |
| Rated voltage | 1500VDC | Suitable cable cross sections | 6mm2 (10AWG) |
| Test voltage | 8kV(50Hz,Imin) | Diode Number | Each 1PC |
| Typical contact resistance | ≤ 0.25mΩ | Upper limiting temperature | 110℃(IEC) |
| Contact material | Copper, tin plated | Range of cable gland(mm) | O.D.:6.0 |
| Degree of protection | IP68(in potting) | Ribbons size(mm) | Max.8(W)*0.2-0.5(T) |
| Safety degree | II | Connection of bus ribbons | Soldering |
| 国家: | China |
| 型号: | PV-NEHP01 |
| 离岸价格: | 8.5 / Piece 获取最新报价 |
| 位置: | China |
| 最小订单价格: | 8.5 per Piece |
| 最小订单: | 500 Piece |
| 包装细节: | Standard packing |
| 交货时间: | 10-15 working days |
| 供应能力: | 20000 Piece per Week |
| 付款方式: | L/C, T/T |
| 產品組 : | Solar junction box |
